DCU 410E Engine Controller

Description

The DCU 410E is the new base building block to build a supervision system for both variable speeds (propulsion or pumps) or fixed speed (generating set) diesel engines.

Ordering info:

• DCU 410E Engine Controller 1006445
• SDU 410 Safety Shutdown Unit 1006451
• RIO 410 Remote I/O Unit 1006453
• RIO 425 AC Generator Interface 1006457
• RP 410E Remote Panel 1006446
• MK-14 Relay Expansion Unit 1121252

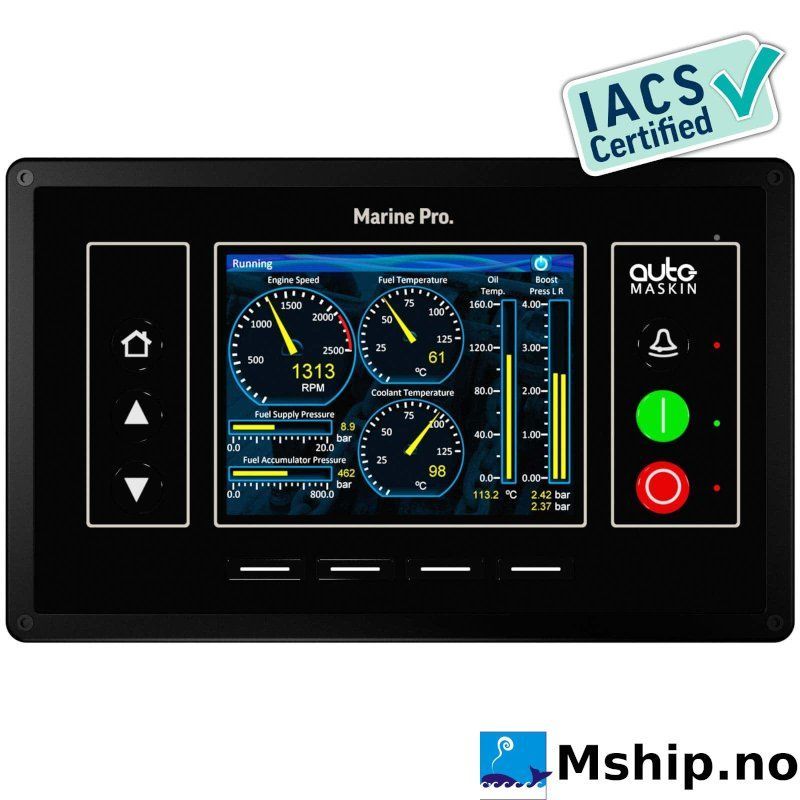

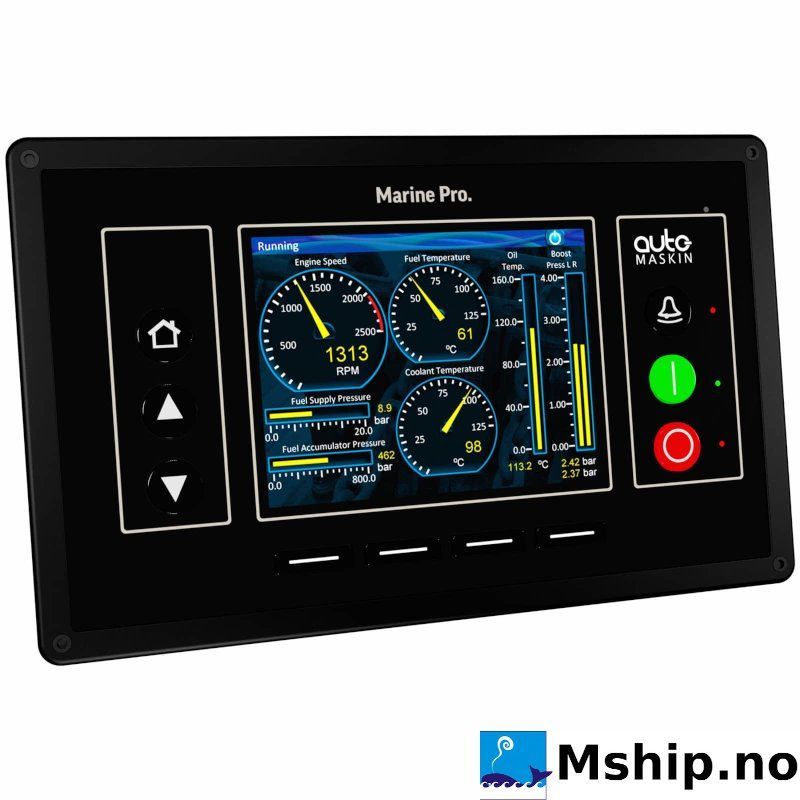

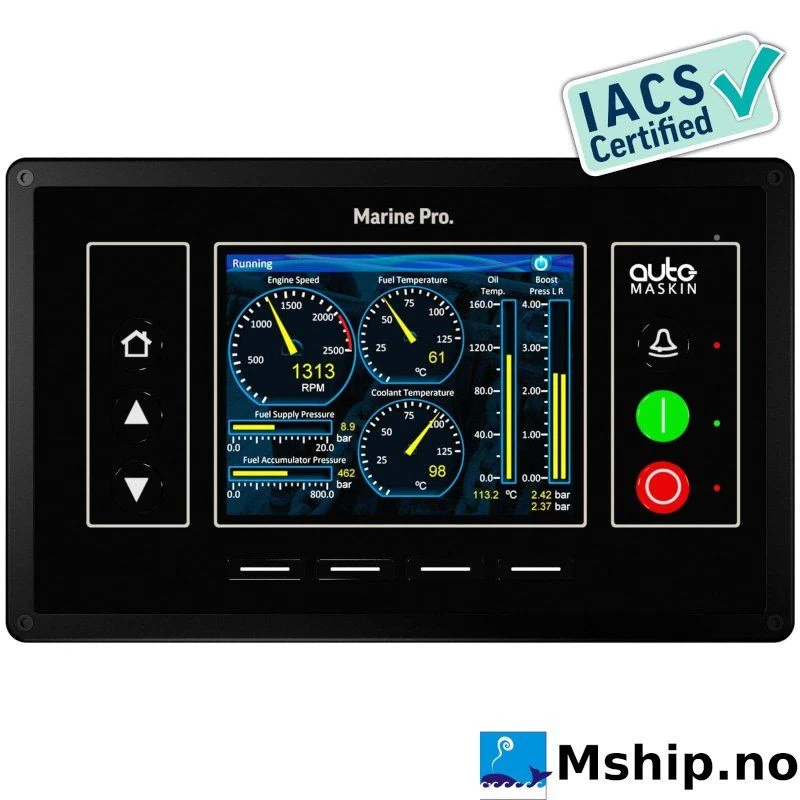

It is a compact unit consisting of a front face utilizing a 5.7” color screen with 70 PPI resolution, which can be mounted to almost any flat surface with a cut-out.

The DCU 410E accepts input data from the engine J1939 CAN bus link plus multiple physical I/O, which can be expanded with expansion units. It can communicate with the ships alarm system on CANopen and Modbus RTU, as well as Modbus TCP on standard Ethernet.

The DCU 410E also provides engine control logic and the outputs required, including but not limited to, pre-lubrication control, start & stop signals, both ETR and ETS, plus remote interfaces for these functions.

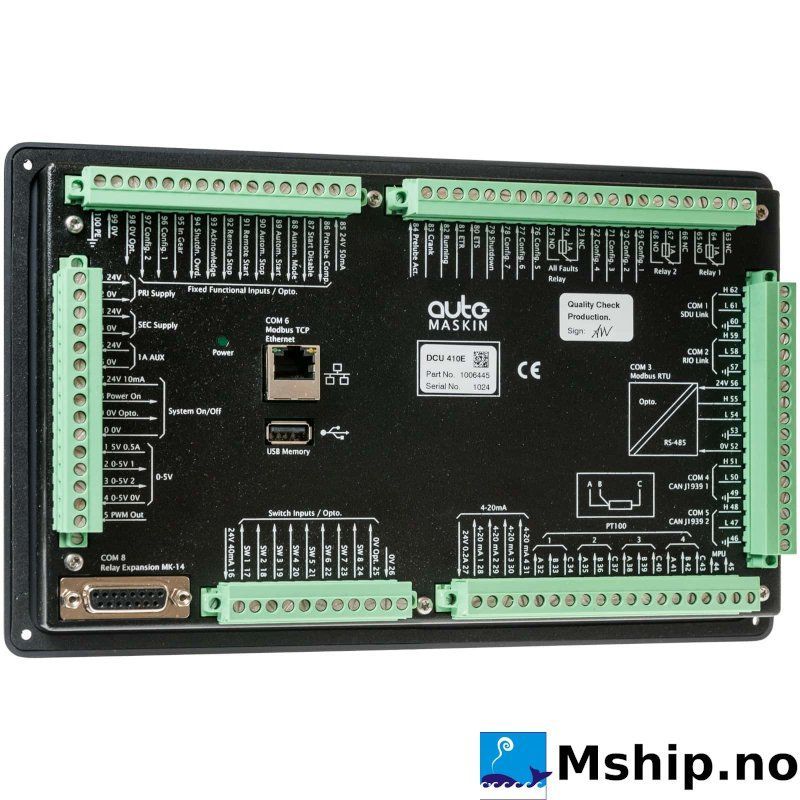

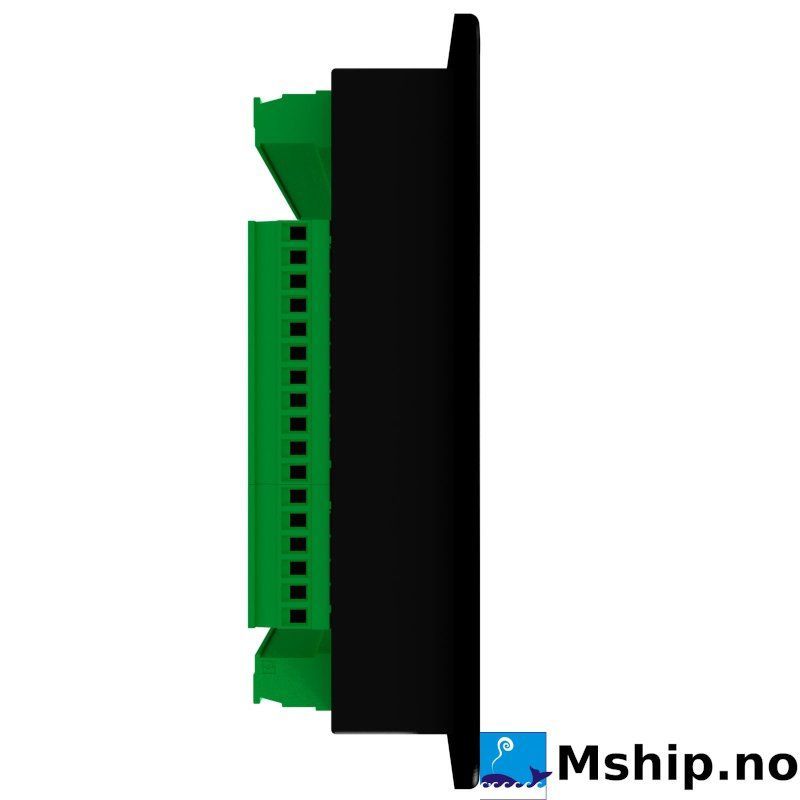

Connections are made via clearly labeled connectors on the rear of the panel and need no special tools.

Finally, the panel is fully prepared for remote panel integration and works seamlessly with the Auto-Maskin remote panel(s).
Why more customers select the DCU 410E

Customers of the DCU 410E find that the simplicity, self-configuration and wide range of functionality are prime reasons to select this model across many applications and uses on board ships that require compliance with global standards. With more than ten languages including Chinese and Russian built in, the information the product displays is easy to understand, leading to better operational decisions.

The ability of the unit to connect to other ships systems without sophisticated software or specialist tools makes it installable and usable by nonexperts. Customizable by a simple laptop with a web browser and a standard Ethernet cable, the password-protected areas allow more flexible configuring or customization when required.

With a literally “plug & play” capability, the DCU 410E configures all other elements of the Marine Pro system automatically.
Same hardware for many applications

    Holds internally up to 50 customer selectable configuration files via a “startup wizard”
    Connectable to multiple engine types and or ships systems
    Suitable for fixed and variable speed applications

No specialist skills for startup or installation

    Pre printed connection function on units
    Simple connectivity – no special tools
    Pre loaded configurations to meet Classification Society rules for UMS

Ability to communicate with whole ship systems

    Ethernet connectivity means plug and play within global standards
    Simple two wire communication via Modbus to Marine Pro I/O expansion modules
    Affordable expandability to create a small ships alarm system

Accountability

    5.7” Color screen means clear, precise indications
    Historical event list
    Displays engine faults in real text

No specialist crew training

    More than ten languages changeable by crew
    Clear color user interfaces
    Icons rather than text

Web based software

    No specialist programming or configuration skills
    Web server built in
    Local or remote updating

Compatible products

The DCU 410E can be attached to the following products:
Remote Panels

    RP 410E Remote Panel

    RP 210E Remote Panel

    RP 220E Remote Panel

    RP 206E Remote Panel

Note! If replacing an old DCU with a new it is recommended to update the RP Firmware as well or make sure it is at the same or higher level than the DCU.
