New Auto-Maskin RP 206E Remote Panel — Manufacturer: Auto-Maskin, Model: RP 206E (Marine Pro 200 / 400 remote panel), Manufacturers part number: 1006478, Performance specification: 5.7" colour capacitive touchscreen 640 x 480, 450 cd/m², 2 touch buttons; IP56 complete enclosure, IP66 front when mounted, Class: DNV cyber security type approval TAA00003H4 (security profile 1, IACS UR E27) – not a general class approval, Weight: 0.8 kg, Amps: 0.4 A typical at 24 VDC, Volt: 8-32 VDC (12 / 24 VDC systems), Working temperature max, celsius degrees: Operating -25 to +70 °C, storage -30 to +85 °C, Remarks: Ethernet 10/100 (IP67 RJ45), USB 2.0 service port, 4 x 12-pin Deutsch DT06-12SA, DIMENSIONs: Approx. 162 x 130 x 67 mm (W x H x D); panel cut-out 155 x 123 mm, access depth 90 mm View larger
Previous Next

Auto-Maskin RP 206E Remote Panel

AM1006478

New product

Auto-Maskin RP 206E monitor-only remote panel for up to two engines, 5.7" touchscreen.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model RP 206E (Marine Pro 200 / 400 remote panel)
Manufacturers part number 1006478
Performance specification 5.7" colour capacitive touchscreen 640 x 480, 450 cd/m², 2 touch buttons; IP56 complete enclosure, IP66 front when mounted
Class DNV cyber security type approval TAA00003H4 (security profile 1, IACS UR E27) – not a general class approval
Weight 0.8 kg
Amps 0.4 A typical at 24 VDC
Volt 8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees Operating -25 to +70 °C, storage -30 to +85 °C
Remarks Ethernet 10/100 (IP67 RJ45), USB 2.0 service port, 4 x 12-pin Deutsch DT06-12SA
DIMENSIONs Approx. 162 x 130 x 67 mm (W x H x D); panel cut-out 155 x 123 mm, access depth 90 mm

More info

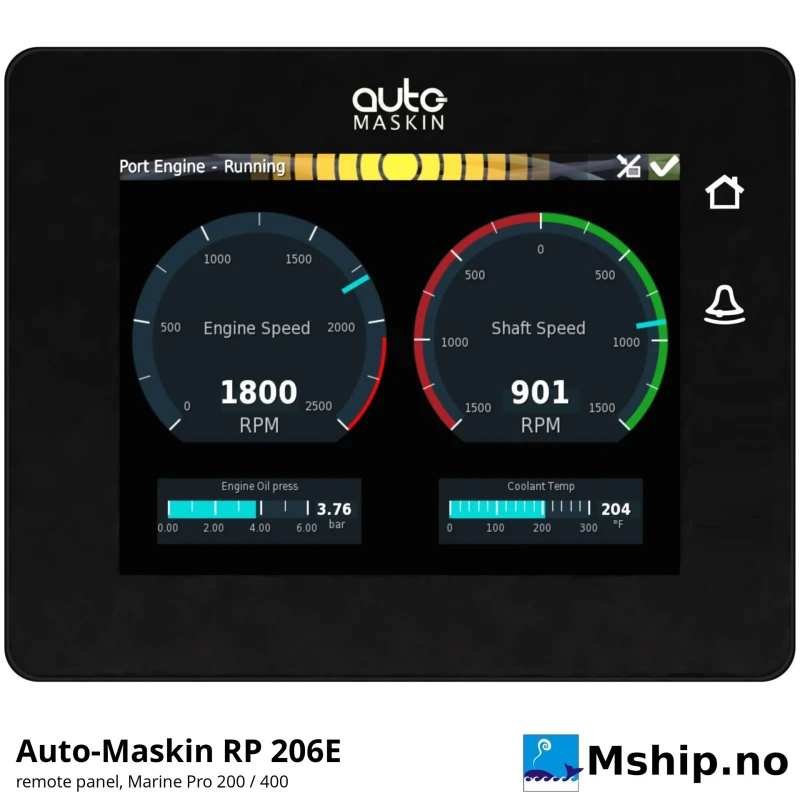

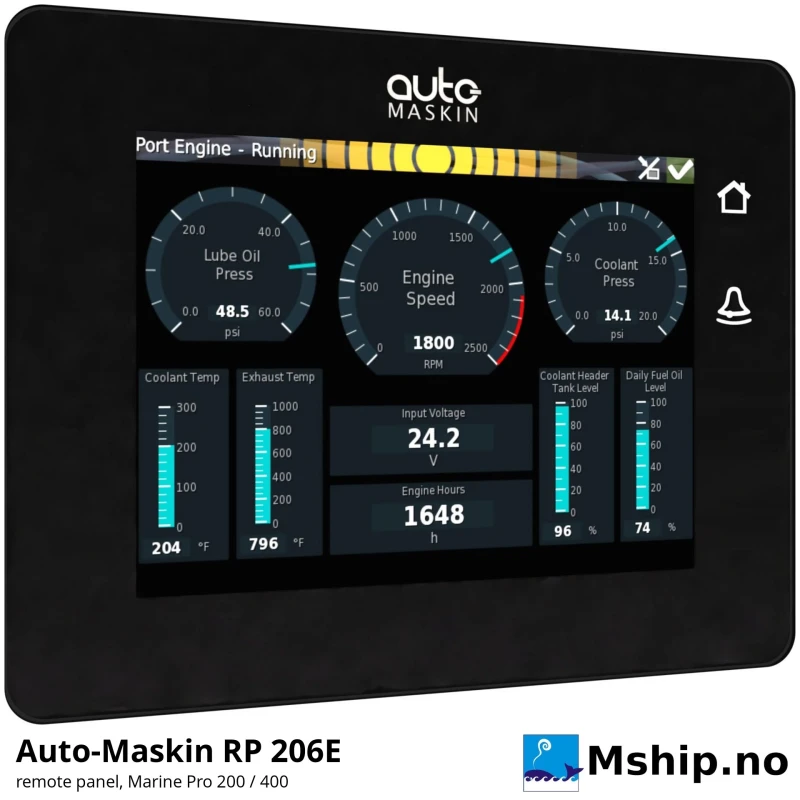

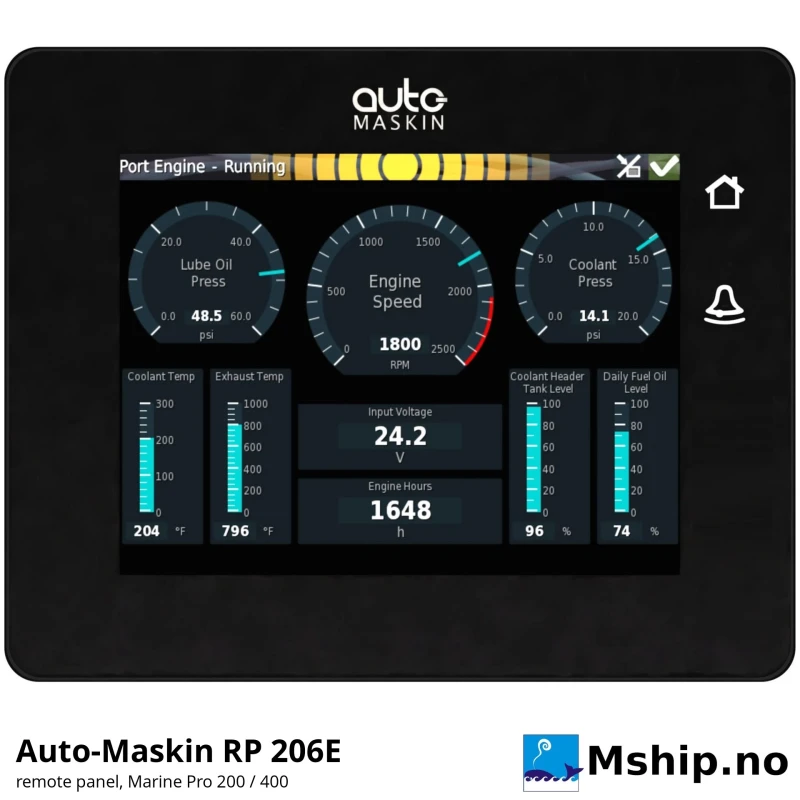

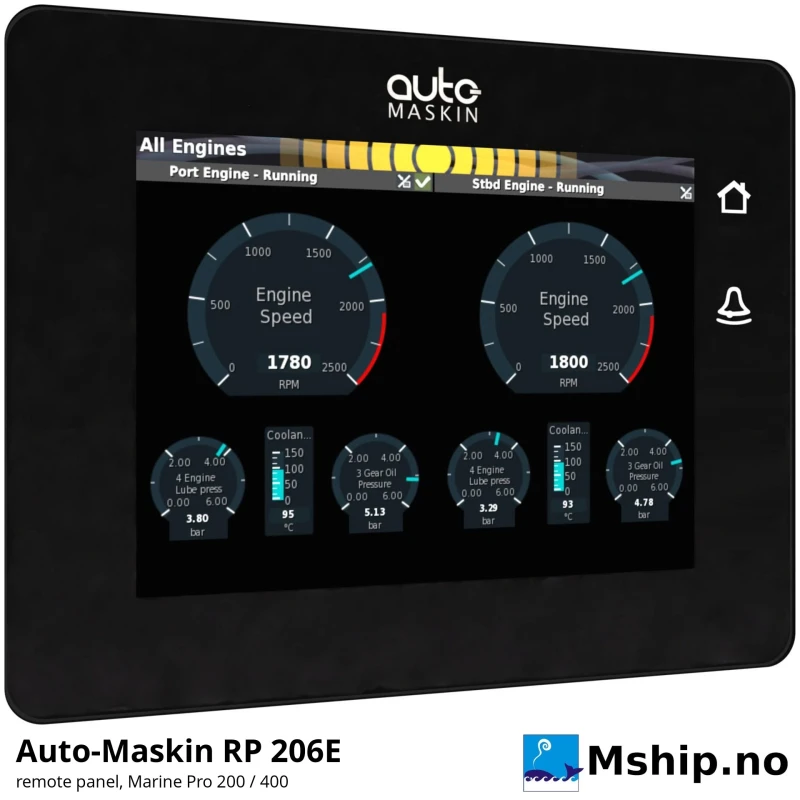

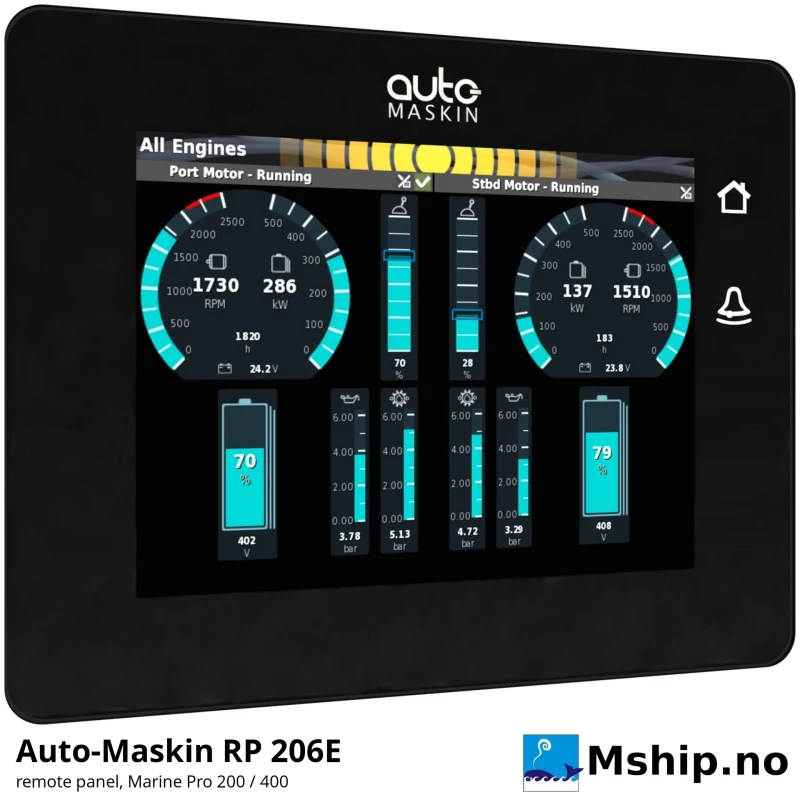

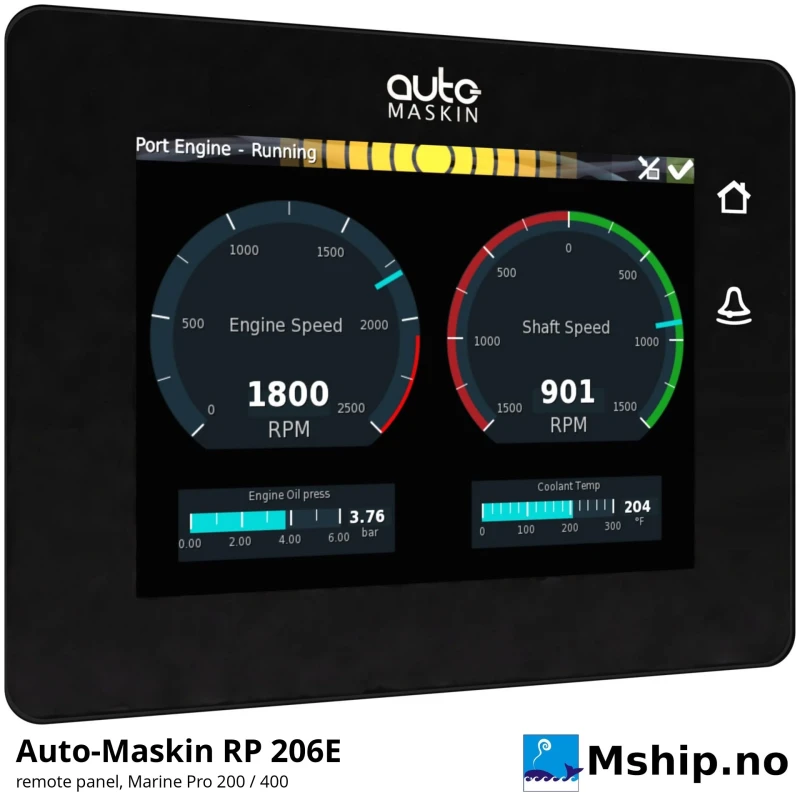

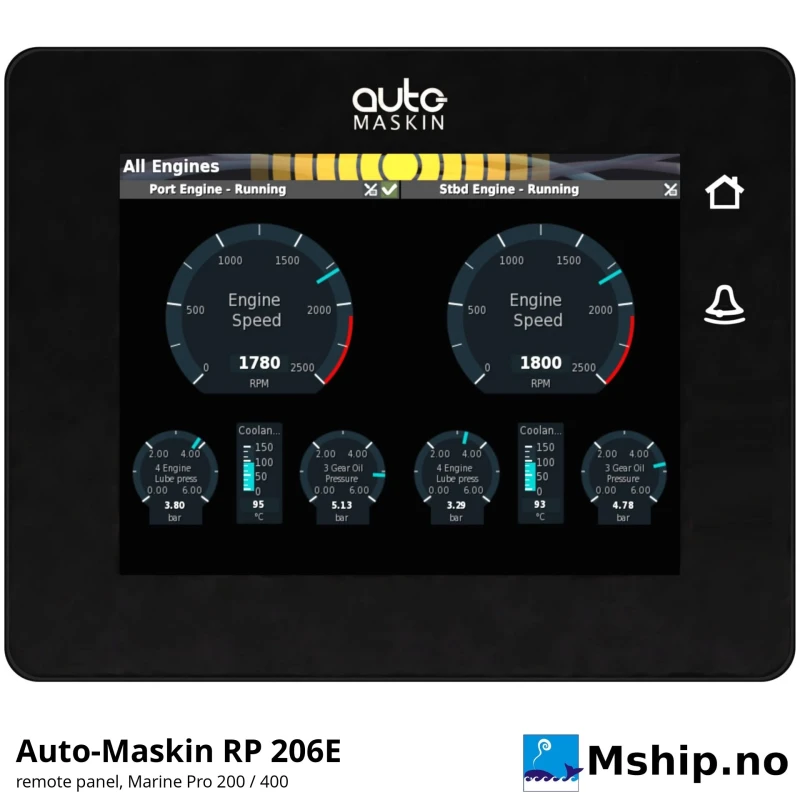

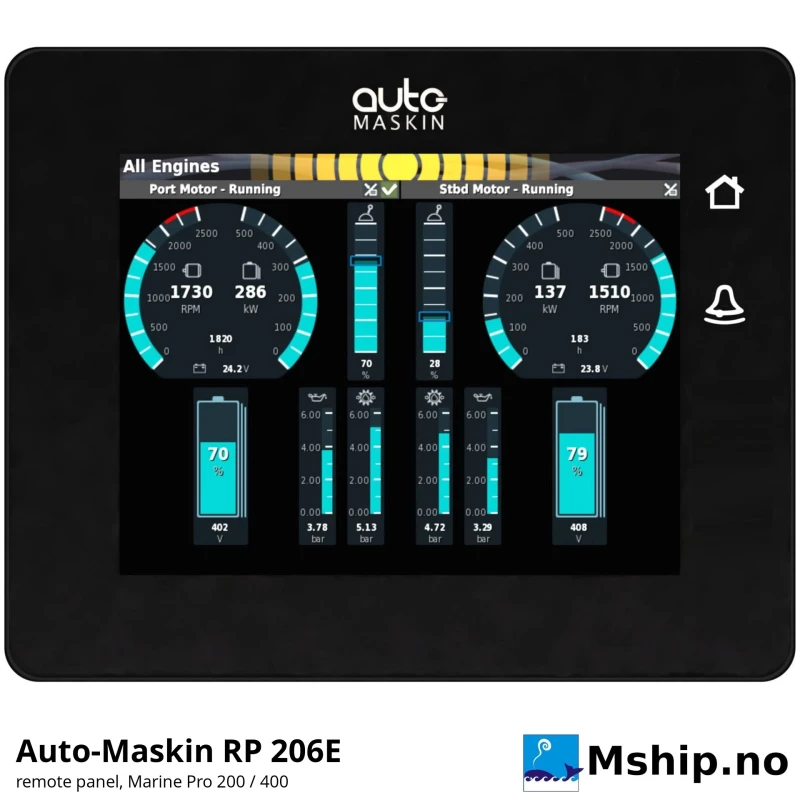

The RP 206E shows engine data, alarms and events from one or two Marine Pro engine controllers, without control functions – monitor-only, which keeps operation secure at secondary positions. It has a sun-readable all-glass colour touchscreen, camera support and built-in troubleshooting aids. It connects to the DCUs with a standard Ethernet cable and configures itself.

  • 5.7" colour capacitive touchscreen 640 × 480, IP56 front and rear
  • Compatible with all 200 and 400 Series DCUs, e.g. the DCU 210E and DCU 410E

Most units are delivered from stock or at short notice from the manufacturer.

Contact us for price and delivery time.

Accessories

Download

200E Series Dimension Drawing (1st gen, -2023)

Auto-Maskin drawing 1006475

Download (99.08k)

400 / 200 Series User's Manual

Auto-Maskin, firmware 3.11P8

Download (2.32M)

400E / 200E / LT Configuration Manual

Auto-Maskin, firmware 3.11P8

Download (4.61M)

200E Series Installation Manual

Auto-Maskin, v1.10 Feb 2026

Download (837.6k)

200E Series Dimension Drawing (2nd gen, 2024-)

Auto-Maskin drawing 1912-HMP527-1 rev. B

Download (2.08M)

EU Declaration of Conformity DCU / RP 200E Series

Auto-Maskin

Download (66.3k)

RP 210E / 220E / 420E / 206E Data Sheet

Auto-Maskin, rev. 15 May 2025

Download (127.06k)

RP 2xxE Product Sheet

Auto-Maskin, v1.3 (2025)

Download (657.14k)

RP 210E Quick Installation Guide

Auto-Maskin (2025)

Download (435.32k)

DNV Type Approval TAA00003H4 (cyber security)

Marine Pro 200 / Marine Watch LT, DNV security profile 1

Download (107.93k)
