New Auto-Maskin DMU 206 J1939 Reader (legacy) — Manufacturer: Auto-Maskin, Model: DMU 206 (discontinued), Manufacturers part number: 1006483, Performance specification: J1939 CAN bus engine data display, 5.7" colour touchscreen 320 x 240; front IP44, Weight: 400 g, Volt: 8-32 VDC (12 / 24 VDC systems), Working temperature max, celsius degrees: Operating +5 to +70 °C, Remarks: Interfaces: J1939 CAN (250 kbps) engine interface, Ethernet / Modbus TCP 10/100, DIMENSIONs: 161 x 132 x 37 mm (W x H x D) View larger

Auto-Maskin DMU 206 J1939 Reader (legacy)

AM1006483

New product

Auto-Maskin DMU 206 J1939 Reader – J1939 engine data display – replaced by DCU 208E + RP 206E.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model DMU 206 (discontinued)
Manufacturers part number 1006483
Performance specification J1939 CAN bus engine data display, 5.7" colour touchscreen 320 x 240; front IP44
Weight 400 g
Volt 8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees Operating +5 to +70 °C
Remarks Interfaces: J1939 CAN (250 kbps) engine interface, Ethernet / Modbus TCP 10/100
DIMENSIONs 161 x 132 x 37 mm (W x H x D)

More info

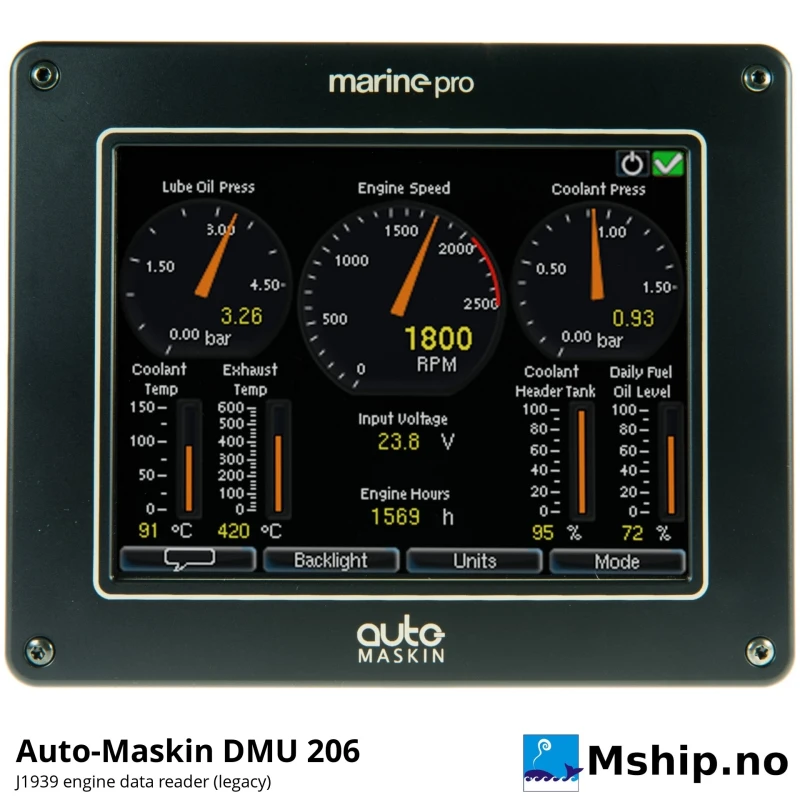

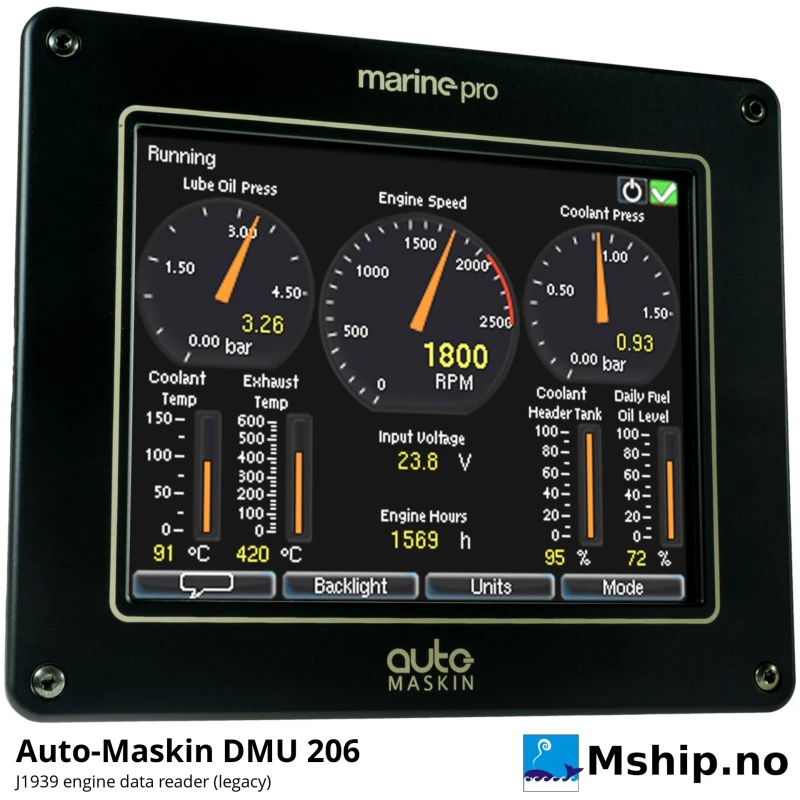

The DMU 206 is a J1939 CAN bus reader: it reads the data an electronic engine sends on the CAN bus and shows instruments, alarm lists and engine diagnostic messages on a 5.7" colour touchscreen.

It is discontinued; Auto-Maskin replaces it with the combination Auto-Maskin DCU 208E Engine Controller and Auto-Maskin RP 206E Remote Panel.

The original Auto-Maskin documentation is in the downloads below.

We can often supply used units and spare parts, or help with the change to the current model. Contact us with your request.

Accessories

Download

DMU 206 Data Sheet

Auto-Maskin, rev. 22 Dec 2015

Download (64.24k)

200 Series Installation and Configuration Manual 2.4.4

Auto-Maskin (1st generation 200 Series)

Download (1.1M)
