Auto-Maskin RP 210 Remote Panel (legacy)

Name: Auto-Maskin RP 210 Remote Panel (legacy)
Brand: AUTO-MASKIN
SKU: AM1006482

Reference: AM1006482

Condition: New product

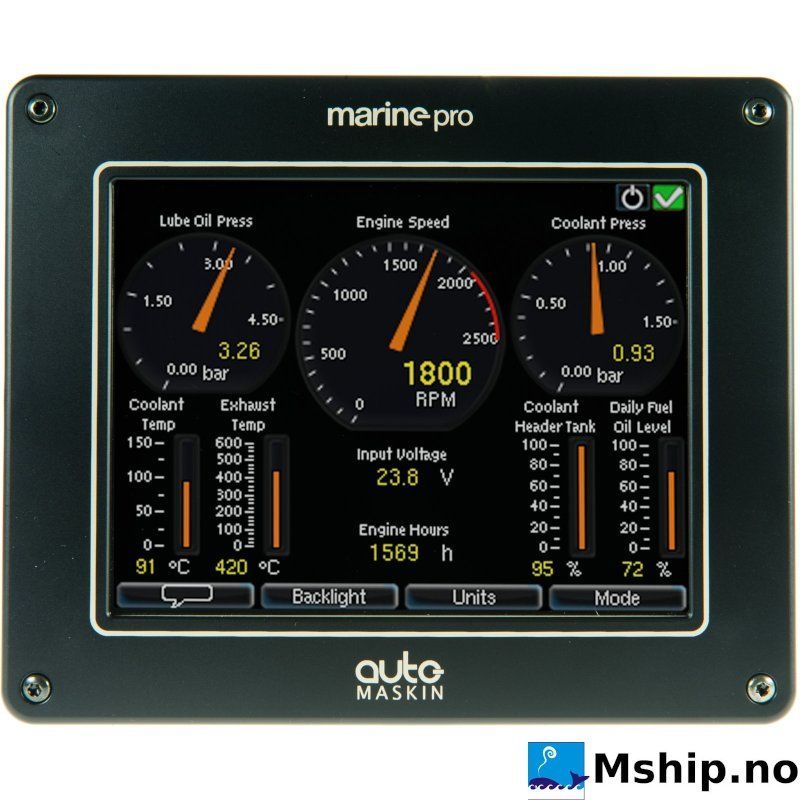

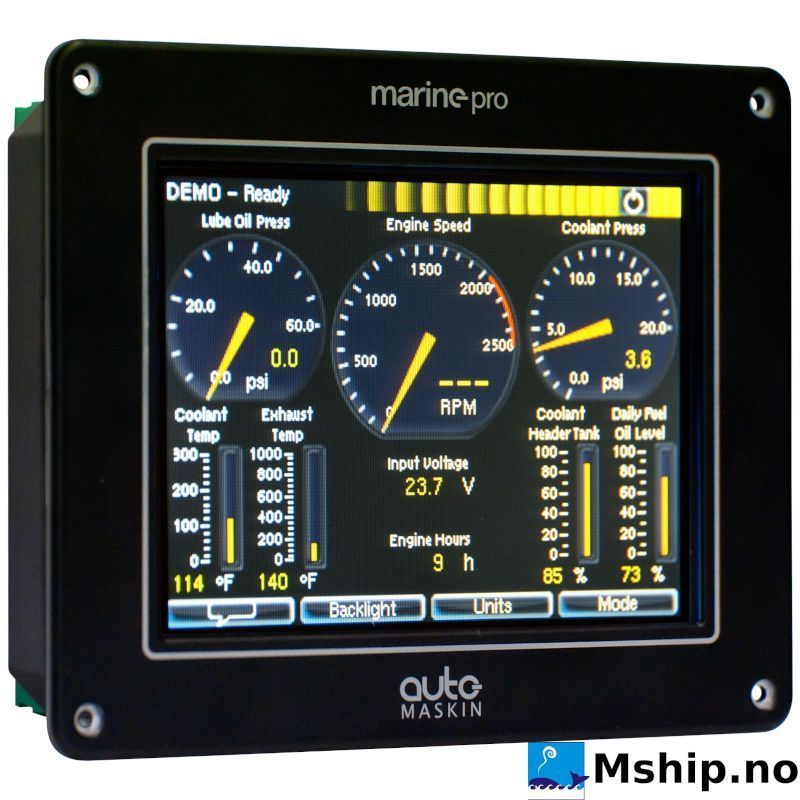

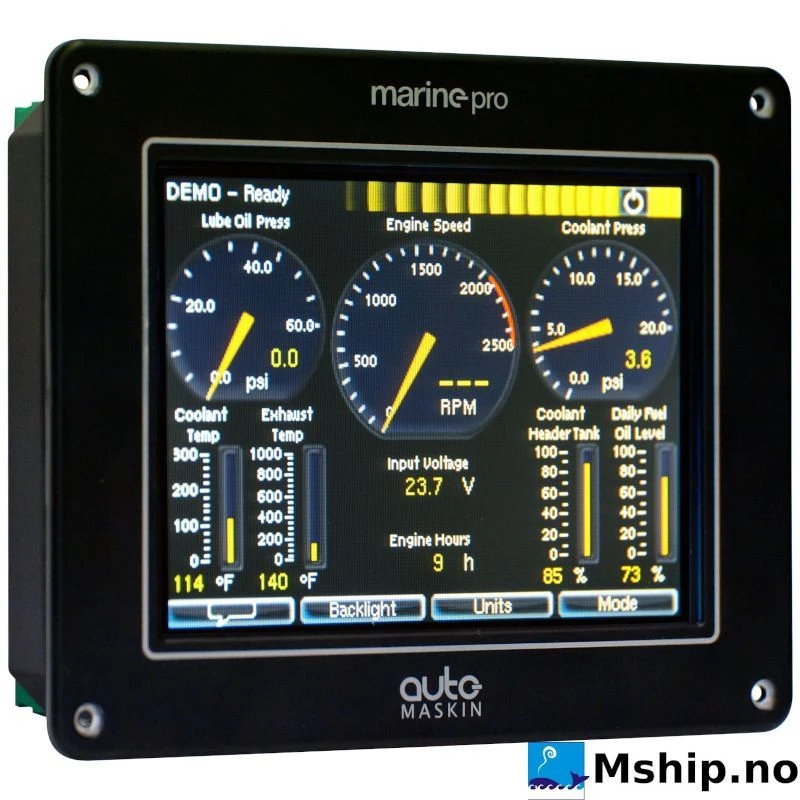

Auto-Maskin RP 210 remote panel, first-generation Marine Pro 200 – replaced by RP 210E.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Auto-Maskin
Model	RP 210 (Marine Pro 200 remote panel, 1st generation – discontinued)
Manufacturers part number	1006482
Performance specification	5.7" colour touchscreen remote panel; front IP44; replaced by RP 210E
Weight	400 g
Volt	8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees	Operating +5 to +70 °C, storage -30 to +80 °C
Remarks	Ethernet connection to DCU 210 / Marine Pro 400 controllers and DMU 206
DIMENSIONs	161 x 132 x 37 mm (W x H x D); cut-out 150 x 120 mm, required depth 70 mm

More info

The RP 210 is the first-generation remote panel for Marine Pro 200 and 400 Series engine controllers and the DMU 206 CAN bus reader, connected to the DCU with a standard Ethernet cable. It is no longer produced; Auto-Maskin's replacement is the RP 210E.

When a new E-series DCU is combined with an old RP 210, the old DCU configuration file should be used to avoid unknown messages on the remote panel. The original data sheet and manuals are below.
