Auto-Maskin DCU 210 Engine Controller (legacy)

Name: Auto-Maskin DCU 210 Engine Controller (legacy)
Brand: AUTO-MASKIN
SKU: AM1006481

Reference: AM1006481

Condition: New product

Auto-Maskin DCU 210 engine controller, first-generation Marine Pro 200 – replaced by DCU 210E.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Auto-Maskin
Model	DCU 210 (Marine Pro 200, 1st generation – discontinued)
Manufacturers part number	1006481
Performance specification	5.7" colour touchscreen; front IP44; replaced by DCU 210E

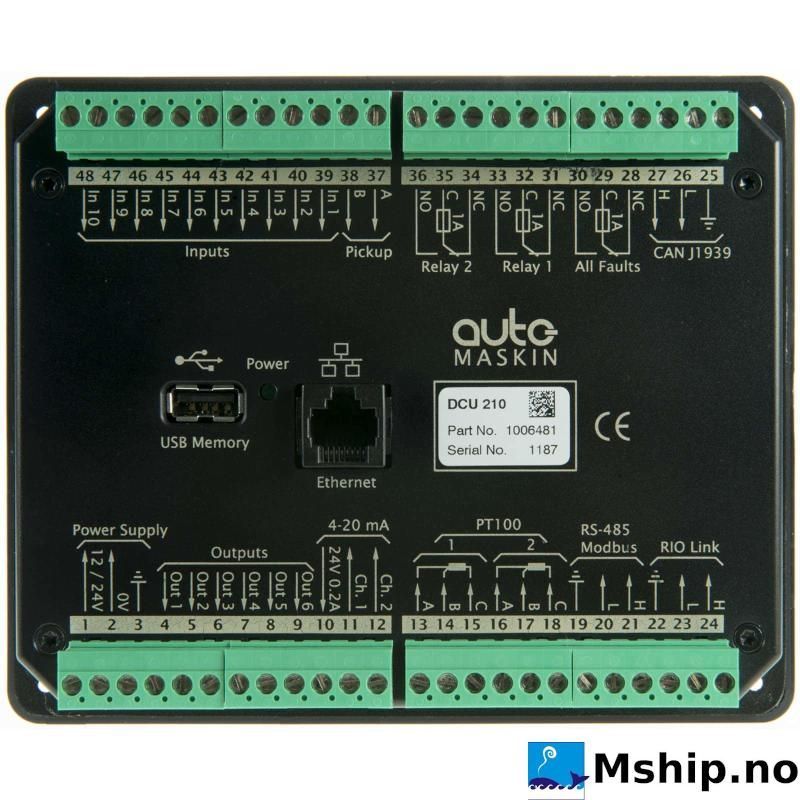

Other	Inputs: digital inputs, 2 x 4-20 mA, 2 x PT100 (0-800 °C). Outputs: digital outputs, relay output (1 A)
Weight	400 g
Volt	8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees	Storage -30 to +80 °C
Remarks	Interfaces: CAN SAE J1939 (250 kbps), Modbus RTU 19 200 baud, Modbus TCP 100 Mbps (Ethernet)
DIMENSIONs	161 x 132 x 37 mm (W x H x D); cut-out 150 x 120 mm, required depth 70 mm

More info

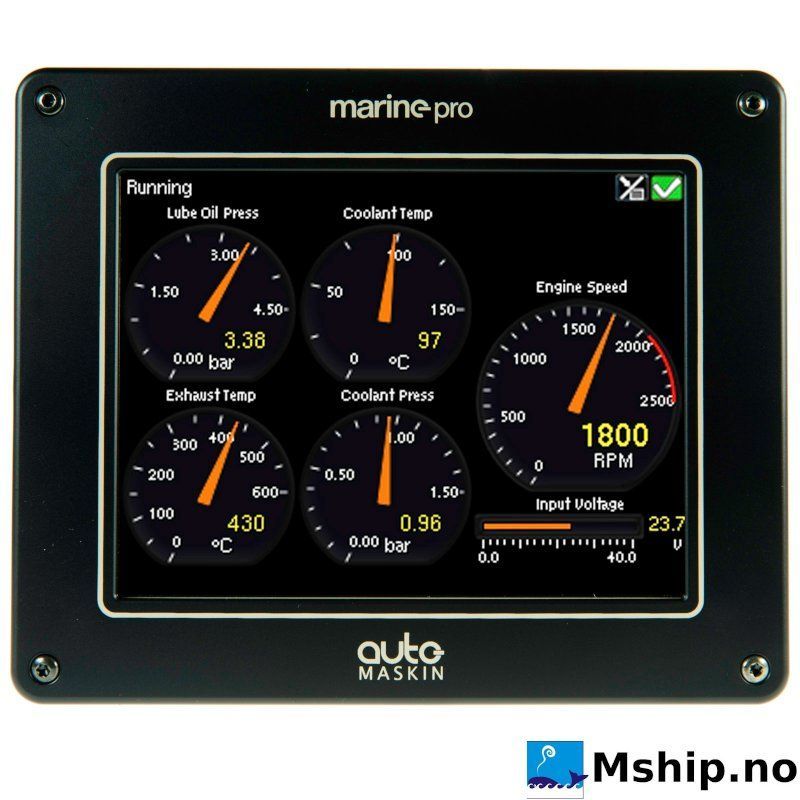

The DCU 210 is the first-generation Marine Pro 200 engine panel: a stand-alone unit with a 5.7" colour touchscreen for control and monitoring of one engine, with a J1939 CAN interface, Modbus and Ethernet. It is no longer produced; Auto-Maskin's replacement is the DCU 210E.

We keep the original data sheet and manuals for the DCU 210 below, and can often help with used units or the change to a DCU 210E. Remote panel for the DCU 210: RP 210.
