New Auto-Maskin DCU 208 Engine Controller (legacy) — Manufacturer: Auto-Maskin, Model: DCU 208 (Marine Pro 200, 1st generation – discontinued), Manufacturers part number: 1006480, Performance specification: Engine controller without display, operated from a remote panel; front IP44; replaced by DCU 208E, Other: Inputs: digital inputs, 2 x 4-20 mA, 2 x PT100 (0-800 °C), magnetic pickup. Outputs: digital outputs, relay output (1 A), Weight: 340 g, Volt: 8-32 VDC (12 / 24 VDC systems), Working temperature max, celsius degrees: Operating +5 to +70 °C, Remarks: Interfaces: CAN SAE J1939 (250 kbps), Ethernet / Modbus TCP 100 Mbps, Modbus RTU 19 200 baud, DIMENSIONs: 161 x 132 x 37 mm (W x H x D) View larger
Previous Next

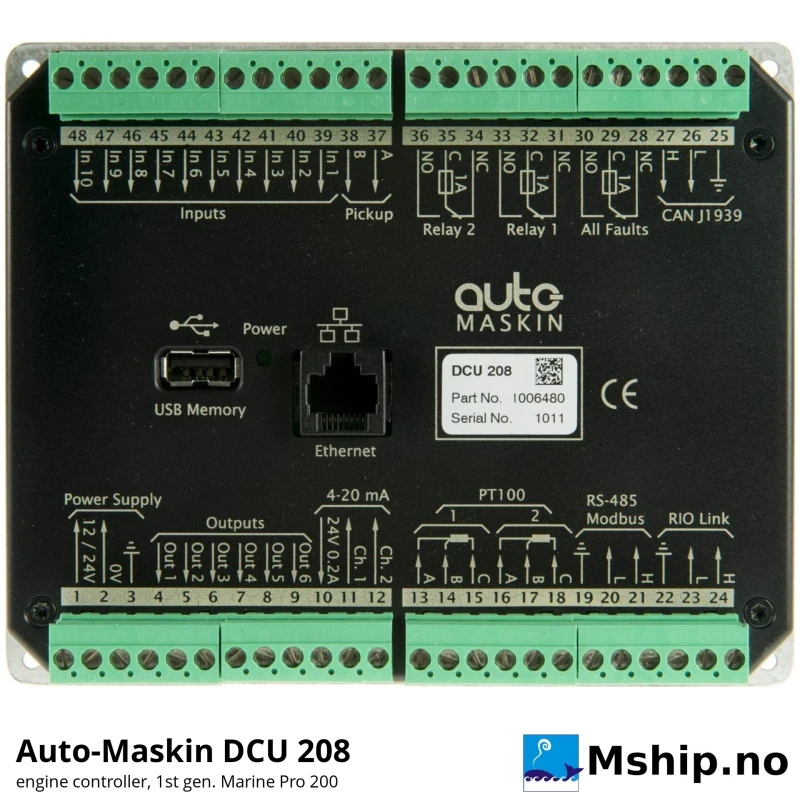

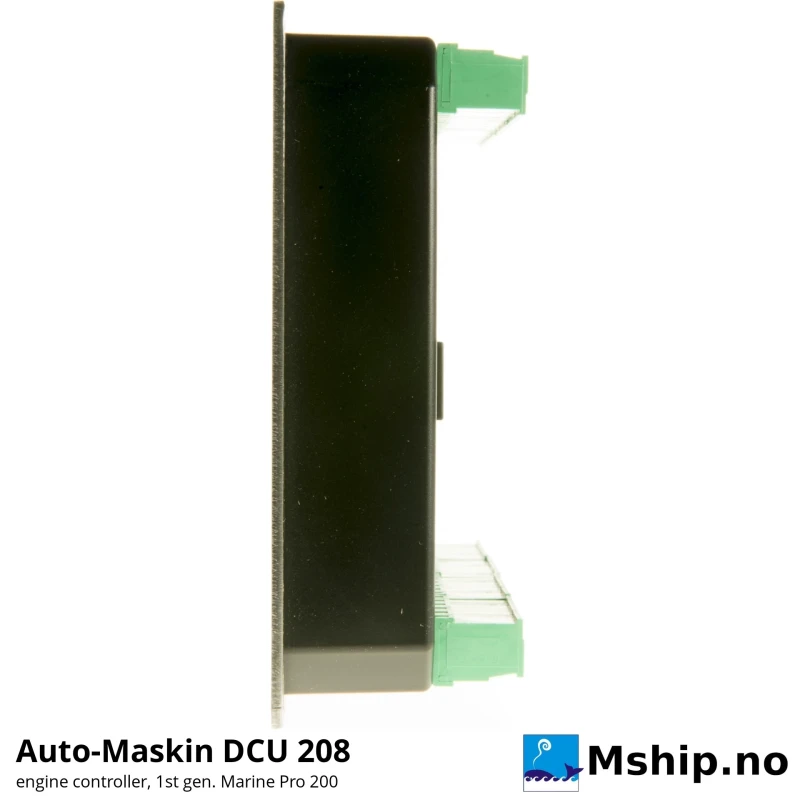

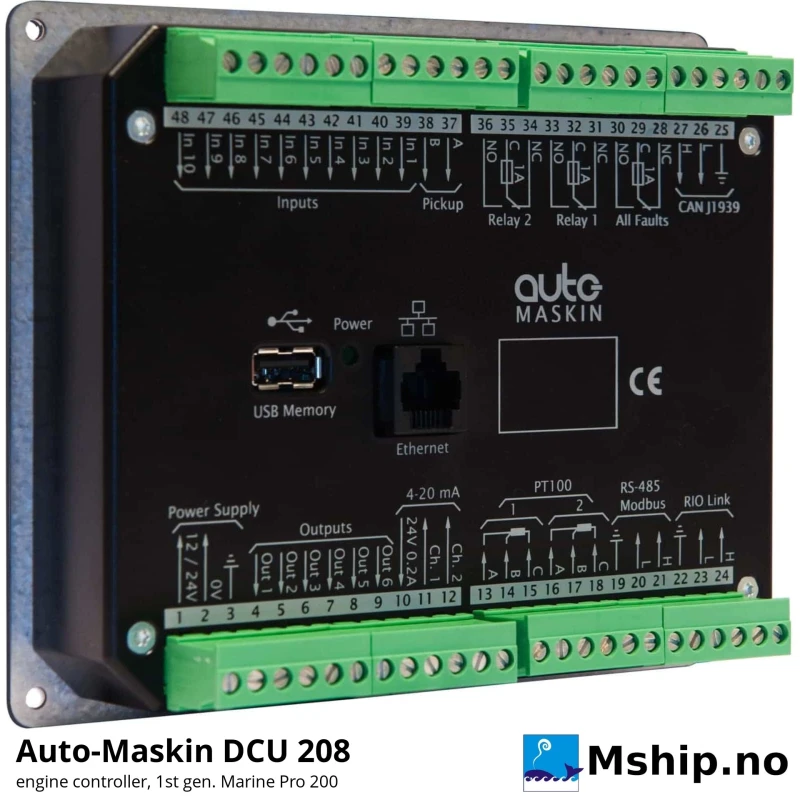

Auto-Maskin DCU 208 Engine Controller (legacy)

AM1006480

New product

Auto-Maskin DCU 208 Engine Controller – engine controller without display – replaced by DCU 208E.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model DCU 208 (Marine Pro 200, 1st generation – discontinued)
Manufacturers part number 1006480
Performance specification Engine controller without display, operated from a remote panel; front IP44; replaced by DCU 208E
Other Inputs: digital inputs, 2 x 4-20 mA, 2 x PT100 (0-800 °C), magnetic pickup. Outputs: digital outputs, relay output (1 A)
Weight 340 g
Volt 8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees Operating +5 to +70 °C
Remarks Interfaces: CAN SAE J1939 (250 kbps), Ethernet / Modbus TCP 100 Mbps, Modbus RTU 19 200 baud
DIMENSIONs 161 x 132 x 37 mm (W x H x D)

More info

The DCU 208 is the first-generation Marine Pro 200 engine controller without a local screen – the same unit as the DCU 210 but operated from a remote panel, typically mounted in an enclosure on the engine where no local display is needed.

Auto-Maskin's replacement is the Auto-Maskin DCU 208E Engine Controller.

The original Auto-Maskin documentation is in the downloads below.

We can often supply used units and spare parts, or help with the change to the current model. Contact us with your request.

Accessories

Download

200 Series Installation and Configuration Manual 2.4.2

Auto-Maskin (1st generation 200 Series)

Download (1.1M)

200 Series User's Manual 2.4.3

Auto-Maskin (1st generation 200 Series)

Download (1010.73k)

DCU 208 Product Sheet

Auto-Maskin

Download (306.12k)

DCU 208 Data Sheet

Auto-Maskin, rev. Oct 2015

Download (35.12k)
