Auto-Maskin DCU 210E Engine Controller

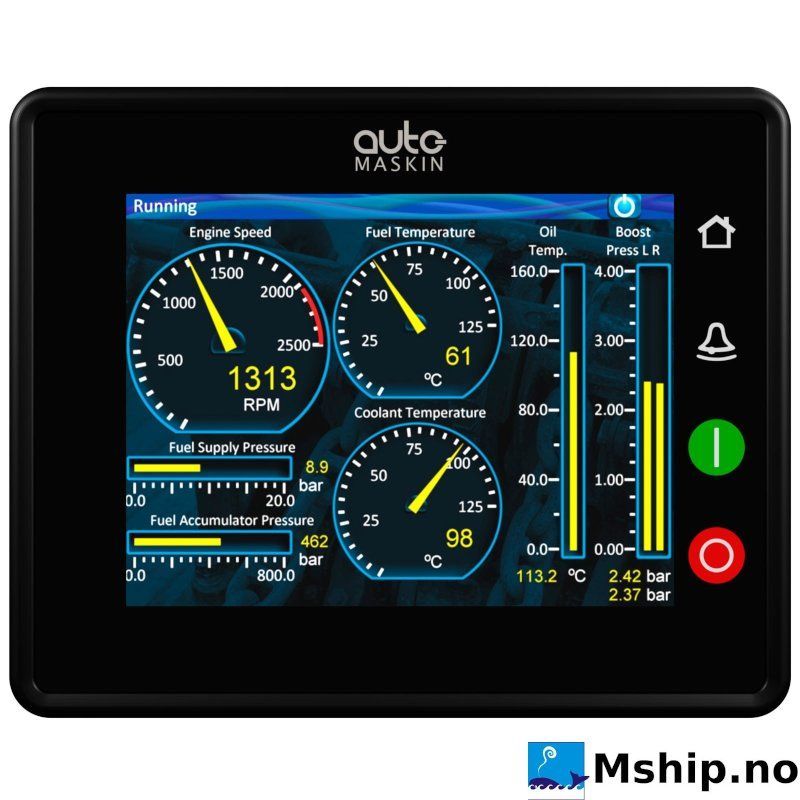

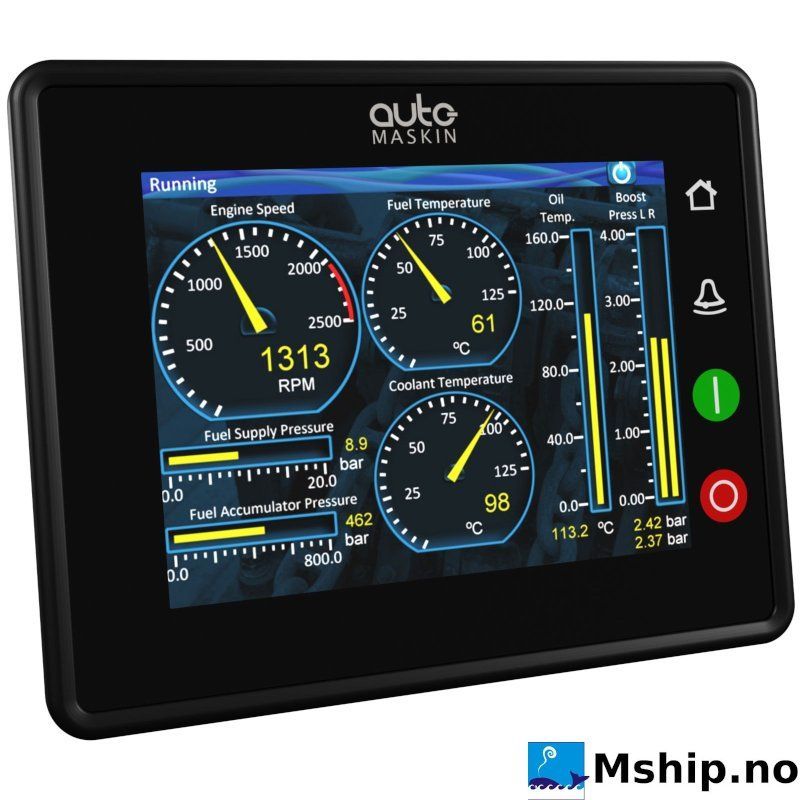

The DCU 210E is a complete, stand-alone engine panel for vessels and installations that do not need class approval – workboats, fishing boats, yachts, pumps and generator sets. It reads electronic engines over two J1939 CAN ports and conventional sensors through 19 freely configurable I/O channels, and shows everything on a 5.7" colour touchscreen that is readable in daylight.

On board it handles

• Start, stop and engine protection for fixed and variable speed engines
• 19 flexible channels – each one can be a digital input or output, a 4–20 mA or voltage input – plus 2 relays, a magnetic pickup and 2 PT100 / thermistor inputs
• Alarms and fault codes in plain text, selectable operator languages, night mode and dimming
• Modbus RTU and Modbus TCP to the ship's alarm system, Ethernet to remote panels
• Set-up in a web browser, firmware updates from a USB stick; compatible with Marine Broadcast remote monitoring

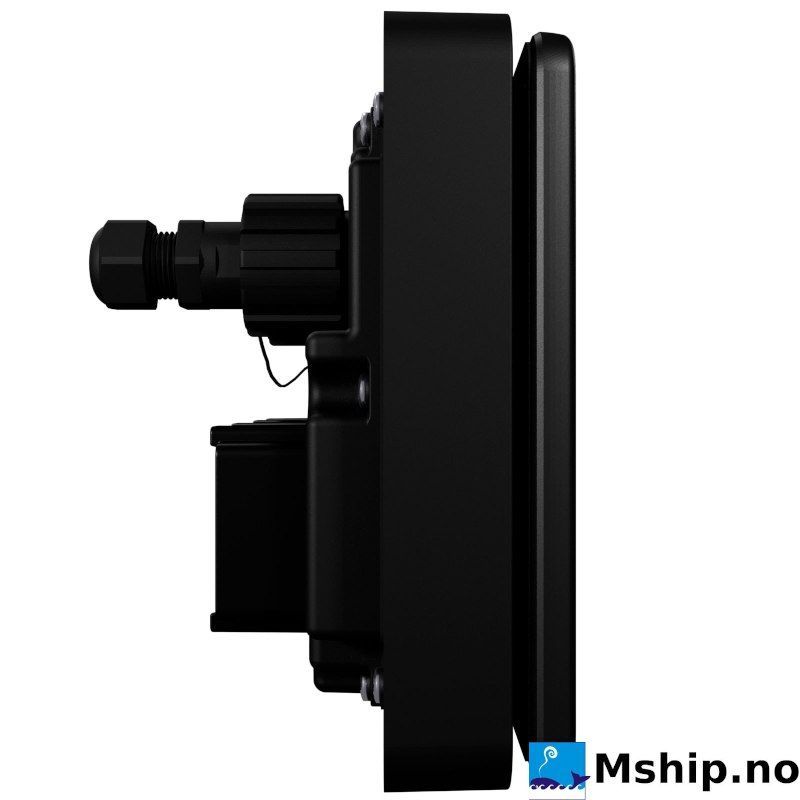

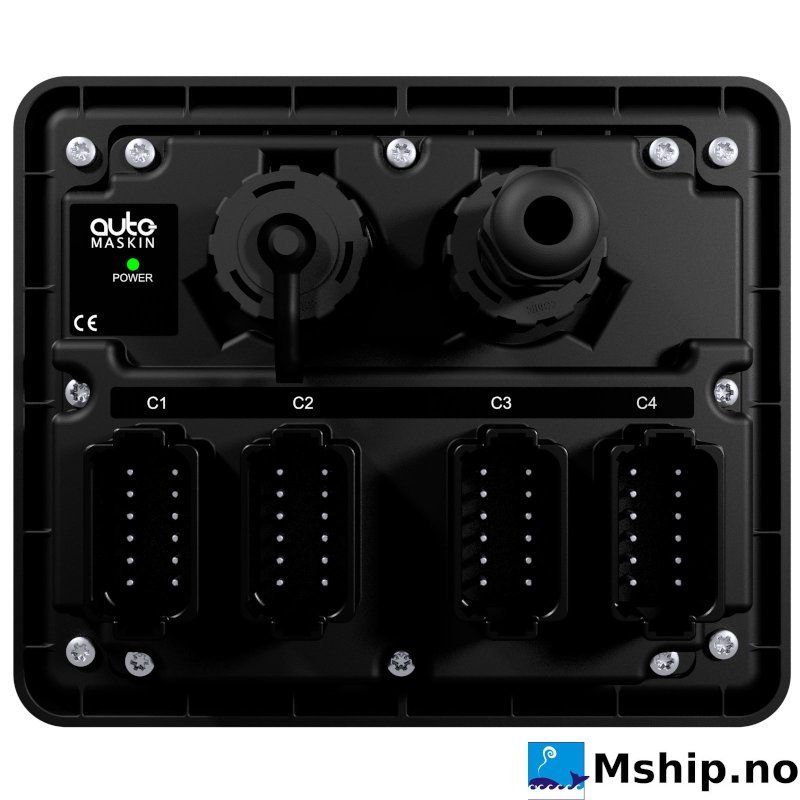

The panel is sealed to IP56 front and rear with Deutsch DT connectors, so it can be mounted on the engine as well as on the bridge. Remote panels such as the RP 210E connect over Ethernet. Pre-wired ProConnect kits with a DCU 210E are available for several Cummins and Scania engines. The DCU 210E replaces the earlier DCU 210.

For classed vessels, see the 400 Series DCU 410E.

Most units are delivered from stock or at short notice from the manufacturer.

Contact us for price and delivery time.
