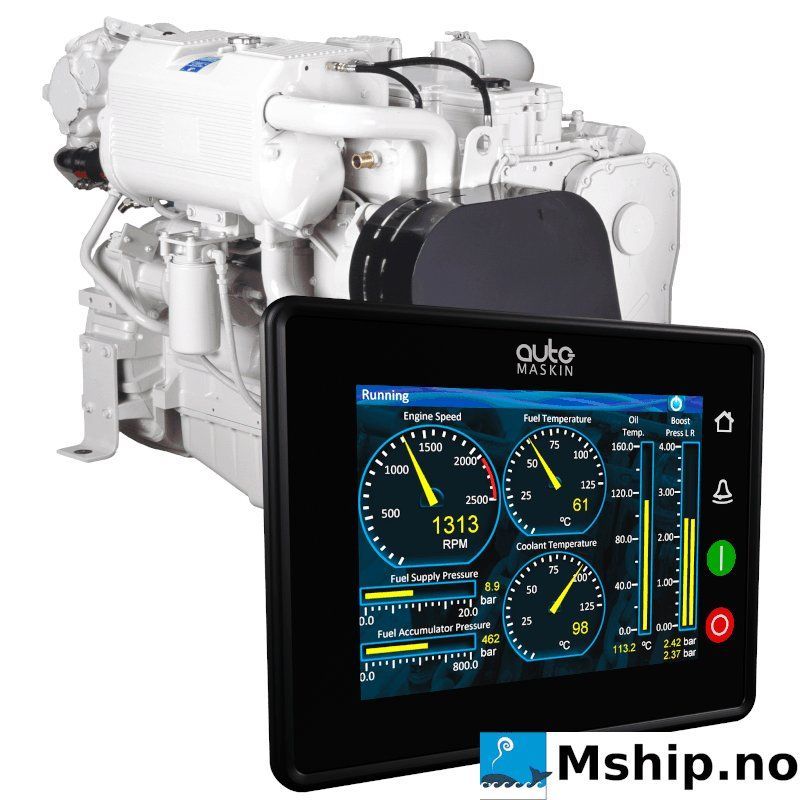

ProConnect-C1

A “Plug and Play” control system for Cummins propulsion engines

Ordering info ProConnect C1 Part number 1100711

Connect your Cummins QSB6.7, QSC, QSL9 or QSM11

    A “Plug and Play” control system for Cummins propulsion engines
    Fits Cummins QSB6.7, QSC, QSL9 and QSM11

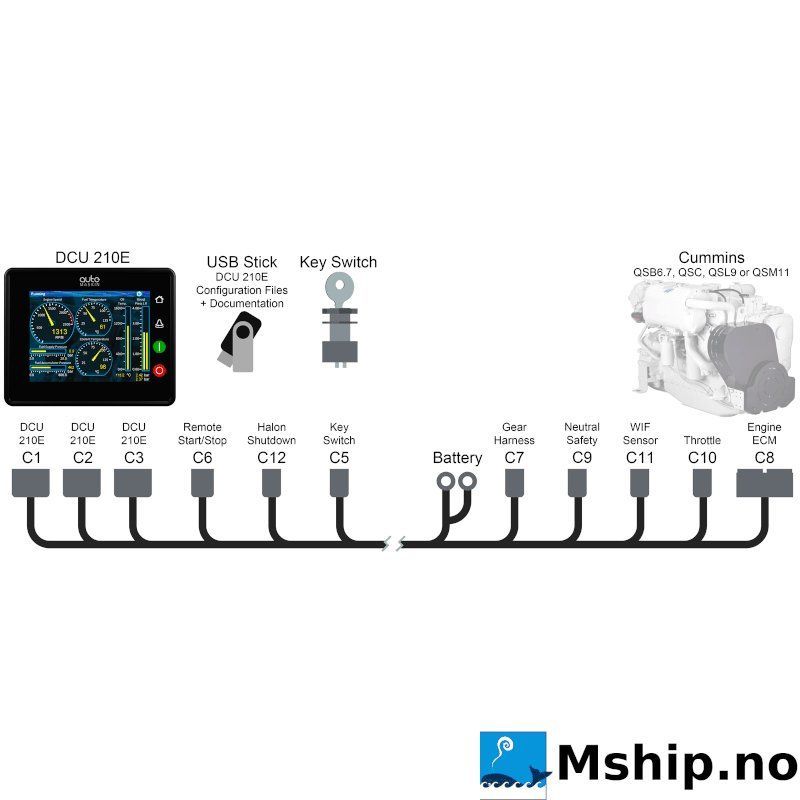

    Includes a connection harness with all necessary and a set of optional connectors, a DCU 210E engine control unit and a USB stick with pre-defined configuration files
    Pre-defined configuration files means no programming

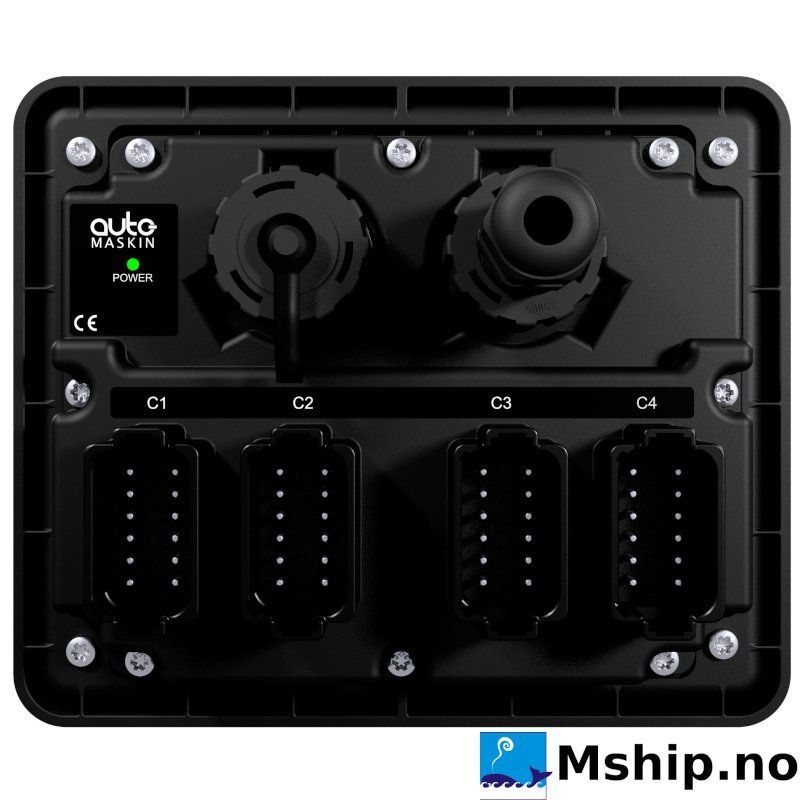

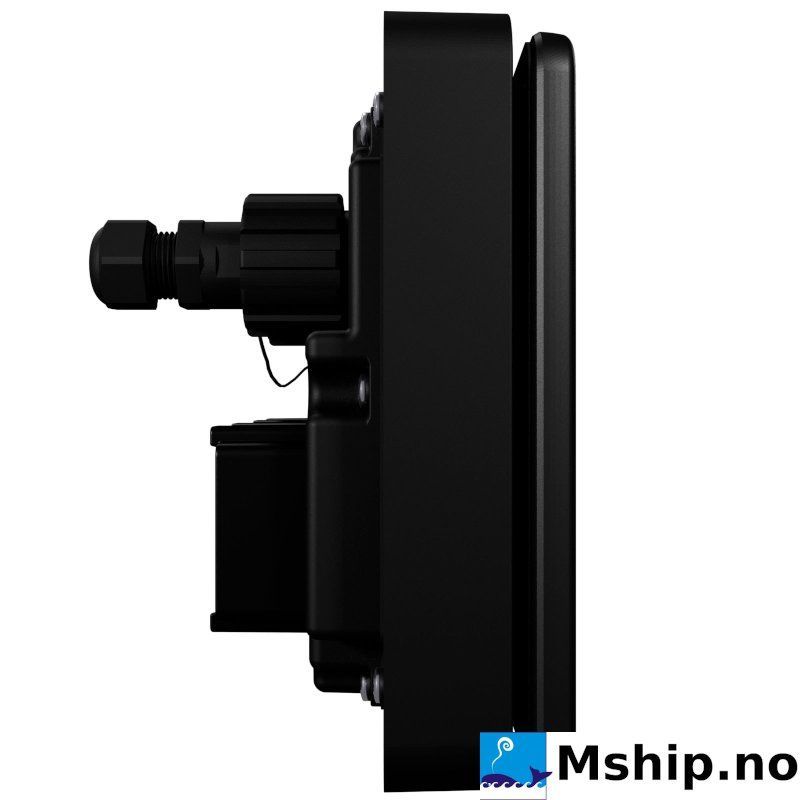

    The DCU 210E features and functions compliment the engine capability
    No special software required; if additional configuration is needed, it can be done using any web browser
    Full system warranty from Auto-Maskin means “Peace of Mind”
    Supported globally by the Auto-Maskin network

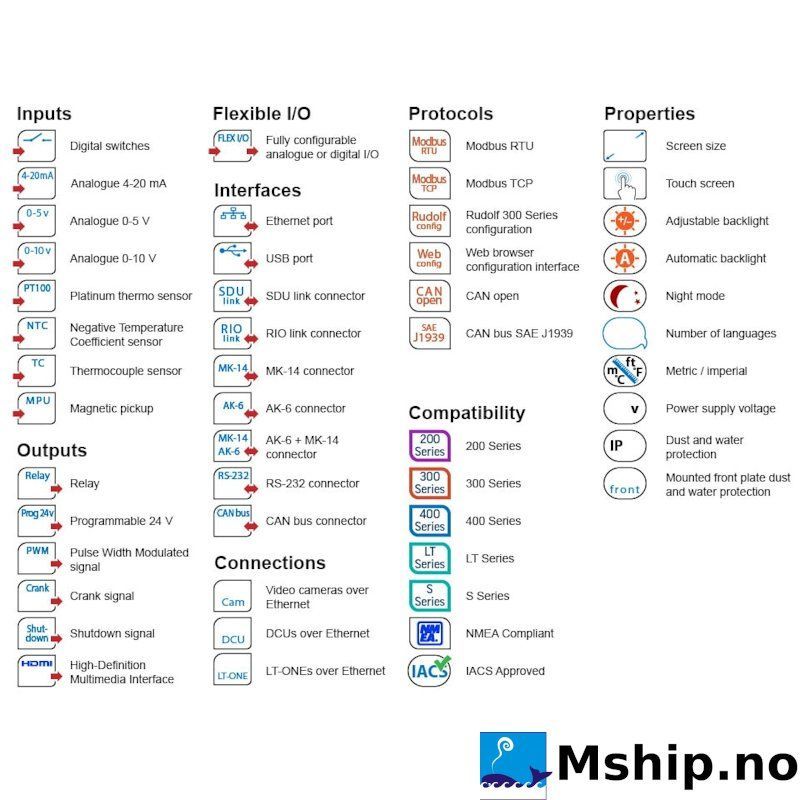

Feature rich

    Dedicated Start/Stop controls
    Operator selectable 12 languages built in
    Operator selectable Metric/US units
    All data accessible on Modbus TCP/RTU

Robust, heavy duty, reliable

    Glove-capable operation
    Sunlight-capable touchscreen
    IP56 compliant including connectors
    Tough marine grade construction

Dedicated to engine

    “Plug In“ harness with connectors matched to engine
    Ready for additional customer installed options
    Preconfigured files
    Full J1939 CAN bus integration

Easy to use

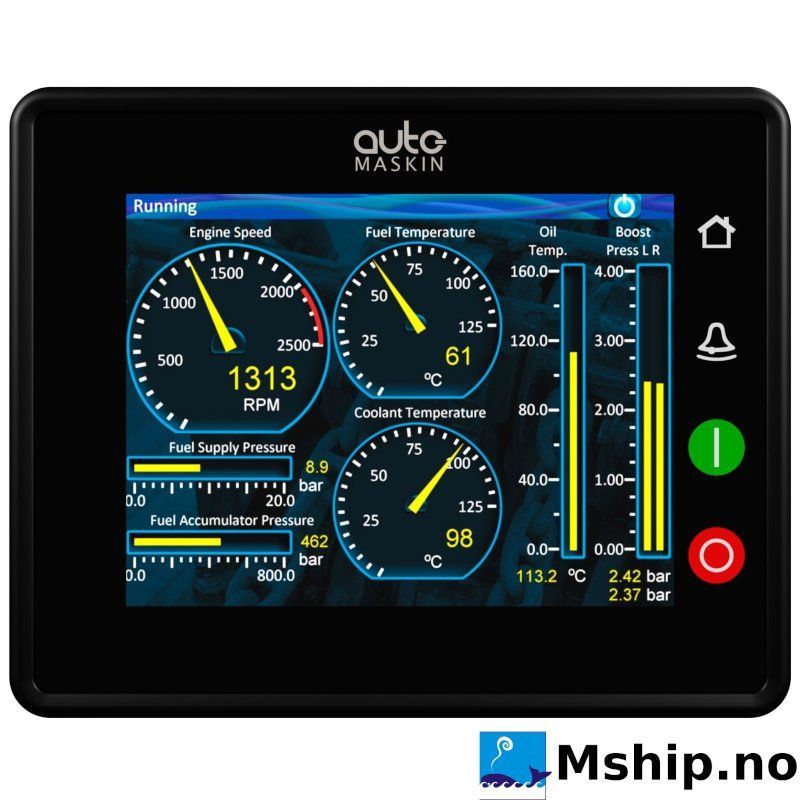

    Large, clear color display
    Icon-based menus
    Dedicated alarm banners
    One-touch alarm list, counters and a protected event log

Why customers select Marine ProConnect

    Fast, clear icon-based information promotes safe and efficient operation
    Pre-engineered solution means fast, low-cost installation
    Quality-assured solution presents low business and operational risk
    Aligns to same architecture as Cummins C Command
    Looks fantastic!

At a glance

• A “Plug and Play” control system for Cummins propulsion engines
• Fits Cummins QSB6.7, QSC, QSL9 and QSM11
• includes connection harness, connectors and DCU 210E
• Predefined configuration files means no programming
• The DCU 210E features and functions compliment the engine
  capability
• No special software or licensing, you just need a web browser if you want to customize
• Full system warranty from Auto­ Maskin means “Peace of Mind”
• Supported globally by the Auto­Maskin network
