Auto-Maskin RP 210E Remote Panel

Name: Auto-Maskin RP 210E Remote Panel
Brand: AUTO-MASKIN
SKU: AM1006476

Reference: AM1006476

Condition: New product

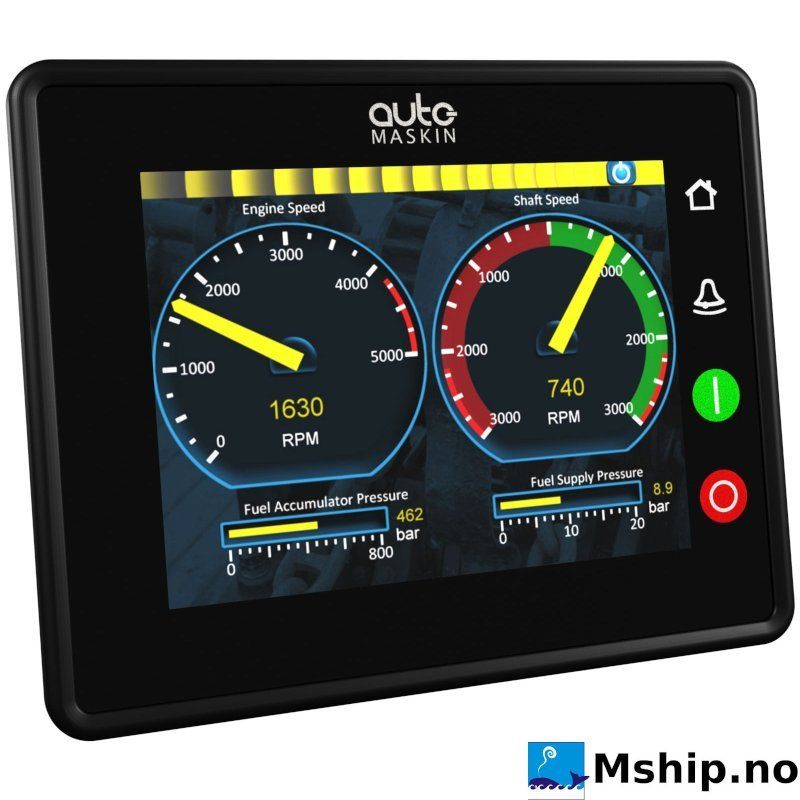

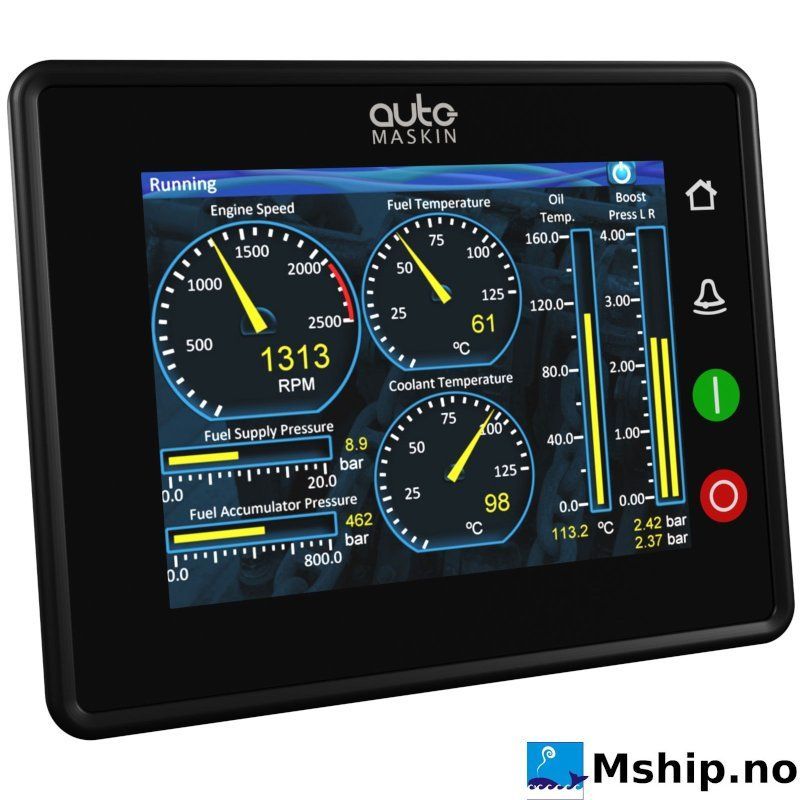

Auto-Maskin RP 210E remote panel for Marine Pro 200 and 400 engine controllers, 5.7" touchscreen.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Auto-Maskin
Model	RP 210E (Marine Pro 200 / 400 remote panel)
Manufacturers part number	1006476 / 1006474
Performance specification	5.7" colour capacitive touchscreen 640 x 480, 450 cd/m², 4 touch buttons; IP56 complete enclosure, IP66 front when mounted
Class	DNV cyber security type approval TAA00003H4 (security profile 1, IACS UR E27) – not a general class approval
Other	Flexible I/O: 3 digital inputs, 1 digital output (0.2 A)
Weight	0.8 kg
Amps	0.4 A typical at 24 VDC (0.5 A with no I/O in use)
Volt	8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees	Operating -25 to +70 °C, storage -30 to +85 °C
Remarks	Interfaces: Ethernet 10/100 (IP67 RJ45, plug kit included), USB 2.0 service port, 4 x 12-pin Deutsch DT06-12SA. For DCU 210E / 410E and other Marine Pro 200 / 400 controllers

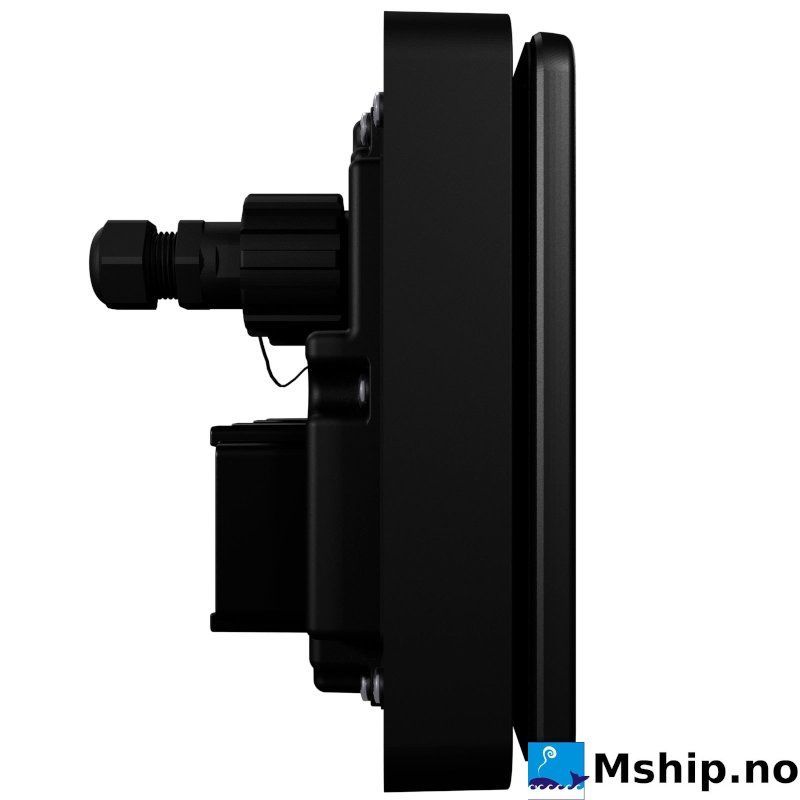

DIMENSIONs	Approx. 167 x 135 x 68 mm (W x H x D); panel cut-out 155 x 123 mm, access depth 90 mm

More info

The RP 210E repeats the engine panel on the bridge or in a control room. It connects to a Marine Pro 200 or 400 engine controller – such as the DCU 210E or the DCU 410E – with a standard Ethernet cable and configures itself from the DCU.

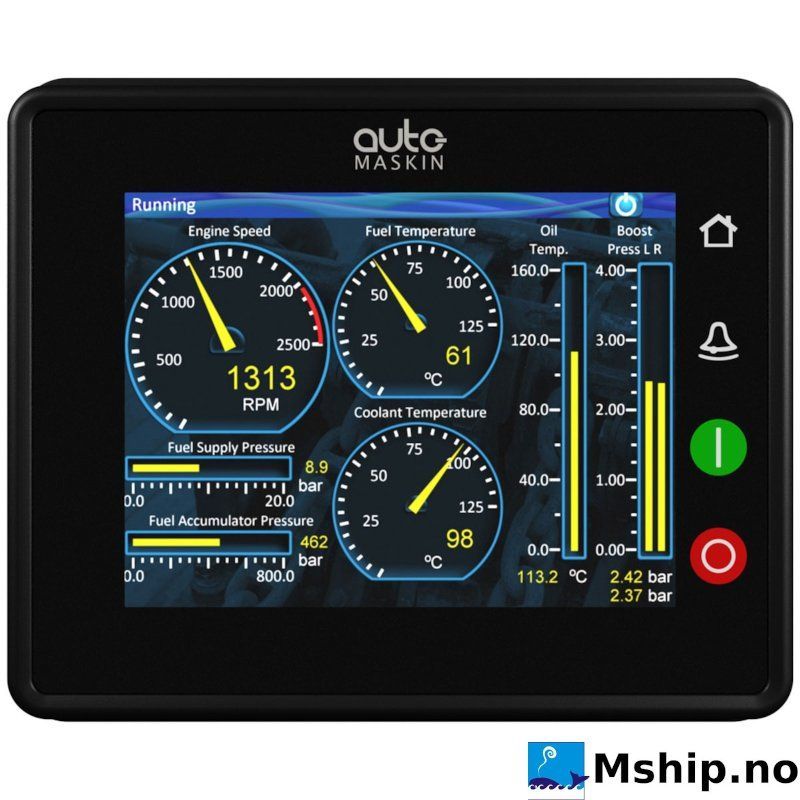

5.7" colour capacitive touchscreen 640 × 480, readable in daylight, 4 touch buttons
Sealed to IP56 front and rear, same housing and cut-out as the DCU 210E
3 digital inputs and 1 digital output, USB port for updates

When a DCU is replaced, the remote panel firmware should be at the same or a newer level than the DCU. The RP 210E replaces the earlier RP 210.

Most units are delivered from stock or at short notice from the manufacturer.
