New Auto-Maskin Marine Watch LT-ONE Alarm Panel — Manufacturer: Auto-Maskin, Model: Marine Watch LT-ONE, Manufacturers part number: 1500074, Performance specification: Vessel alarm panel for unclassed vessels: 5.7" colour touchscreen 640 x 480, 2 touch buttons; IP56 complete enclosure, IP66 front, Class: DNV cyber security type approval TAA00003H4 (security profile 1, IACS UR E27) – not a general class approval, Other: 19 flexible I/O (digital in/out, 4-20 mA or 0-Vcc analog input), 2 relays, tacho, 2 PT100 / thermistor inputs; plug-in I/O expansion, Weight: 0.8 kg, Amps: 0.5 A typical, 2 A max at 24 VDC, Volt: 8-32 VDC (12 / 24 VDC systems), Working temperature max, celsius degrees: Operating -25 to +70 °C, storage -30 to +85 °C, Remarks: Interfaces: 2 x CAN SAE J1939, Ethernet / Modbus TCP, Modbus RTU, RIO link, USB, DIMENSIONs: Approx. 162 x 130 x 67 mm (W x H x D); panel cut-out 155 x 123 mm, access depth 90 mm View larger
Previous Next

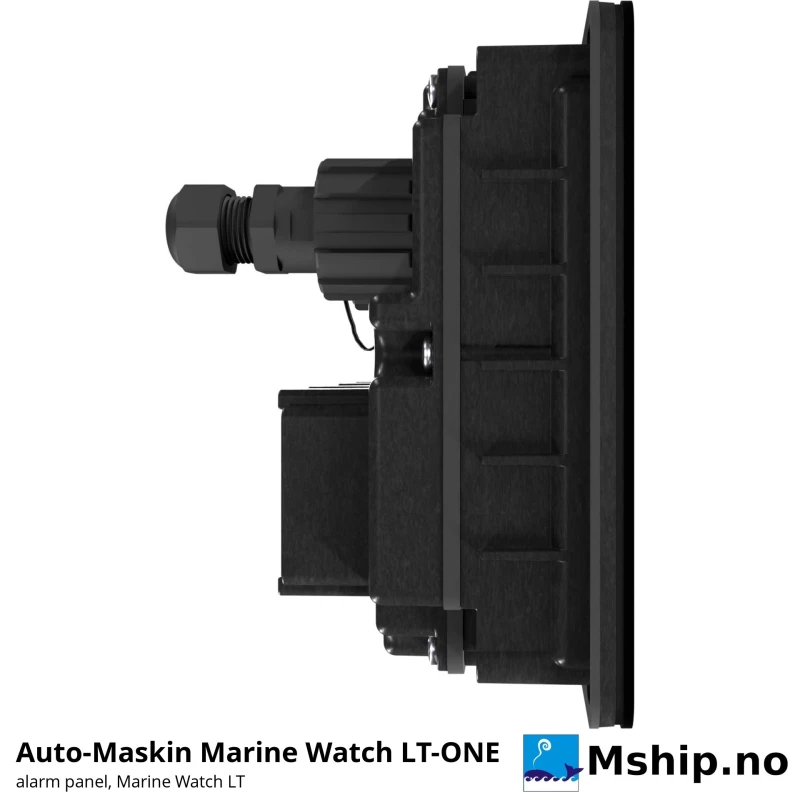

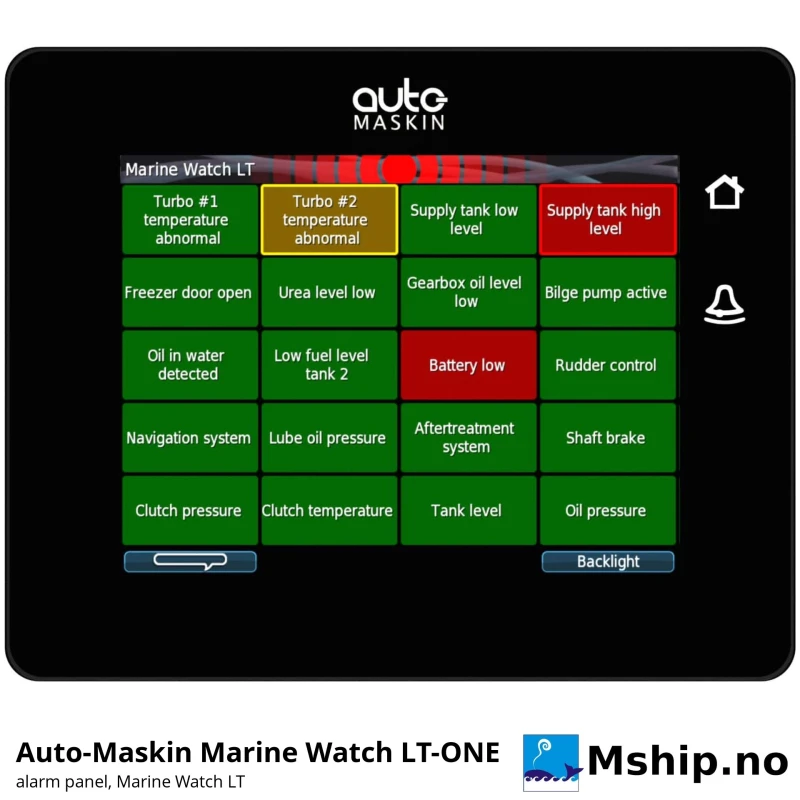

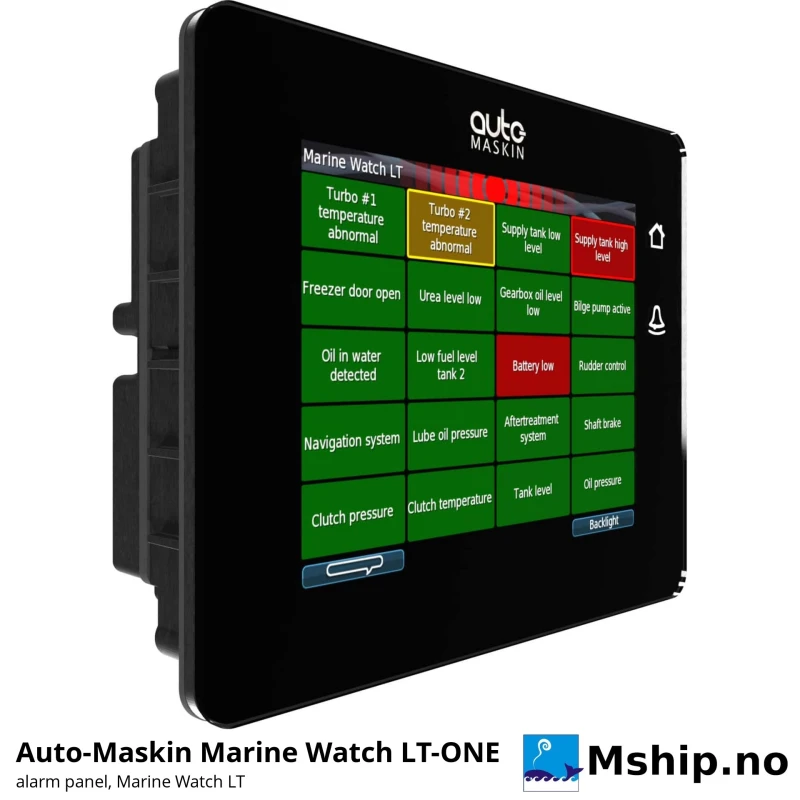

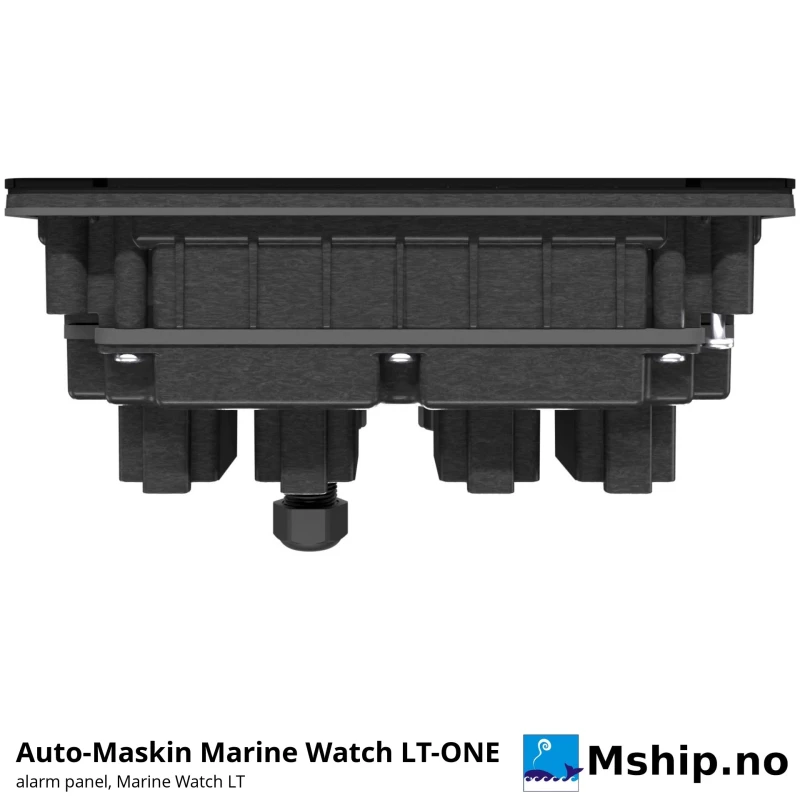

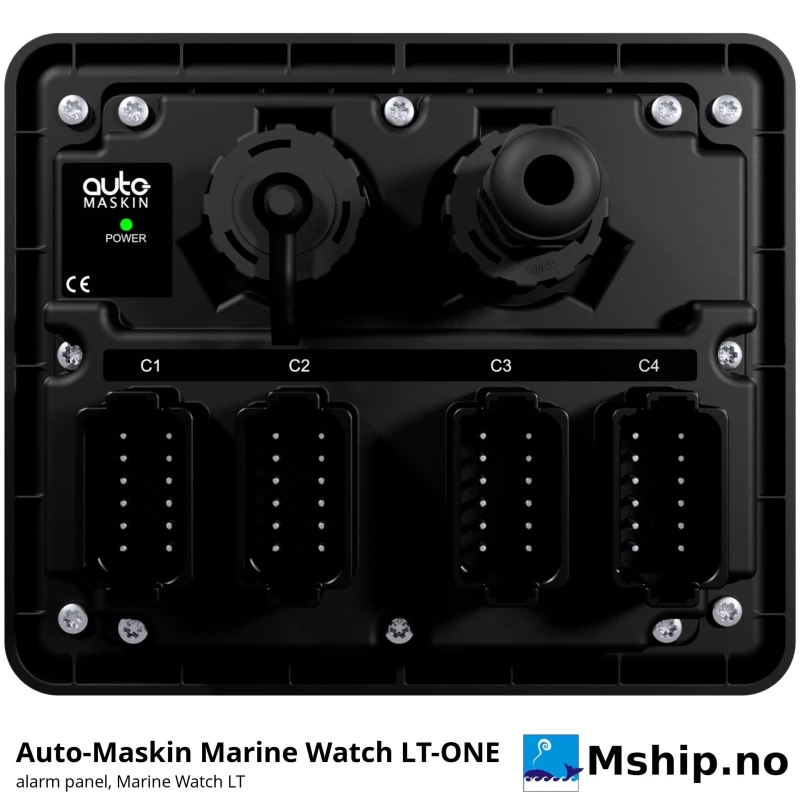

Auto-Maskin Marine Watch LT-ONE Alarm Panel

AM1500074

New product

Auto-Maskin Marine Watch LT-ONE alarm panel with 19 flexible I/O, 5.7" touchscreen, for unclassed vessels.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model Marine Watch LT-ONE
Manufacturers part number 1500074
Performance specification Vessel alarm panel for unclassed vessels: 5.7" colour touchscreen 640 x 480, 2 touch buttons; IP56 complete enclosure, IP66 front
Class DNV cyber security type approval TAA00003H4 (security profile 1, IACS UR E27) – not a general class approval
Other 19 flexible I/O (digital in/out, 4-20 mA or 0-Vcc analog input), 2 relays, tacho, 2 PT100 / thermistor inputs; plug-in I/O expansion
Weight 0.8 kg
Amps 0.5 A typical, 2 A max at 24 VDC
Volt 8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees Operating -25 to +70 °C, storage -30 to +85 °C
Remarks Interfaces: 2 x CAN SAE J1939, Ethernet / Modbus TCP, Modbus RTU, RIO link, USB
DIMENSIONs Approx. 162 x 130 x 67 mm (W x H x D); panel cut-out 155 x 123 mm, access depth 90 mm

More info

The LT-ONE is a complete vessel alarm panel with its own I/O: 19 flexible channels on board, a 5.7" touchscreen, event log and built-in languages. It is set up on the panel without extra tools, has built-in sensor troubleshooting and sea-trial logging, and is Marine Broadcast compatible for cloud monitoring.

Marine Watch LT is Auto-Maskin's alarm system for unclassed vessels. It supports more than 100 I/O with a mix of sensor types, starting with the 19 flexible I/O on the LT-ONE panel itself, and works with the 200 and 400 Series engine controllers.

Extra channels are added with plug-in I/O expansion; alarm repeaters: LT-ACE annunciator panel.

Most units are delivered from stock or at short notice from the manufacturer.

Contact us for price and delivery time.

Accessories

Download

400E / 200E / LT Configuration Manual

Auto-Maskin, firmware 3.11P8

Download (4.61M)

DCU 210E Data Sheet

Auto-Maskin, rev. 13 Jul 2026

Download (116.77k)

200E Series Installation Manual

Auto-Maskin, v1.10 Feb 2026

Download (837.6k)

200E Series Dimension Drawing (2nd gen, 2024-)

Auto-Maskin drawing 1912-HMP527-1 rev. B

Download (2.08M)

DNV Type Approval TAA00003H4 (cyber security)

Marine Pro 200 / Marine Watch LT, DNV security profile 1

Download (107.93k)

EU Declaration of Conformity Marine Watch

Auto-Maskin

Download (66.66k)

Marine Watch LT Series Product Sheet

Auto-Maskin, v2.4 (2025)

Download (474.12k)

Marine Watch LT-ONE Quick Installation Guide

Auto-Maskin (2025)

Download (1.04M)

Marine Watch LT Series User's Manual

Auto-Maskin (2026)

Download (1.37M)

Marine Watch LT-ONE I/O Expansion (application note)

Auto-Maskin AN-20-15-1

Download (244.04k)
