New Auto-Maskin Marine Watch LT-ACE Annunciator Panel — Manufacturer: Auto-Maskin, Model: Marine Watch LT-ACE, Manufacturers part number: 1500120, Performance specification: Alarm annunciator for up to two LT-ONE panels: 5.7" colour touchscreen 640 x 480, 2 touch buttons, CCTV support; IP56, Class: DNV cyber security type approval TAA00003H4 (security profile 1, IACS UR E27) – not a general class approval, Weight: 0.8 kg, Volt: 8-32 VDC (12 / 24 VDC systems), Working temperature max, celsius degrees: Operating -25 to +70 °C, storage -30 to +85 °C, Remarks: Ethernet; 3 digital inputs, 1 digital output, DIMENSIONs: Approx. 162 x 130 x 67 mm (W x H x D); panel cut-out 155 x 123 mm, access depth 90 mm View larger
Previous Next

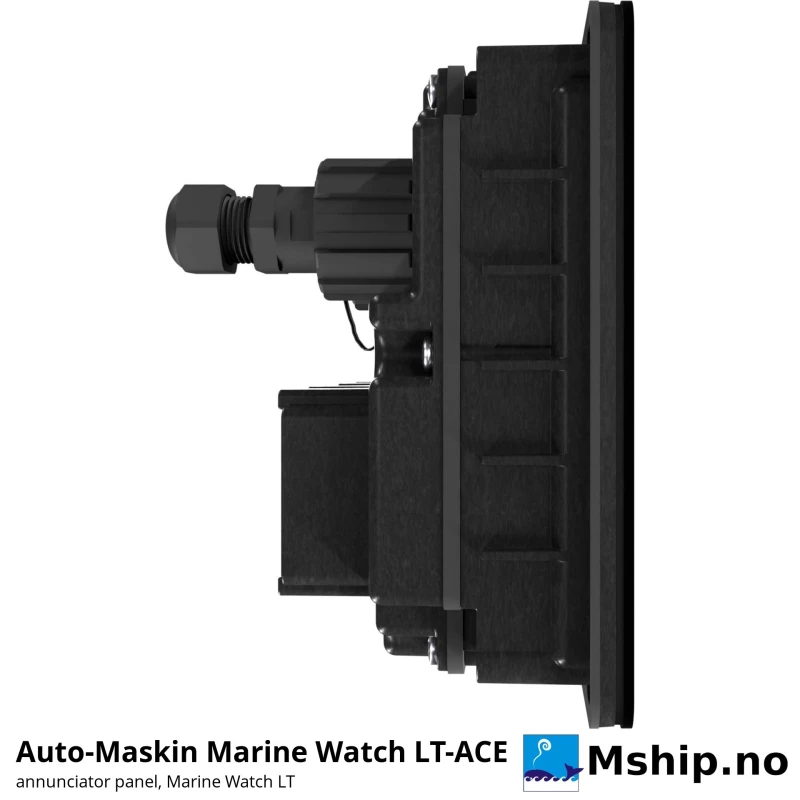

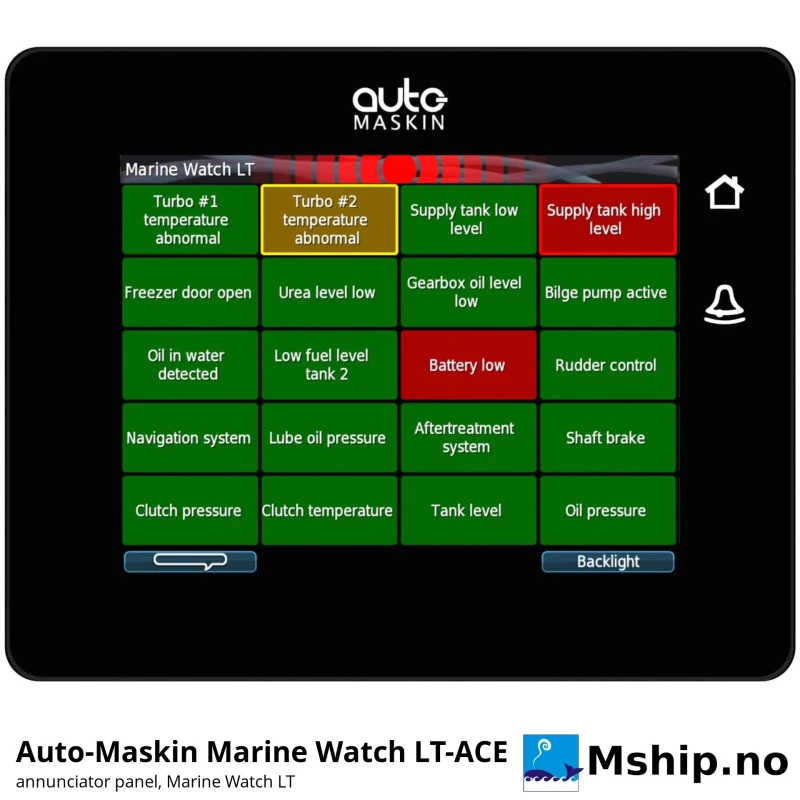

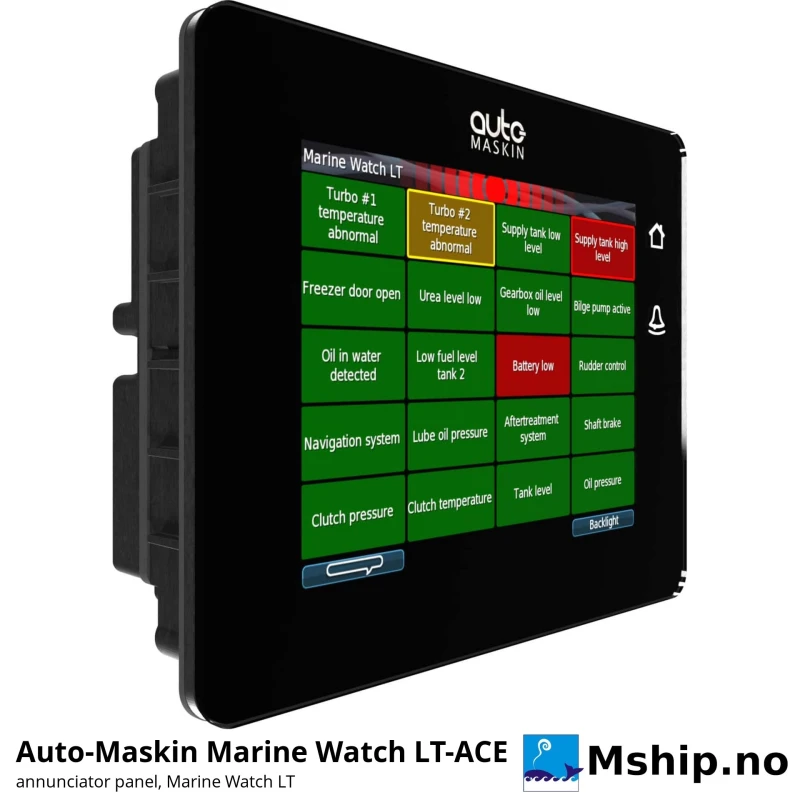

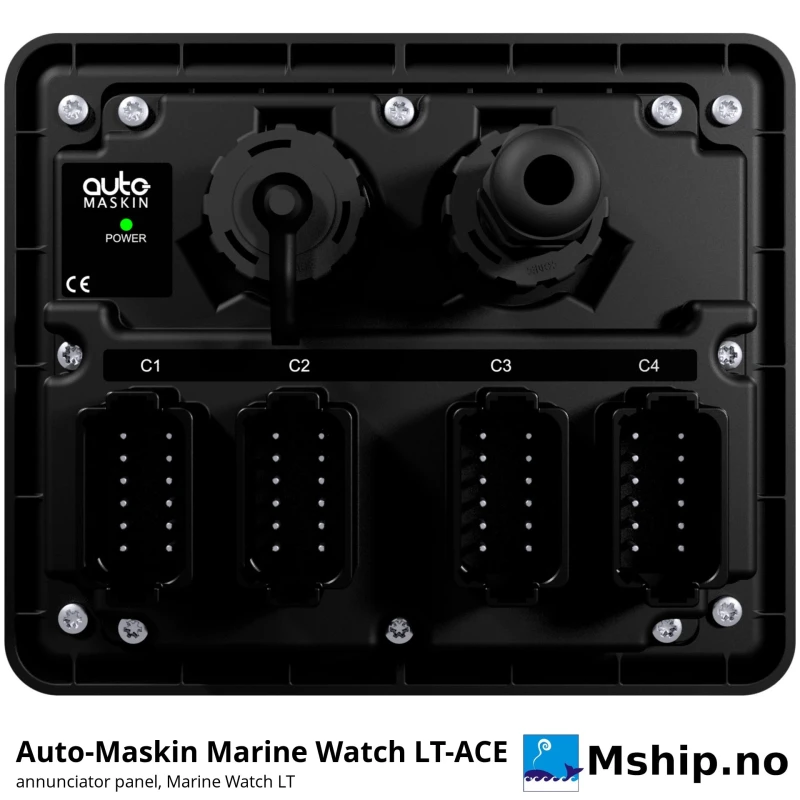

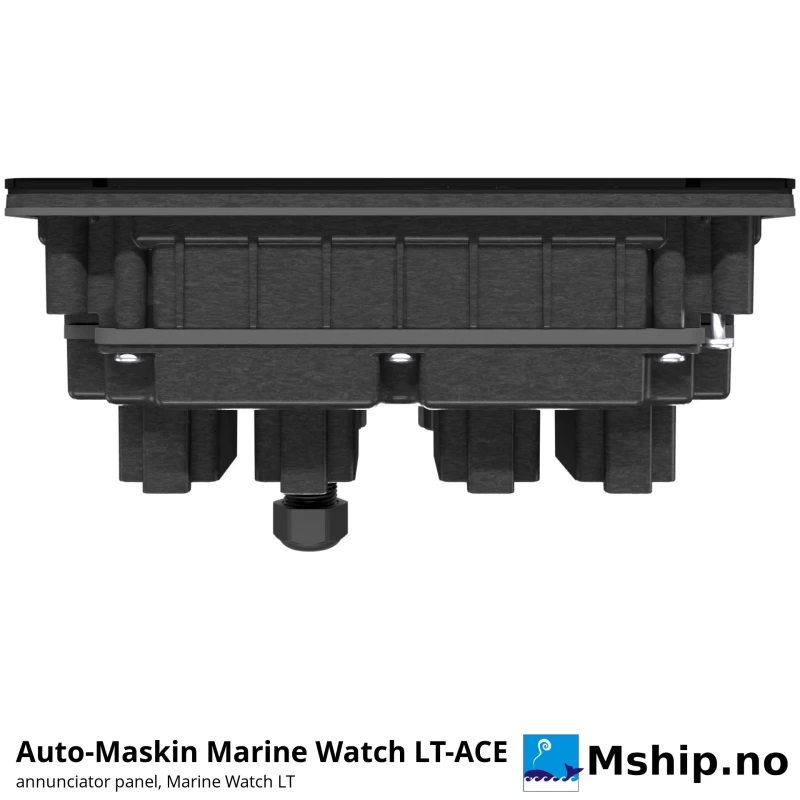

Auto-Maskin Marine Watch LT-ACE Annunciator Panel

AM1500120

New product

Auto-Maskin Marine Watch LT-ACE annunciator panel for up to two LT-ONE alarm panels.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model Marine Watch LT-ACE
Manufacturers part number 1500120
Performance specification Alarm annunciator for up to two LT-ONE panels: 5.7" colour touchscreen 640 x 480, 2 touch buttons, CCTV support; IP56
Class DNV cyber security type approval TAA00003H4 (security profile 1, IACS UR E27) – not a general class approval
Weight 0.8 kg
Volt 8-32 VDC (12 / 24 VDC systems)
Working temperature max, celsius degrees Operating -25 to +70 °C, storage -30 to +85 °C
Remarks Ethernet; 3 digital inputs, 1 digital output
DIMENSIONs Approx. 162 x 130 x 67 mm (W x H x D); panel cut-out 155 x 123 mm, access depth 90 mm

More info

The LT-ACE repeats the Marine Watch LT alarms wherever they need to be seen. It detects and configures itself with up to two LT-ONE alarm panels and combines their alarms in one list; there is practically no limit to the number of LT-ACE panels in the network. CCTV is supported, and the panel also works with 200 and 400 Series DCUs.

Marine Watch LT is Auto-Maskin's alarm system for unclassed vessels. It supports more than 100 I/O with a mix of sensor types, starting with the 19 flexible I/O on the LT-ONE panel itself, and works with the 200 and 400 Series engine controllers.

Most units are delivered from stock or at short notice from the manufacturer.

Contact us for price and delivery time.
