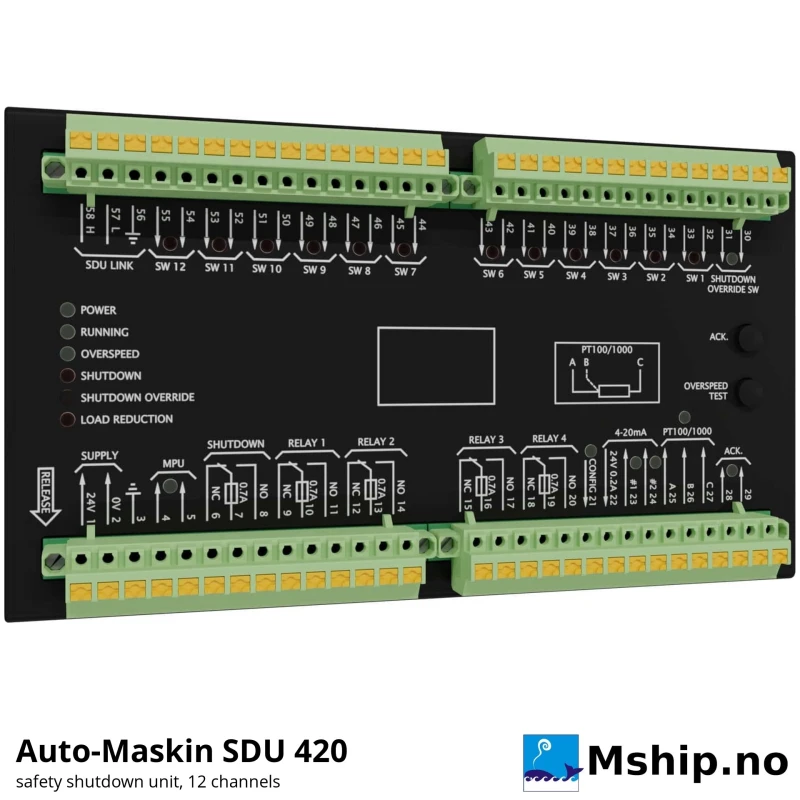

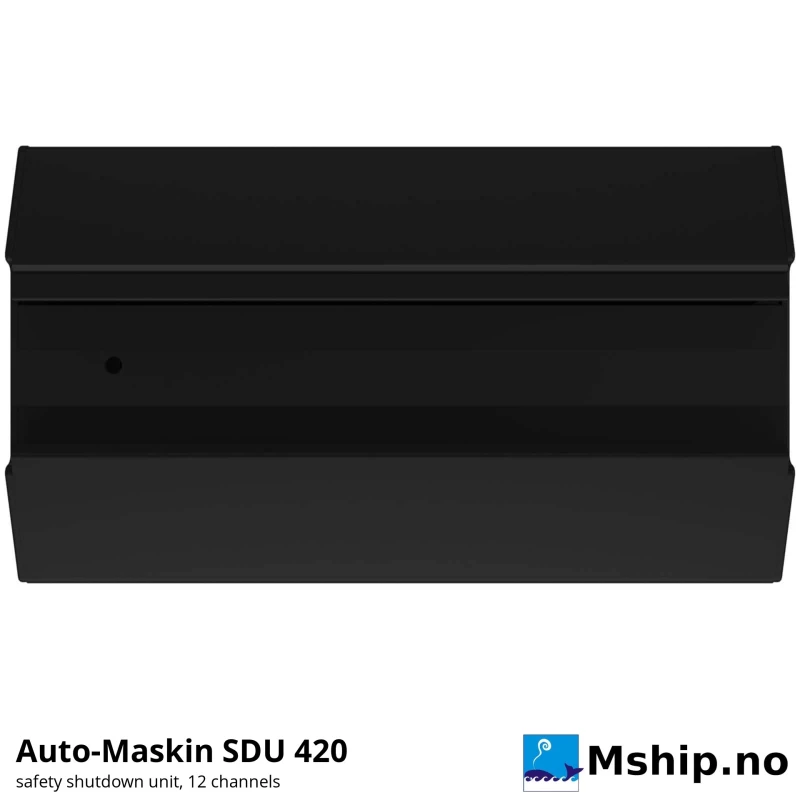

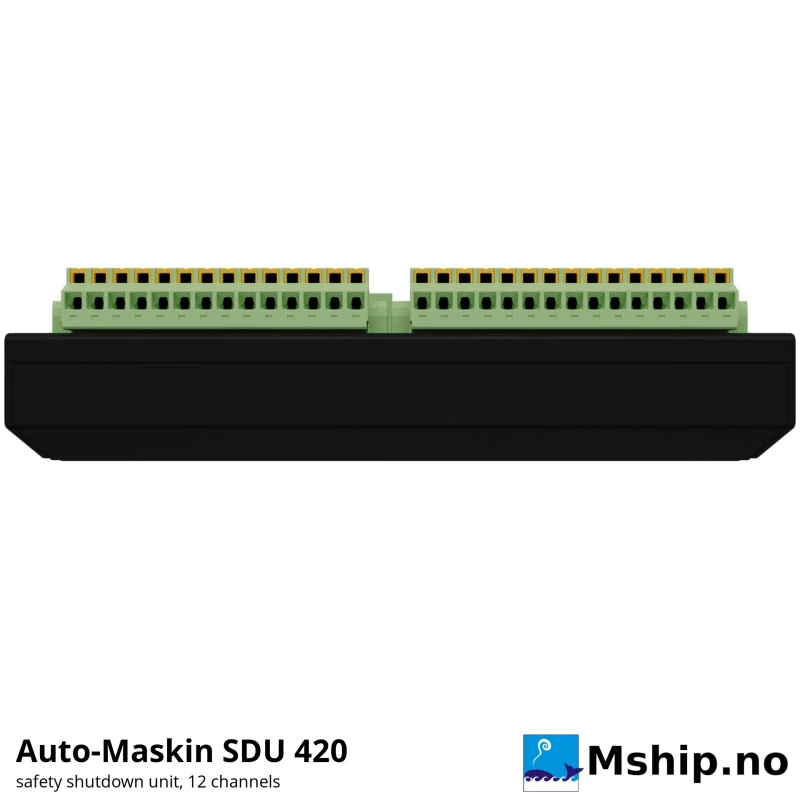

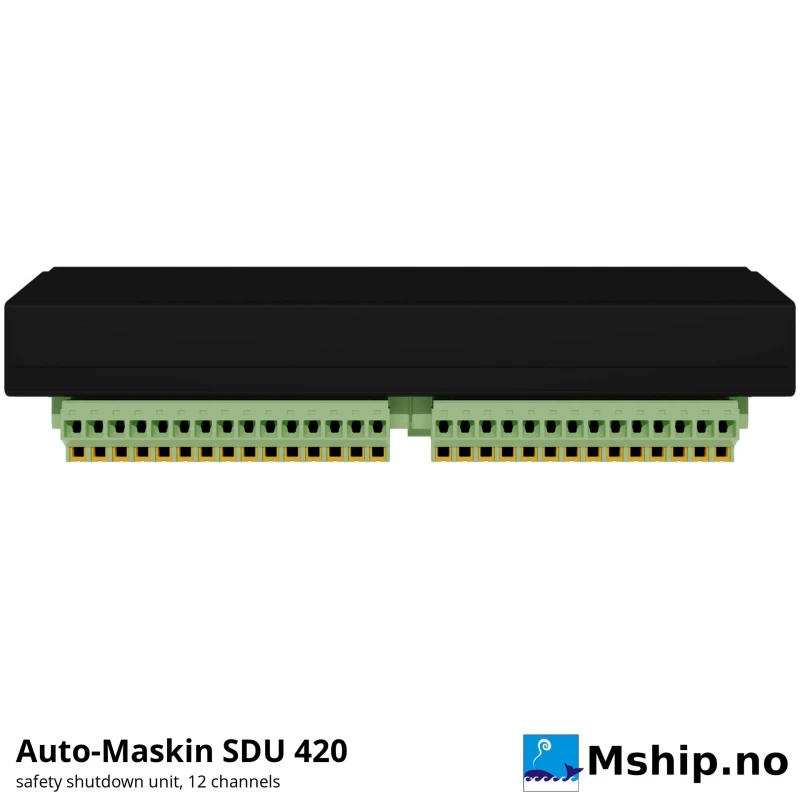

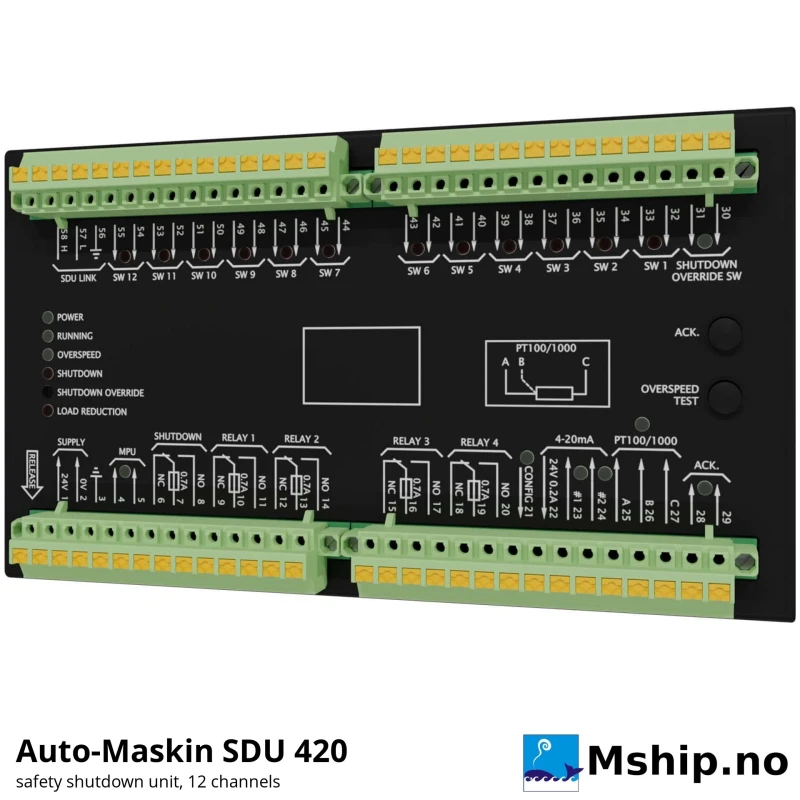

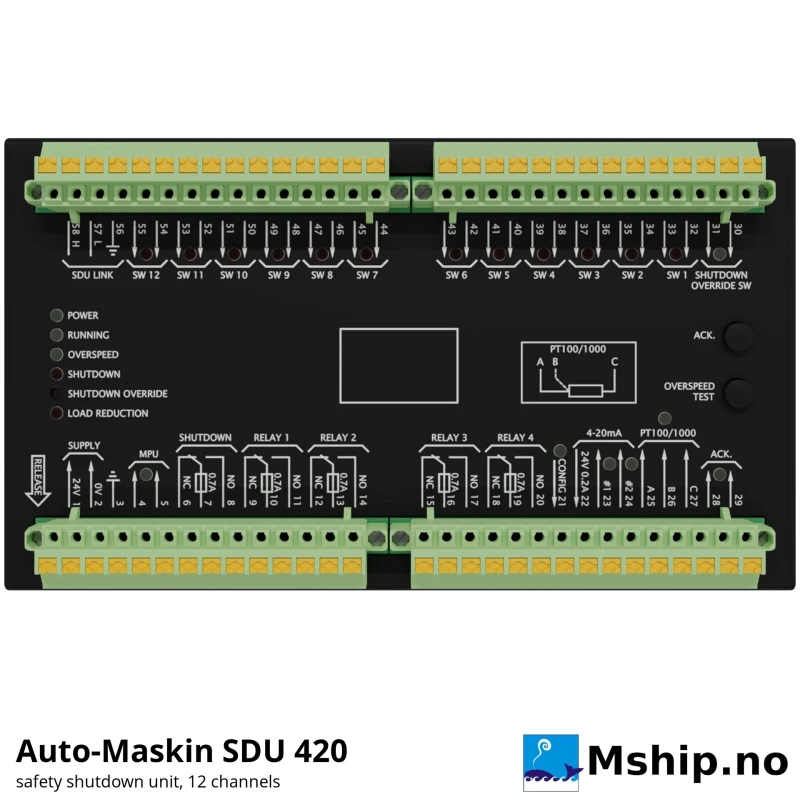

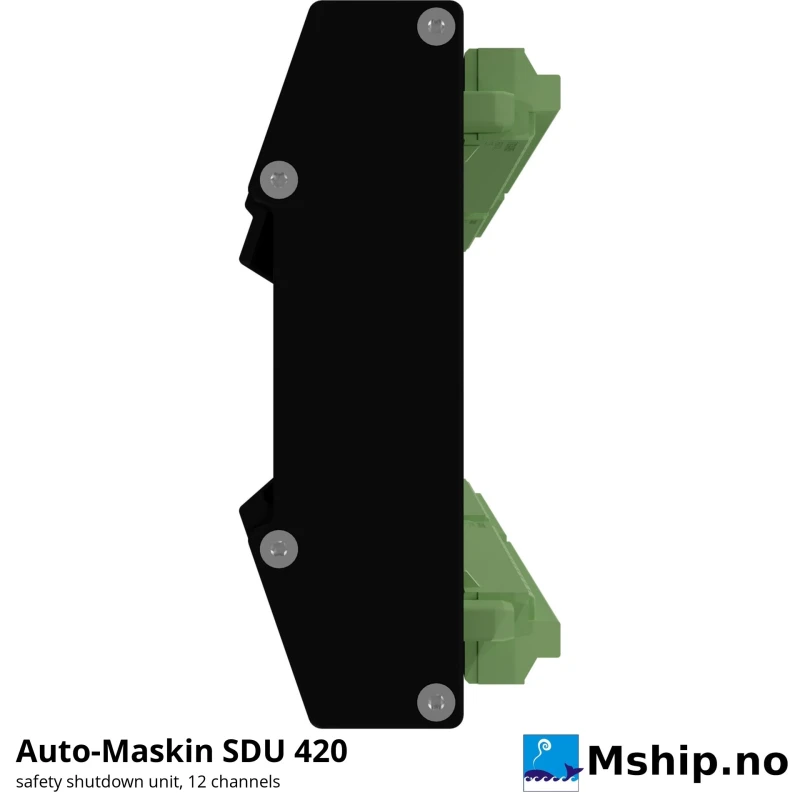

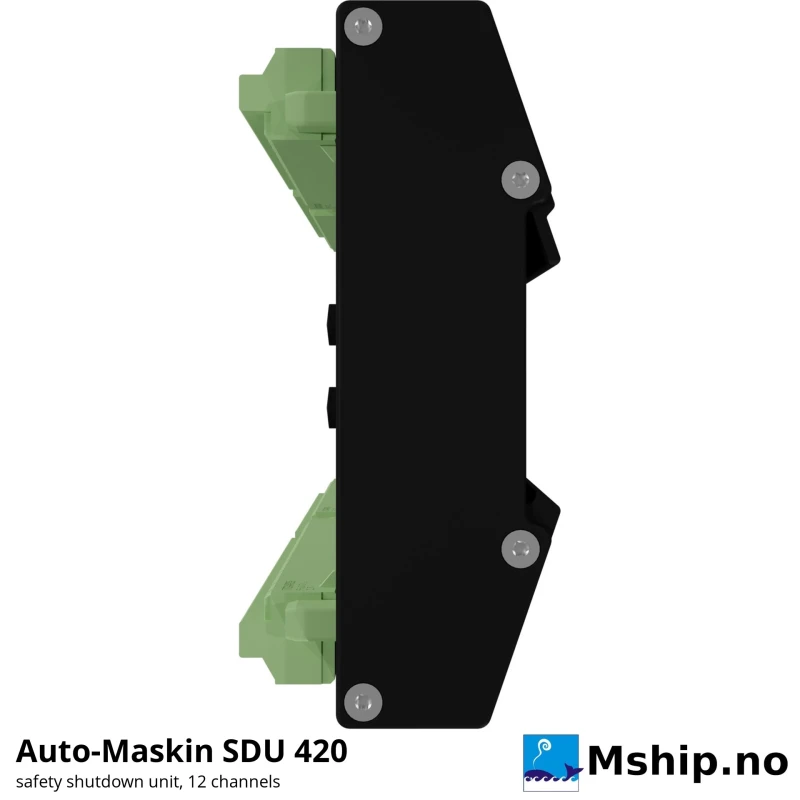

Auto-Maskin SDU 420 Safety Shutdown Unit
AM1500158
New product
Auto-Maskin SDU 420 12-channel safety shutdown unit for larger engines, IACS type approved.
Price on request
or call +47 908 92 500
Data sheet
| Manufacturer | Auto-Maskin |
| Model | SDU 420 (Marine Pro safety shutdown unit) |
| Manufacturers part number | 1500158 |
| Performance specification | 12-channel independent engine safety shutdown unit for larger engines; 3 analogue channels usable for shutdown; overspeed with test mode |
| Class | IACS type approved: DNV (TAA00000Z6), LR (LR23405374TA), BV (20519/D0), ABS (PDA 24-2515035-1-PDA), KR (CPH17663-AC001) – SDU 420; LR LR22131218SS-01 |
| Other | Switch inputs with wire-break and short-circuit detection, tacho input (passive or active pickup), 2 x 4-20 mA, 1 x PT100 / PT1000, shutdown relay 0.7 A, other relays 0.7 A, configurable output 1.8 A |
| Volt | 18-32 VDC (24 VDC nominal) |
| Working temperature max, celsius degrees | Operating +5 to +70 °C, storage -30 to +80 °C; IP30 (for cabinet mounting) |
| Remarks | Gear and rpm interlocks on all channels, secondary shutdown override for oil mist, rpm channel with loop monitoring, LED fault / status indication; configured automatically from 200 / 400 Series DCU |
| DIMENSIONs | 183 x 105 x 48 mm (W x H x D) |
More info
The SDU 420 is the independent safety shutdown unit that the classification societies require next to the engine controller: it stops the engine on overspeed or a critical fault even if the main panel fails. With 12 shutdown channels it is made for larger engines, on mechanical as well as electronic engines.
- Wire-break and short-circuit monitoring on the inputs, rpm channel with loop monitoring and an overspeed test mode
- Gear and rpm interlocks on every channel and secondary shutdown override for oil-mist detection
- LEDs for fault and status on the unit; configured automatically from the connected Marine Pro 200 or 400 DCU such as the DCU 410E
- DIN-rail unit for cabinet mounting, 18–32 VDC
IACS type approved – certificates in the downloads.
Most units are delivered from stock or at short notice from the manufacturer.
Contact us for price and delivery time.
Accessories
Download
LR Certificate LR22131218SS-01 (SDU 404/410/420)
Lloyd's Register, engine safety shutdown unit
Download (766.91k)
