Auto-Maskin RP 410 Remote Panel (legacy)

Name: Auto-Maskin RP 410 Remote Panel (legacy)
Brand: AUTO-MASKIN
SKU: AM1006452

Reference: AM1006452

Condition: New product

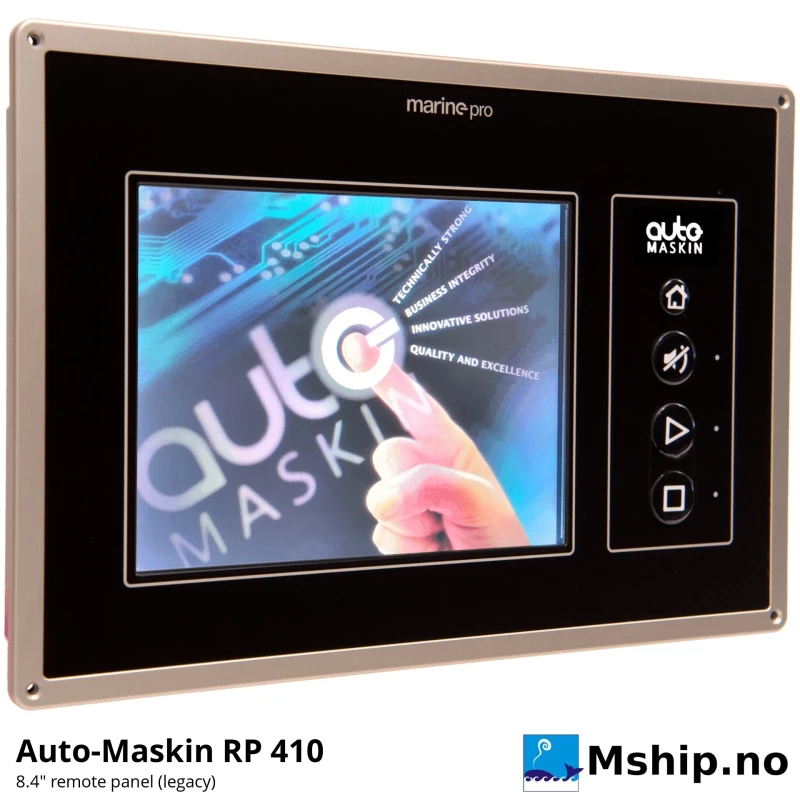

Auto-Maskin RP 410 Remote Panel – 8.4" remote panel – replaced by RP 480i.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Auto-Maskin
Model	RP 410 (Marine Pro 400, 1st generation – discontinued)
Manufacturers part number	1006452
Performance specification	8.4" transflective colour touchscreen 640 x 480; monitors and controls up to eight 200 / 400 Series DCUs; front IP44
Class	IACS type approved: LR (LR23405374TA), BV (20519/D0), ABS (PDA 24-2515035-1-PDA), KR (CPH17663-AC001), CCS (BG23PTB00001) – Marine Pro 400 Series (RP 410)

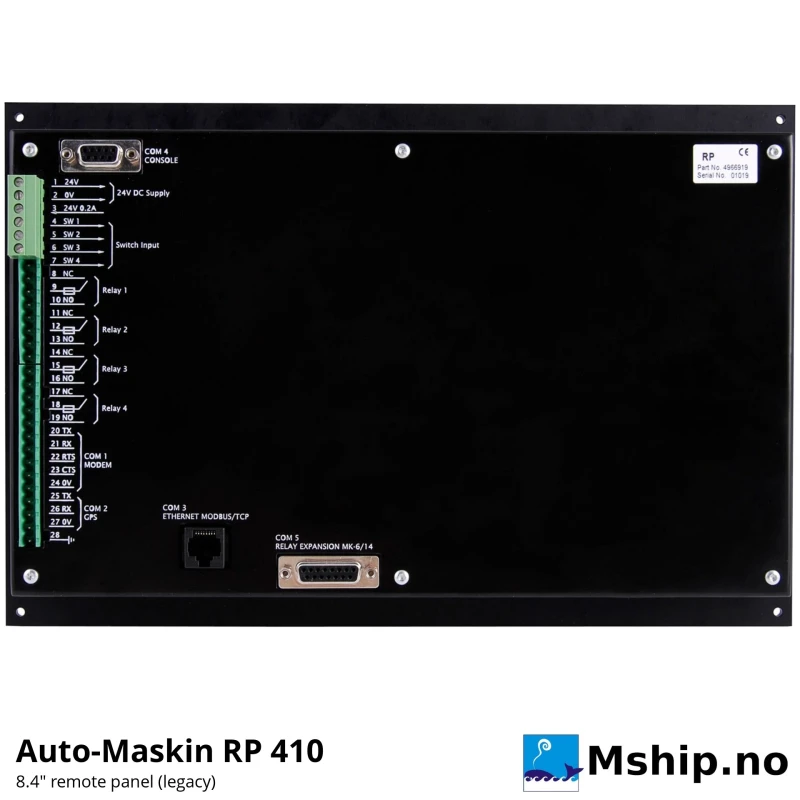

Other	4 switch inputs (opto-coupled), 4 potential-free relays (1 A), MK-14 relay expansion port
Weight	2.1 kg
Volt	18-32 VDC (24 VDC nominal)
Working temperature max, celsius degrees	Operating +5 to +55 °C

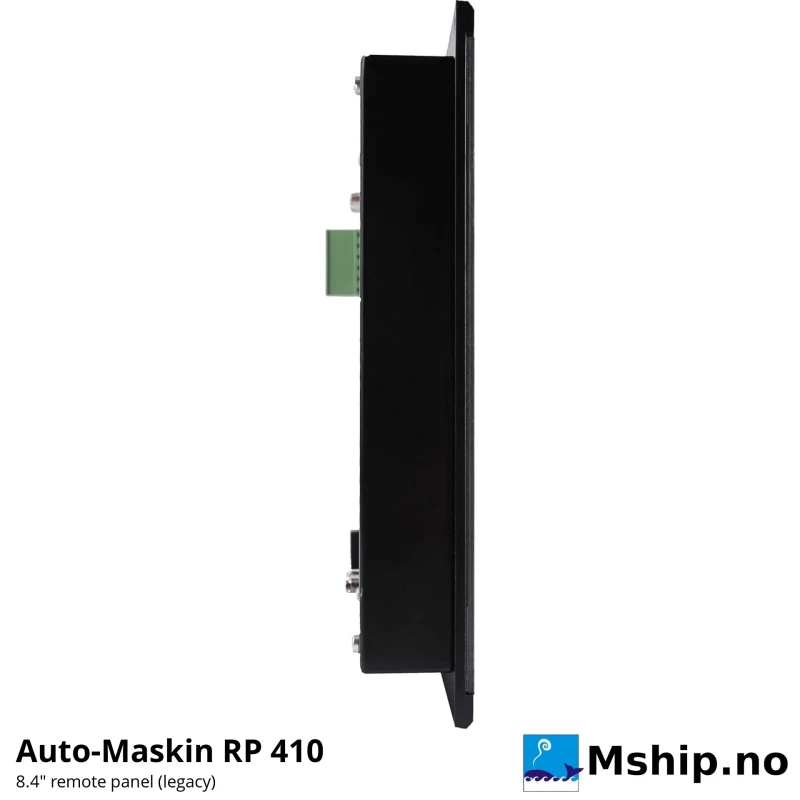

DIMENSIONs	320 x 220 x 56 mm (W x H x D)

More info

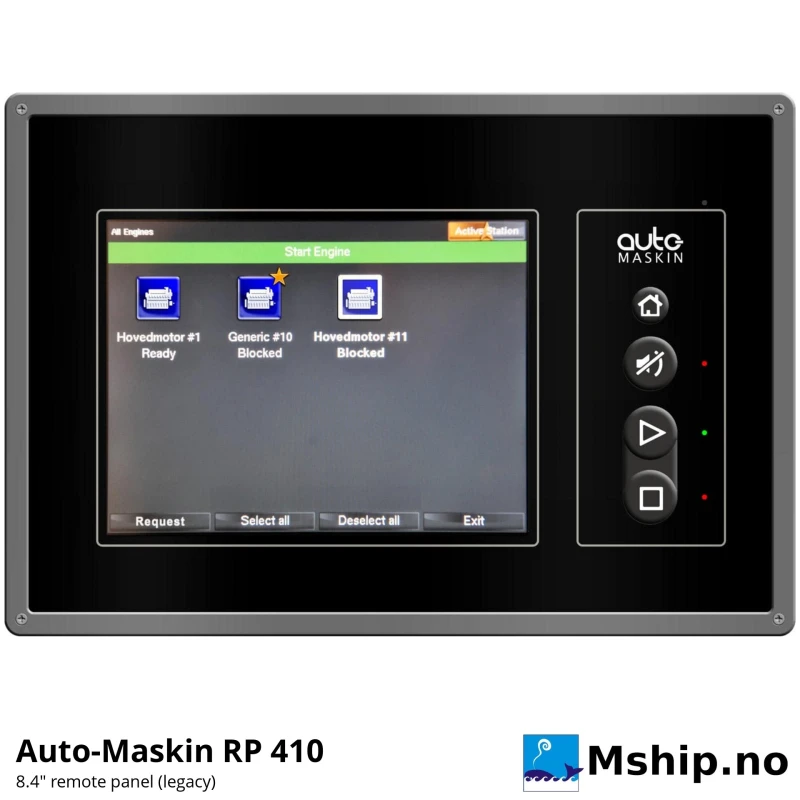

The RP 410 is a class-approved 8.4" colour touchscreen remote panel for console mounting. It monitors and controls up to eight engine controllers in the 200 or 400 Series and configures itself – any change in an engine controller is shown on the RP 410 without operator action.

It is discontinued; Auto-Maskin's replacement is the Auto-Maskin RP 480i Remote Panel.

The original Auto-Maskin documentation is in the downloads below.

We can often supply used units and spare parts, or help with the change to the current model. Contact us with your request.
