New Auto-Maskin RP 410E Remote Panel (legacy) — Manufacturer: Auto-Maskin, Model: RP 410E (Marine Pro 400 – discontinued), Manufacturers part number: 1006446, Performance specification: 8.4" colour touchscreen 640 x 480; up to eight 200 / 400 Series DCUs; IP56 front, Class: IACS type approved: DNV (TAA00000Z6), LR (LR23405374TA), BV (20519/D0), ABS (PDA 24-2515035-1-PDA), KR (CPH17663-AC001), CCS (BG23PTB00001) – Marine Pro 400 Series (RP 410E), Other: 4 switch inputs, configurable potential-free relays (form C), MK-14 relay expansion, Weight: 2.1 kg incl. connectors, Volt: 18-32 VDC (24 VDC nominal), Working temperature max, celsius degrees: Operating -20 to +70 °C, Remarks: Ethernet 10/100, USB 2.0, DIMENSIONs: 320 x 220 x 56 mm (W x H x D); cut-out 302 x 184 mm, access depth 110 mm View larger
Previous Next

Auto-Maskin RP 410E Remote Panel (legacy)

AM1006446

New product

Auto-Maskin RP 410E Remote Panel – 8.4" remote panel – replaced by RP 480i.

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Auto-Maskin
Model RP 410E (Marine Pro 400 – discontinued)
Manufacturers part number 1006446
Performance specification 8.4" colour touchscreen 640 x 480; up to eight 200 / 400 Series DCUs; IP56 front
Class IACS type approved: DNV (TAA00000Z6), LR (LR23405374TA), BV (20519/D0), ABS (PDA 24-2515035-1-PDA), KR (CPH17663-AC001), CCS (BG23PTB00001) – Marine Pro 400 Series (RP 410E)

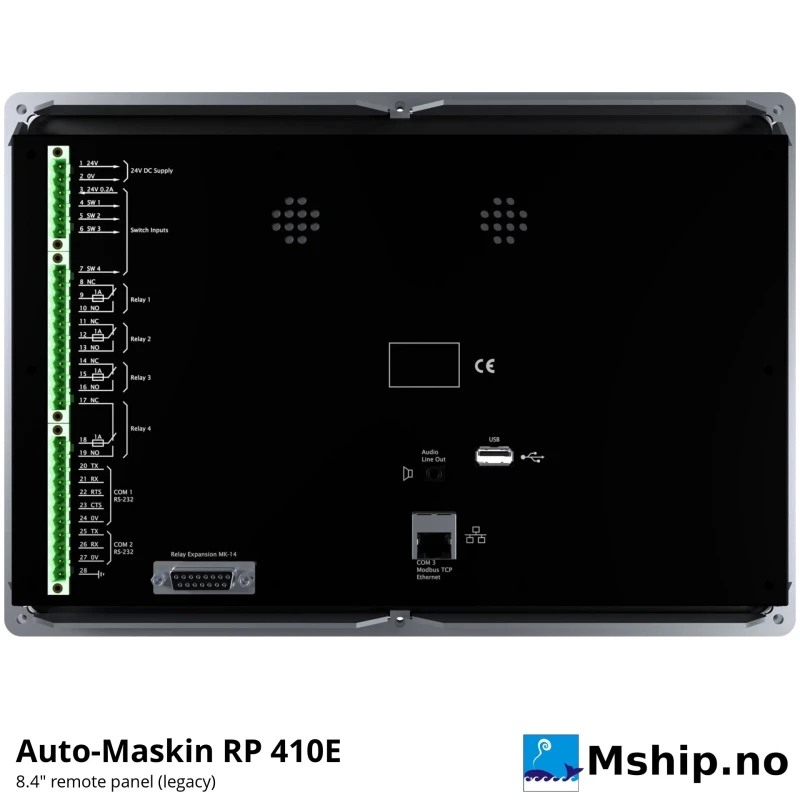

Other 4 switch inputs, configurable potential-free relays (form C), MK-14 relay expansion
Weight 2.1 kg incl. connectors
Volt 18-32 VDC (24 VDC nominal)
Working temperature max, celsius degrees Operating -20 to +70 °C
Remarks Ethernet 10/100, USB 2.0
DIMENSIONs 320 x 220 x 56 mm (W x H x D); cut-out 302 x 184 mm, access depth 110 mm

More info

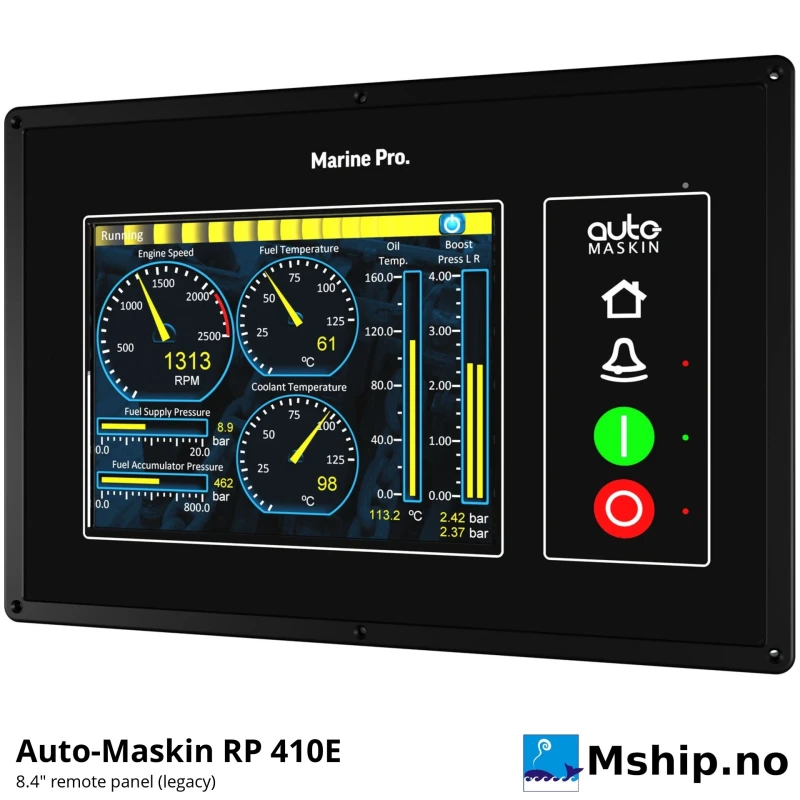

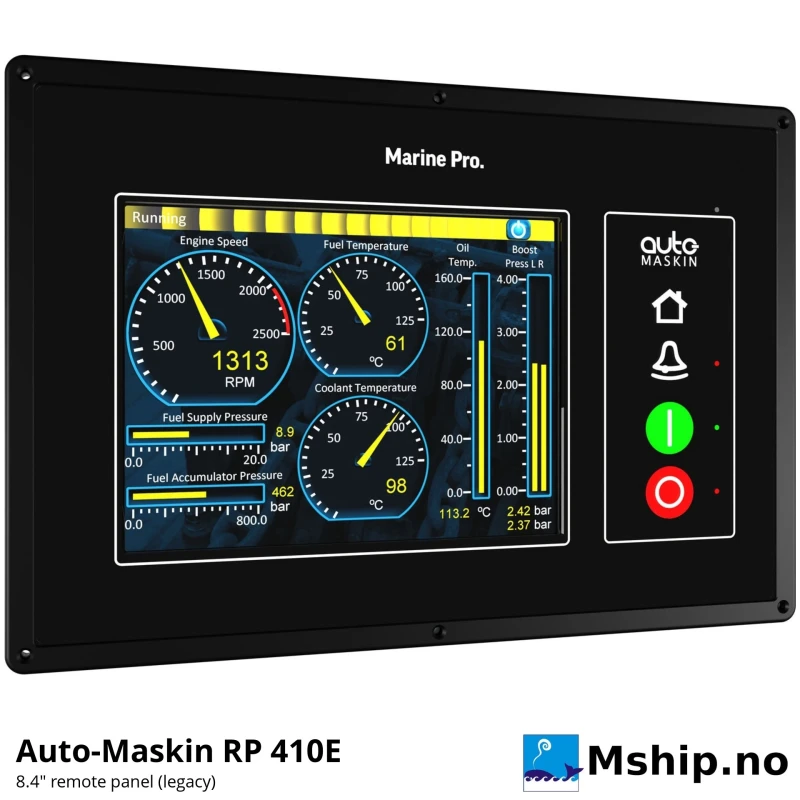

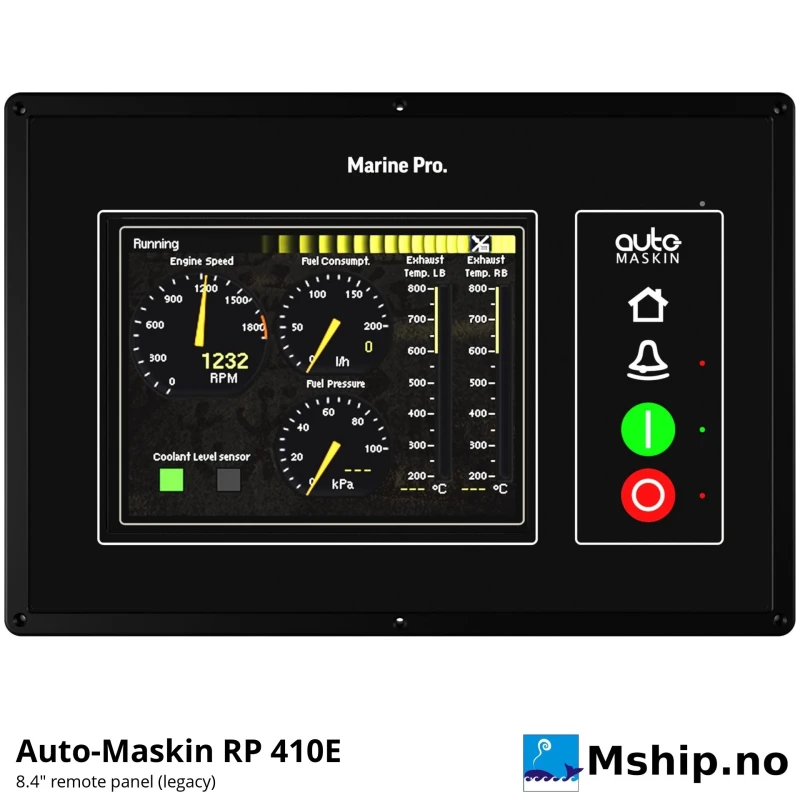

The RP 410E is an 8.4" colour touchscreen remote panel that monitors and controls up to eight Marine Pro 200 or 400 Series engine controllers. It is self-configuring and was the direct replacement for the RP 410.

It is discontinued; Auto-Maskin's replacement is the Auto-Maskin RP 480i Remote Panel.

The original Auto-Maskin documentation is in the downloads below.

We can often supply used units and spare parts, or help with the change to the current model. Contact us with your request.

Accessories

Download

400E Series Installation Manual

Auto-Maskin

Download (704.83k)

400 / 200 Series User's Manual

Auto-Maskin, firmware 3.11P8

Download (2.32M)

400E / 200E / LT Configuration Manual

Auto-Maskin, firmware 3.11P8

Download (4.61M)

DNV Type Approval TAA00000Z6

Marine Pro 400 Series, rev. 8

Download (99.77k)

LR Type Approval LR23405374TA

Marine Pro 400 Series

Download (928.4k)

BV Type Approval 20519/D0

Marine Pro 400 Series

Download (116.27k)

ABS Product Design Assessment 24-2515035-1-PDA

Marine Pro 400 Series

Download (334.43k)

KR Type Approval CPH17663-AC001

Marine Pro 400 Series

Download (307.25k)

CCS Type Approval BG23PTB00001

Marine Pro 400 Series

Download (400.19k)

EU Declaration of Conformity RP 400E

Auto-Maskin

Download (66.45k)

RP 410E Product Sheet

Auto-Maskin, v2.2

Download (774.7k)

RP 410E Data Sheet

Auto-Maskin, rev. 24 Oct 2023

Download (64k)

RP 410E Quick Installation Guide

Auto-Maskin

Download (300.38k)

RP 410E Dimension Drawing

Auto-Maskin rev. D

Download (228.69k)
