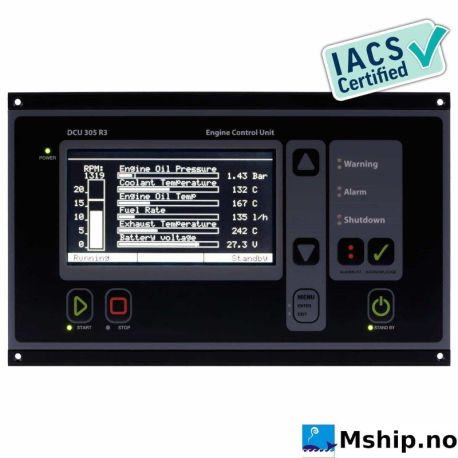

DCU 305 R3 LT Engine Controller

DCU_305_R3_LT_Engine_Controller

New product

The proven choice for classed, low-cost mechanical engines.

The DCU 305 R3 LT is a class-approved engine panel for non-CAN bus engines, and is the direct successor for the DCU 305 R2 in all variants.

In addition, it combines the Classification Society requirements for separate monitoring and safety functions in one unit.

More details

  • Ask About This Product
  • More info

    The proven choice for classed, low-cost mechanical engines.

    The DCU 305 R3 LT is a class-approved engine panel for non-CAN bus engines, and is the direct successor for the DCU 305 R2 in all variants.

    In addition, it combines the Classification Society requirements for separate monitoring and safety functions in one unit.

    There is another version of this panel, the DCU 305 R3, that includes a J1939 CAN bus interface for engines equipped with an ECM.

    The panel can be configured to run in one of four main operating modes. These are:

    • Propulsion
    • Auxiliary
    • Emergency
    • Combined Auxiliary/Emergency

    The included wire terminal module RK-66 has multiple I/O channels, where some have fixed functionality and others are configurable to any available function or event.

    Expansion of physical I/O is available if necessary. The AK-6 unit add six 4-20 mA channels and the MK-14 unit add 14 relay channels.

    Finally, configuring the panel is a breeze with the extremely user-friendly Windows software Rudolf R3. Configuration files from the DCU 305 R3 are fully compatible.

    Size

    w 260 x h 160 x d 60 mm

    Cut out

    W 230 x H 146 mm

    Weight

    2.6 kg

    Screen

    5.6", Resolution 240 x 128

    The DCU 305 R2 can be attached to the following products:

    RSP 305 Remote Panel

    For Rudolf configuration software, manufacturers certificates or other documents, please inquire.

    Download

    User manual

    DCU 305 R3 and R3 LT User Manual

    Download (500.83k)

    Quick install guide

    Quick installation guide DCU_305_R3_LT

    Download (220.25k)

    Datasheet

    DCU 305 R3 LT Data sheet

    Download (46.74k)
