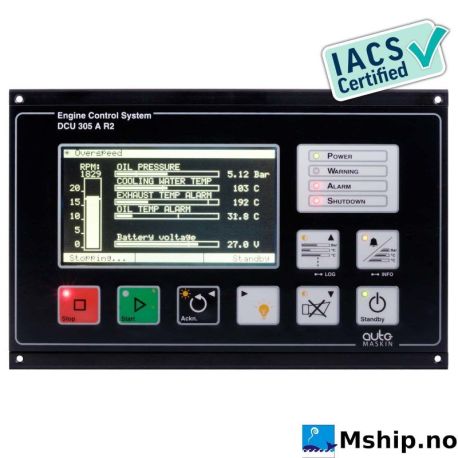

DCU 305 A R2 Engine Controller https://mship.no View larger
Previous Next

DCU 305 A R2 Engine Controller

DCU_305_A_R2_controller

New product

DCU 305 R2 is the legacy workhorse engine panel.

All variants, such as the types with a key-switch (the P-model) and also the types with a CAN bus interface are still  available as aftermarket spare parts.

More details

    • Data sheet

    ManufacturerAuto-Maskin
    ModelDCU 305 A R2
    Manufacturers part number1006400
    ClassIACS Certified

    More info

    DCU 305 R2 is the legacy workhorse engine panel.

    All variants, such as the types with a key-switch (the P-model) and also the types with a CAN bus interface are still  available as aftermarket spare parts.

    Since its inception in 1997, thousands of boats now rely on this engine panel every day. The DCU 305 R2 has been the main panel in the 300 Series, and it could be delivered with- and without a J1939 engine CAN bus interface.

    Finally, configuring the unit is a breeze with the user-friendly Windows software Rudolf.

    Size

    w 250 x h 160 x d 60 mm

    Cut out

    W 230 x H 146 mm

    Weight

    2.6 kg

    Screen

    5.6", Resolution 240 x 128

    The DCU 305 R2 can be attached to the following products:

    RSP 305 Remote Panel




    For Rudolf configuration software, manufacturers certificates or other documents, please inquire.

    Download

    305 R2 User manual

    Download (1.14M)

    305 R2 Install Manual

    Download (1.96M)

    305 R2 quick install guide

    Download (231.38k)

    DCU 305 R2 Product Sheet

    Download (705.12k)

    305 R2 Dimensional Drawings

    Download (126.41k)

    Rudolf User Manual for 305 R2

    Download (358.55k)

    305 R2 and R3 Troubleshooting

    Download (130k)

    DCU 305 R2 Com Manual

    DCU 305 R2 Communication Manual

    Download (157.97k)
