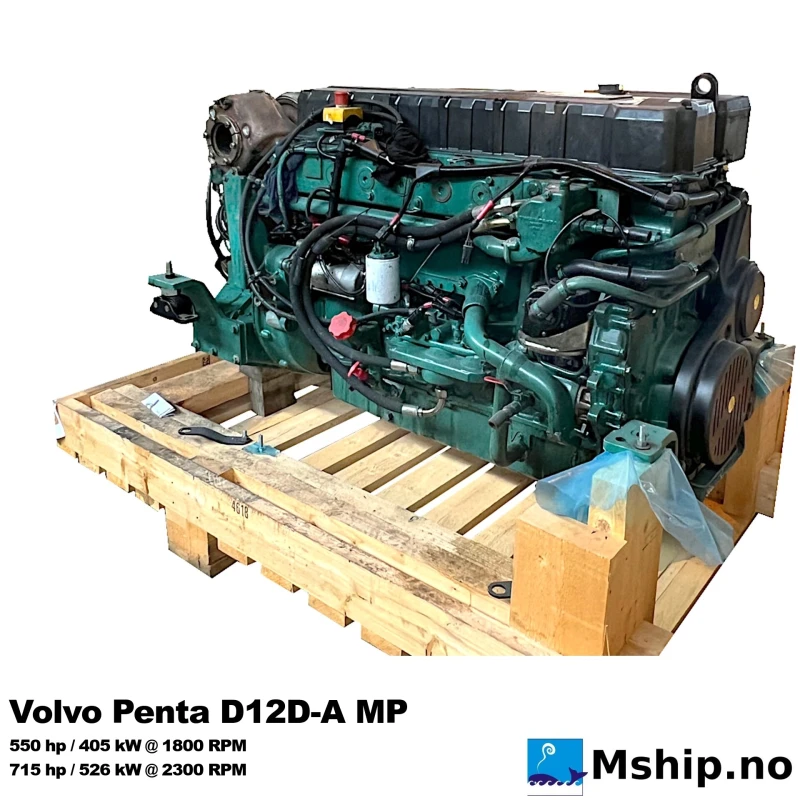

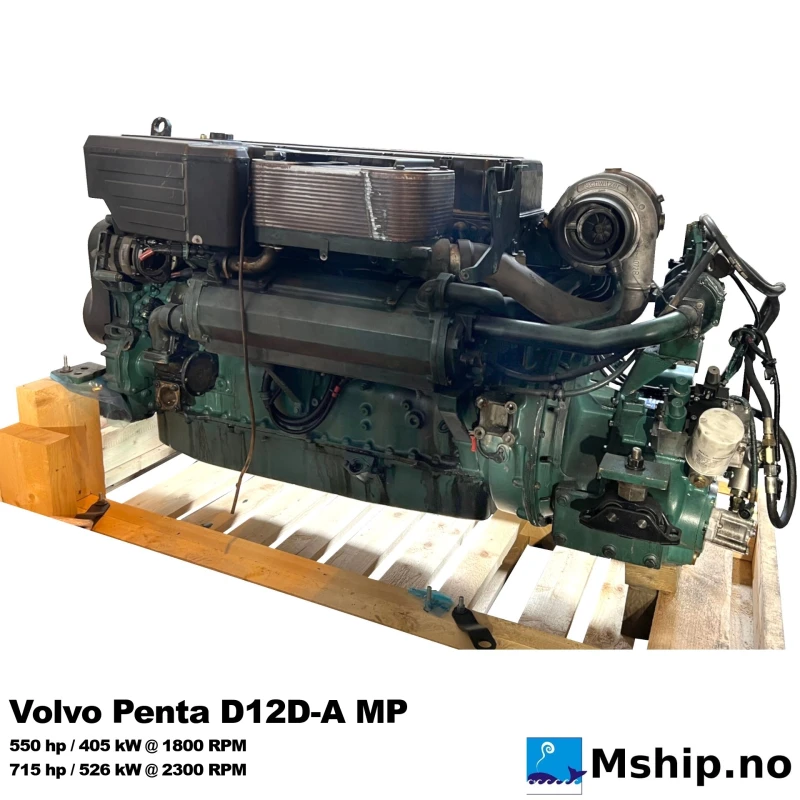

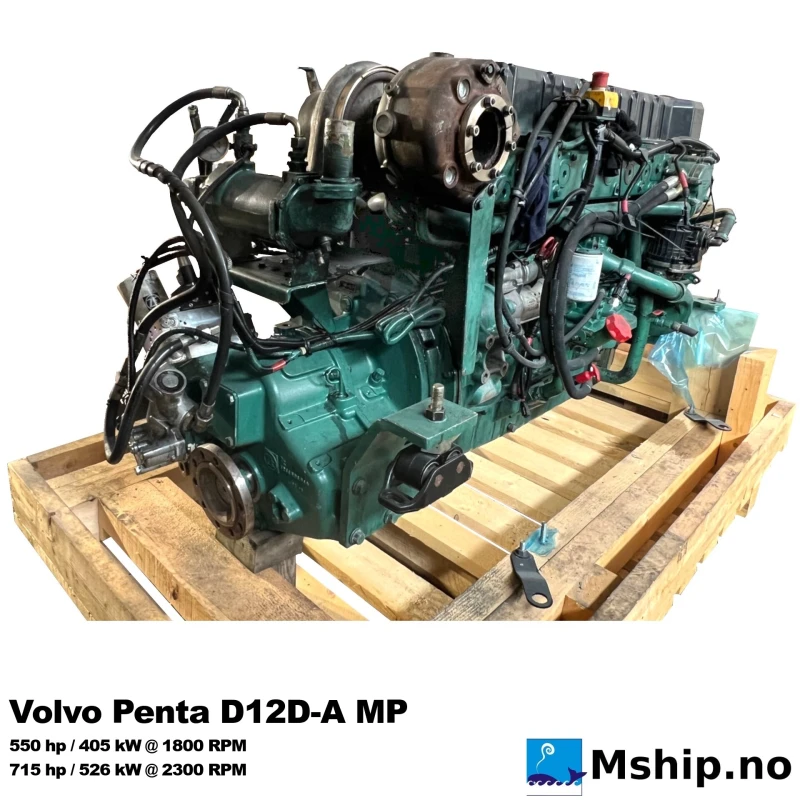

New Volvo Penta D12D-A MP — Manufacturer: Volvo Penta, Model: D12D-A MP, Manufacturers part number: 869186, Arrangement number: Bell View larger
Previous Next

Volvo Penta D12D-A MP

D12D-AMP-1012454370

Used

Volvo Penta D12D-A MP (INB)
Serial no. 1012454370
Product number 869186 – rated power 715 hp

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Volvo Penta
Model D12D-A MP (INB)
Manufacturers part number 869186
Arrangement number Bell housing SAE 2
Serial number 1012454370
Performance specification Sold as D12-615 / D12-650 – product number 869186
Year Delivery date 26 April 2005
HP 715 hp rated power (550 hp @ 1800 rpm EIAPP rating)
kW 526 kW rated power (405 kW @ 1800 rpm)
RPM 2300 rated / 1800 (550 hp rating)
Running Hours About 4500 since full overhaul / about 19500 since new.
Cylinder bore 131 mm
Piston Stroke 150 mm
Number of cylinders 6
Displacement 12,13 Liter
Cylinder configuration In line
Rotation direction CCW - Counter clockwise seen from aft
Fuel Type Diesel ASTM-D975 1-D & 2-D, EN 590 or JIS KK 2204
Class The engine complies with IMO NOx, SAV, US EPA Tier 2, EU RCD and EU IWW
Other Product family D12-INB, category Engine, application INB (inboard). EIAPP documentation for the 550 hp rating included. Compression ratio 16.5:1.
Weight 1400 kg without gear / Dry weight with reverse gear ZF325A-EB 1570 kg.
Gear type ZF325 A-EB available - sold separately
Gear ratio 1.733:1

More info

Volvo Penta D12D-A MP (INB)
Serial no. 1012454370
Product family: D12-INB
Category: Engine
Application: INB (inboard)
Sold as: D12-615 / D12-650
Product number: 869186
Rated power: 715 hp

Delivery date 26 April 2005
EIAPP documentation for the 550 hp @ 1800 rpm rating included.

About 4500 running hours since full overhaul.
About 19500 running hours since new.

Technical data (Volvo Penta D12 data sheet)
In-line 6-cylinder, 4-stroke, direct-injected, turbocharged marine diesel engine with aftercooler
Bore / stroke: 131 / 150 mm
Displacement: 12.13 l (740.2 in³)
Compression ratio: 16.5:1
Dry weight: 1400 kg, with reverse gear ZF 325A-EB 1570 kg
Fuel: ASTM D975 1-D & 2-D, EN 590 or JIS K2204

Six electronic unit injectors with 8-hole nozzles, four valves per cylinder with overhead camshaft, EDC electronic diesel control with self-diagnostics, fresh water cooled turbocharger and charge air cooler, wet cylinder liners, drop-forged crankshaft with seven main bearings, 24 V electrical system.

ZF 325-1A reverse gear available, sold separately. Gear ratio 1.733:1

Two identical engines – the sister engine is also available: Volvo Penta D12D-A MP, serial no. 1012454432.
