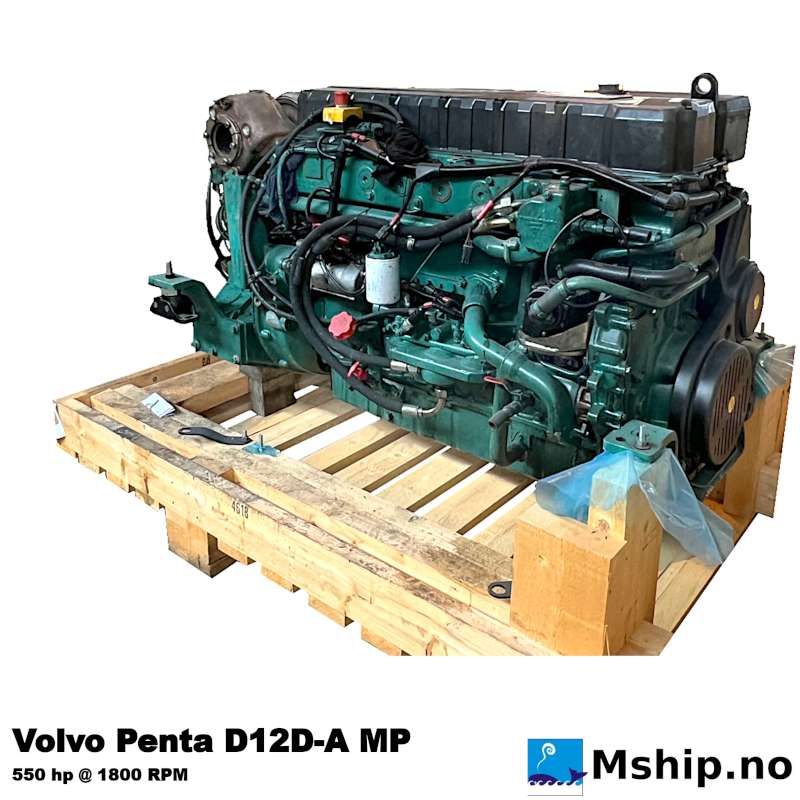

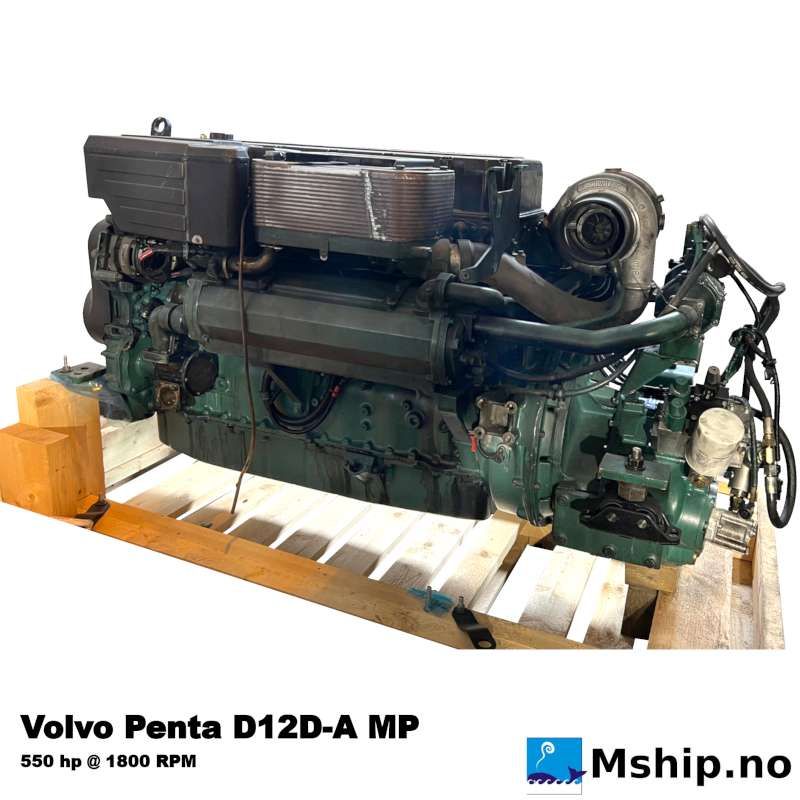

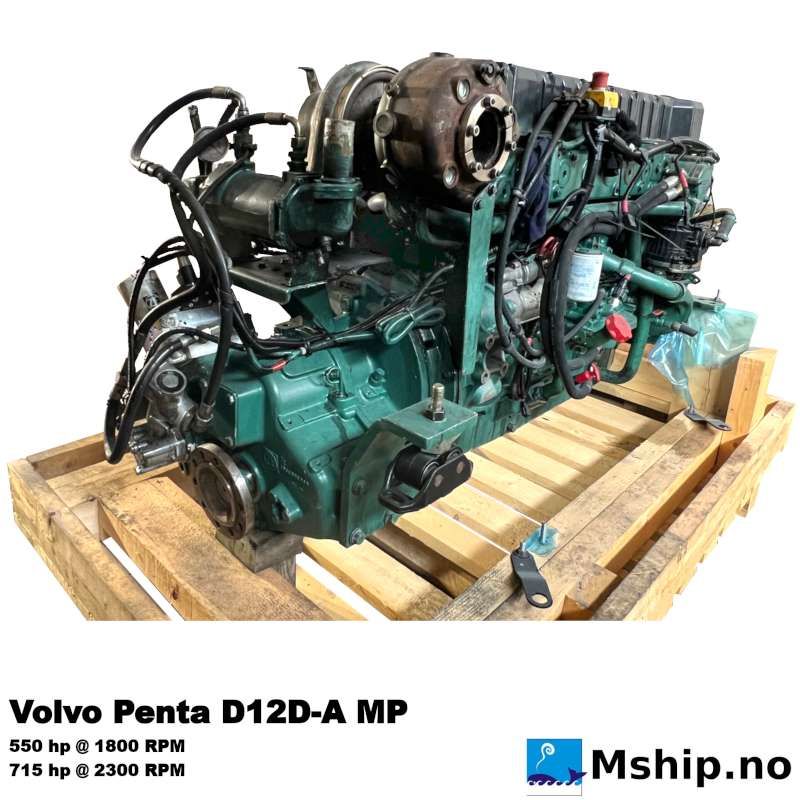

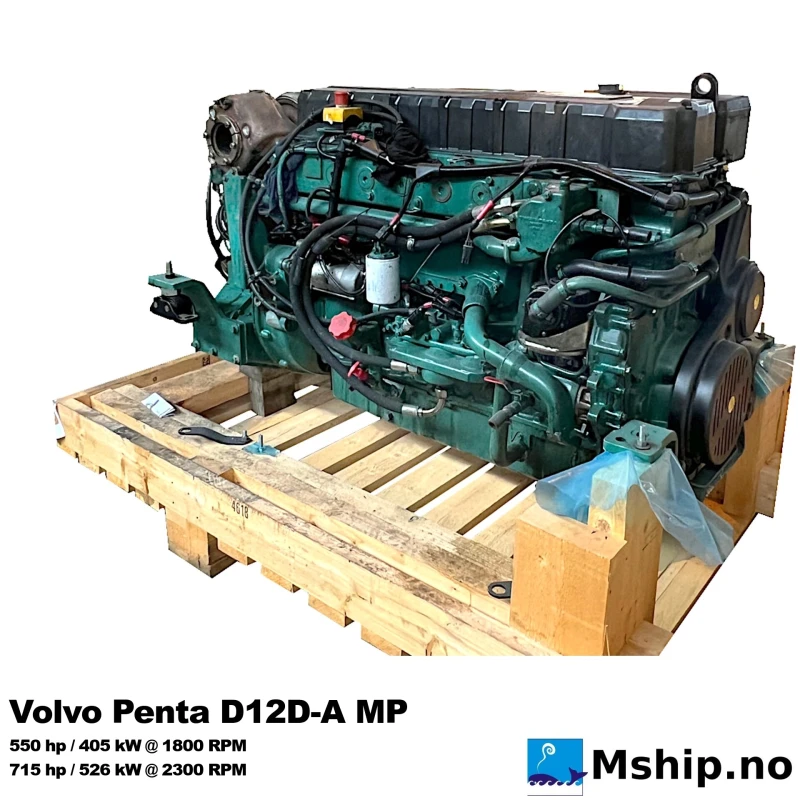

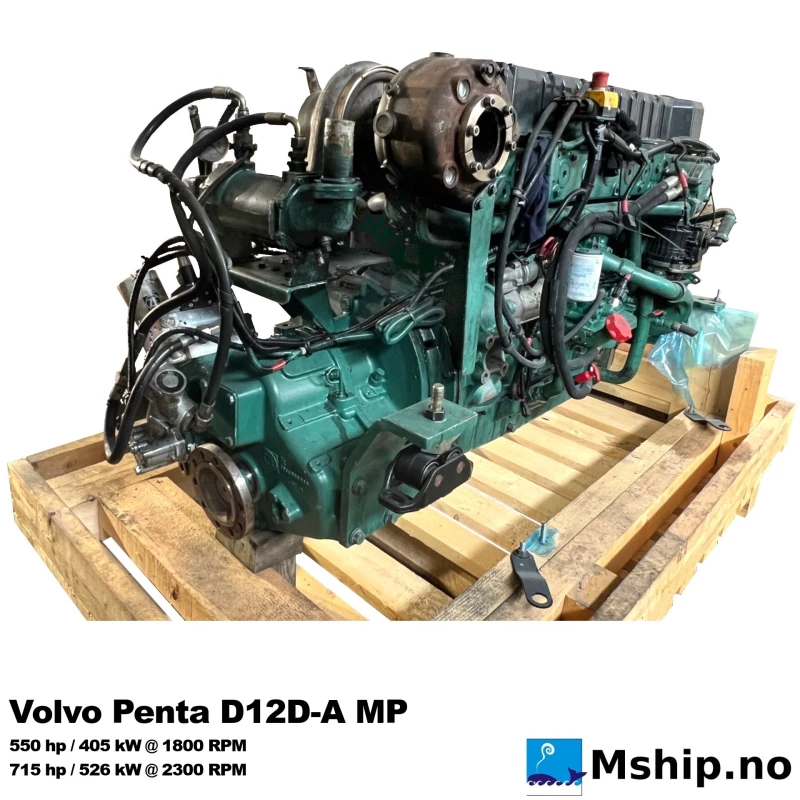

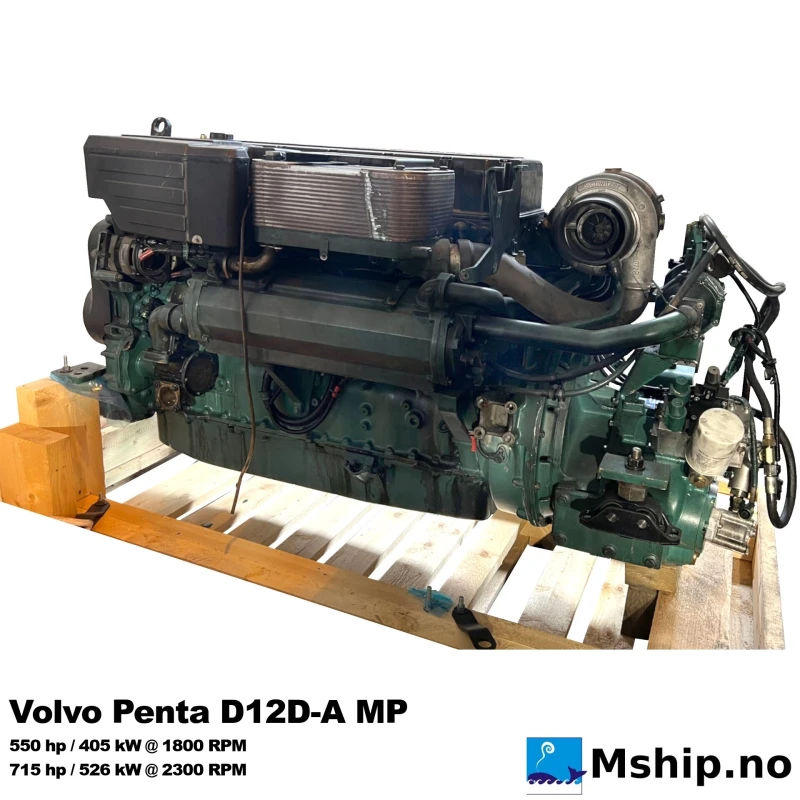

Volvo Penta D12D-A MP

D12D-AMP-1012454432

Used

Volvo Penta D12D-A MP

More details

    • Data sheet

    Manufacturer Volvo Penta
    Model D12D-A MP
    Manufacturers part number 869186
    Arrangement number Bell housing SAE 2
    Serial number 1012454370 and 1012454432
    Year Delivery date 26 April 2005
    HP 550 @ 1800 rpm / 715 @ 2300 rpm.
    kW 526 kW @ 715 rpm
    RPM 1800 / 2300
    Running Hours About 4500 since full overhaul / about 19500 since new.
    Cylinder bore 131 mm
    Piston Stroke 150 mm
    Number of cylinders 6
    Displacement 12,13 Liter
    Cylinder configuration In line
    Rotation direction CCW - Counter clockwise seen from aft
    Fuel Type Diesel ASTM-D975 1-D & 2-D, EN 590 or JIS KK 2204
    Class The engine complies with IMO NOx, SAV, US EPA Tier 2, EU RCD and EU IWW
    Other EIAPP documentation for 550 HP rating included with each engine.
    Weight 1400 kg without gear / Dry weight with reverse gear ZF325A-EB 1570 kg.
    Gear type ZF325 A-EB available - sold separately
    Gear ratio 1.733:1

    More info

    Two identical Volvo Penta D12D-A MP available in stock.

    550 hp @ 1800 RPM
    715 hp @ 2300 RPM

    About 4500 running hour since full overhaul.

    About 19500 running hours since new.

    ZF 325-1A gears available for both engines but sold separately.
    Gear ratio  1.733:1
