FSG PK 620 M III d 1576Z12-013.005

1576Z12013M005D

New product

FSG PK 620 - 46 M III d Precision Potentiometer

More details

    • Data sheet

    ManufacturerFSG
    ModelPK 620 - 46 M III d
    Manufacturers part number1576Z12-013.005
    Alternative part number1576Z12013.005 ELT403790
    OtherResistance 2KΩ/355° x 3 level

    More info

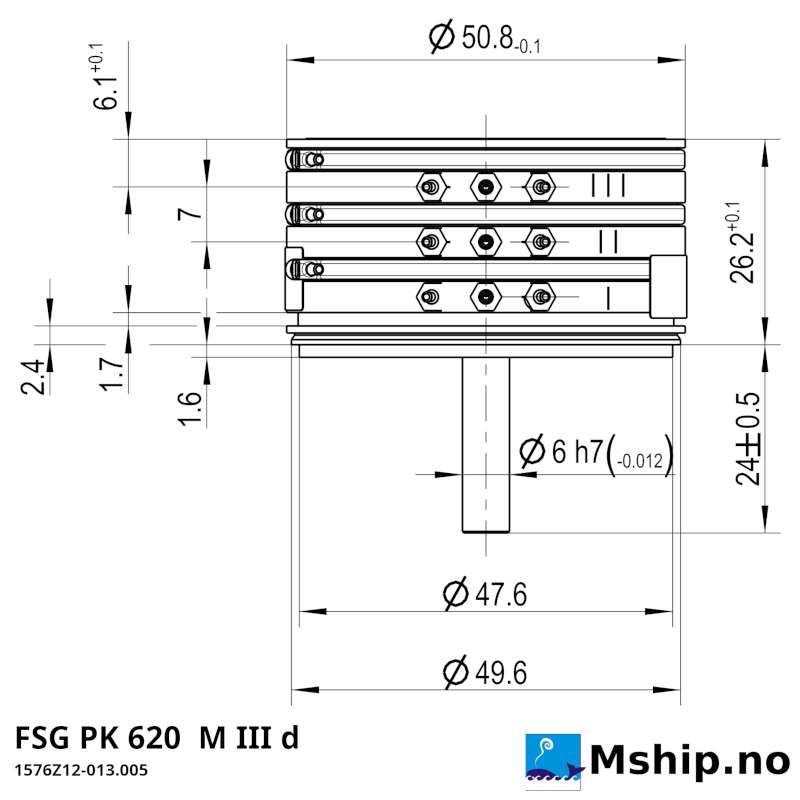

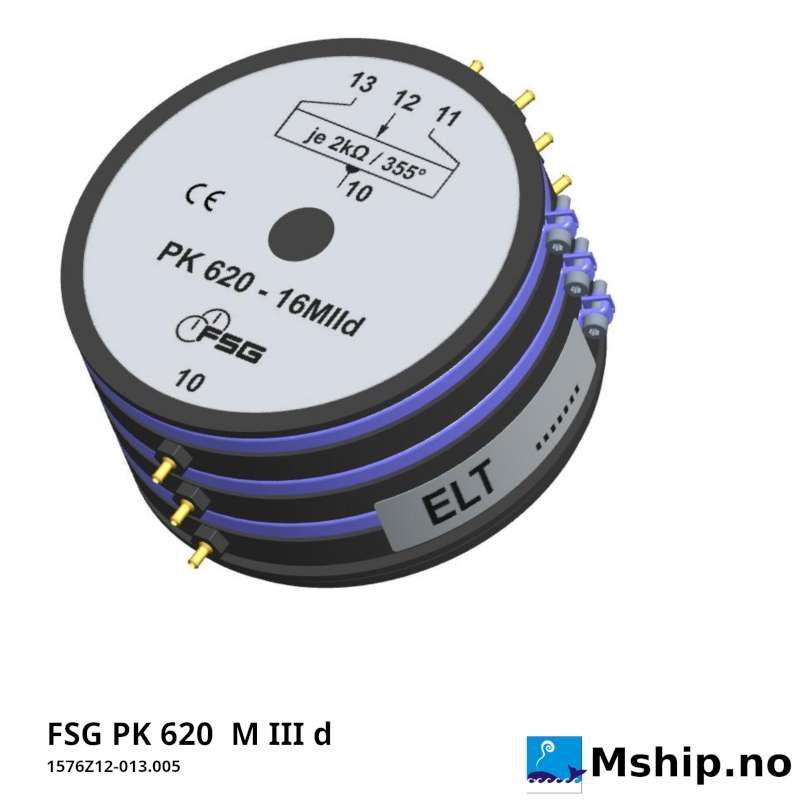

    FSG PK 620-46 M III d Precision Potentiometer

    Synchro housing size 20
    with 3 resistance levels
    with SD tracks
    rotating wiper

    Active angle 355° each
    each with center tap
    rotation counterclockwise
    ship-type design, i.e., with sintered bearing
    and increased contact pressure
    with red marking dot
    suitable for installation in KS135

    The active angle is 355°
    Level I     Resistance 2 kOhm ± 10%
    Level I I   Resistance 2 kOhm ± 10%
    Level I I I Resistance 2 kOhm ± 10%
