New FSG ELT PK620 M II d - 17 355° Gr Precision Rotary Potentiometer https://mship.no View larger

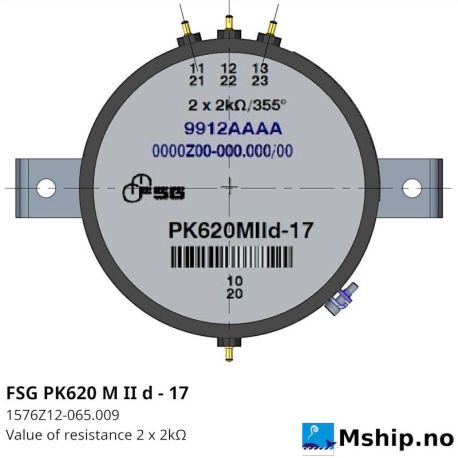

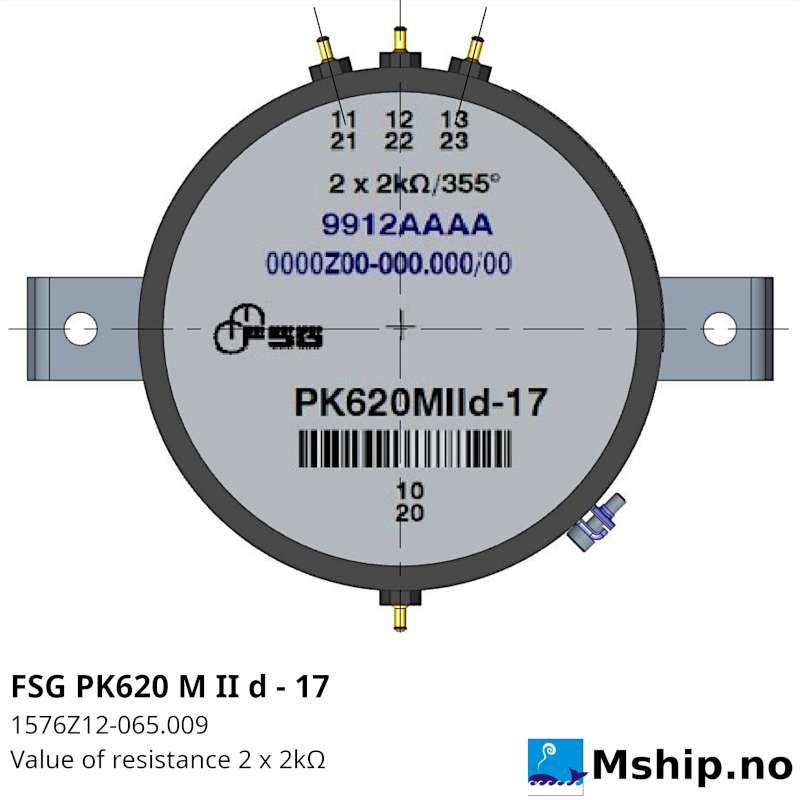

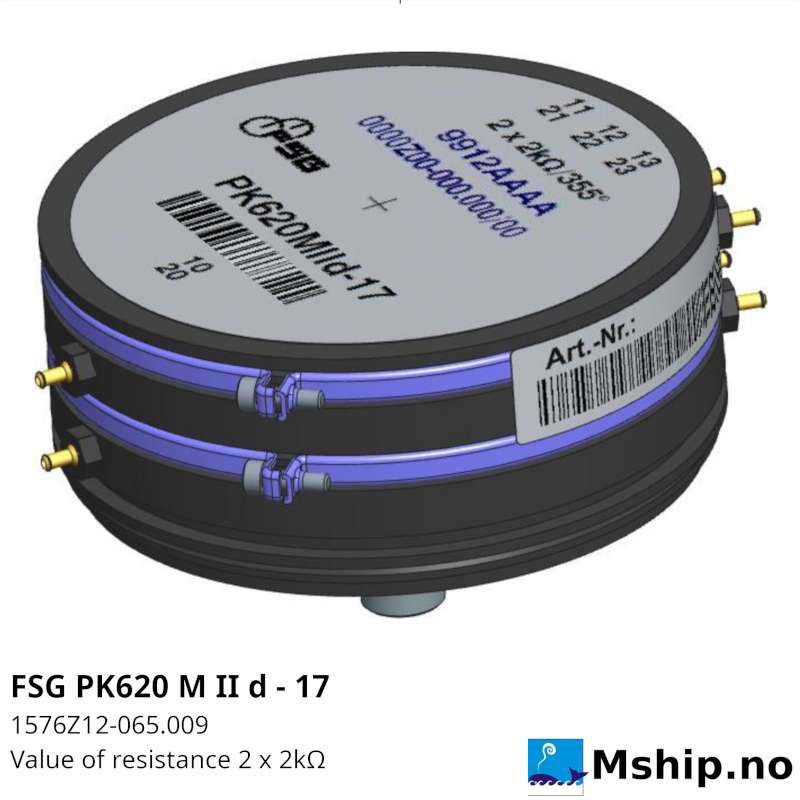

FSG ELT PK620 M II d - 17 355° Gr Precision Rotary Potentiometer

1576Z12065009

New product

FSG Precision Rotary Potentiometer

1576Z12-065.009

More details

    • Data sheet

    ManufacturerFernsteuergeräte / FSG
    Model1576Z12-065.009
    Manufacturers part number1576Z12-065.009
    Alternative part number1576Z12065009
    OtherValue of resistance 2 x 2k Ohm. Active angle 2 x 355°

    More info

    FSG 1576Z12-065.009

    Precision Rotary Potentiometer

    Electrical Data:

    • Value of resistance 2 x 2k
    • Tolerance of resistance 10%
    • Active angle 2 x 355°
    • Center tapping each track
    • Tolerance of linearity 0.2%
    • Temperature coefficient 200 ppm
    • Capacity 2 W
    • Max. breaking capacity of wiper 5 mW
    • Max. wiper current 5 mA
    • Test voltage 500V, 50Hz, 1 min
    • Temperatur range -50...+80°C
    • Inductance < 1 mH
    • Suitable forhazardous areas: intrinsically safe
