Gunclean ToftejorgTM T-82

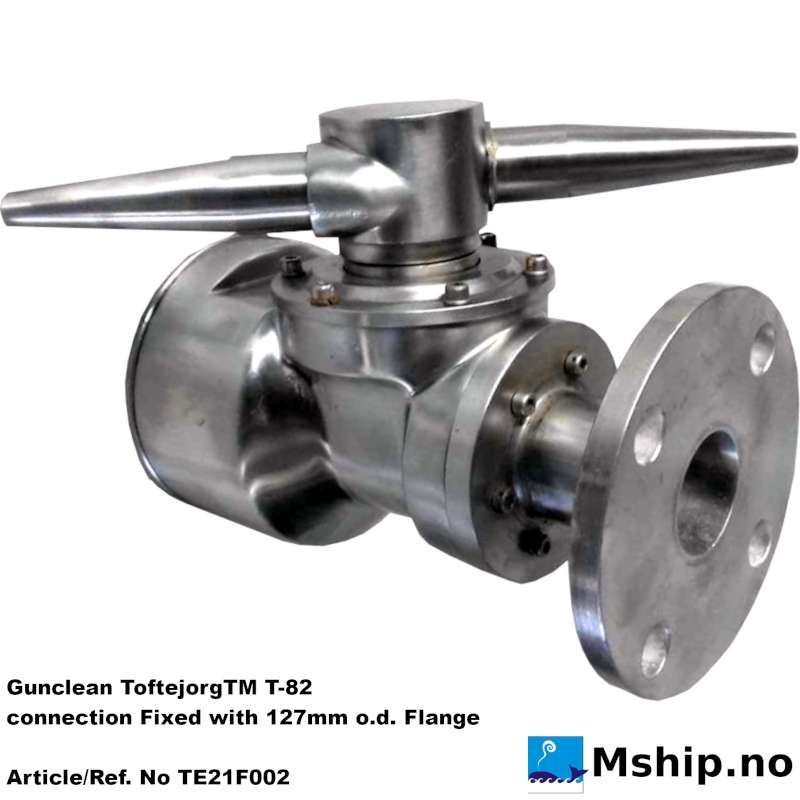

Gunclean ToftejorgTM T-82
connection Fixed with 127mm o.d. Flange

Article/Ref. No TE21F002

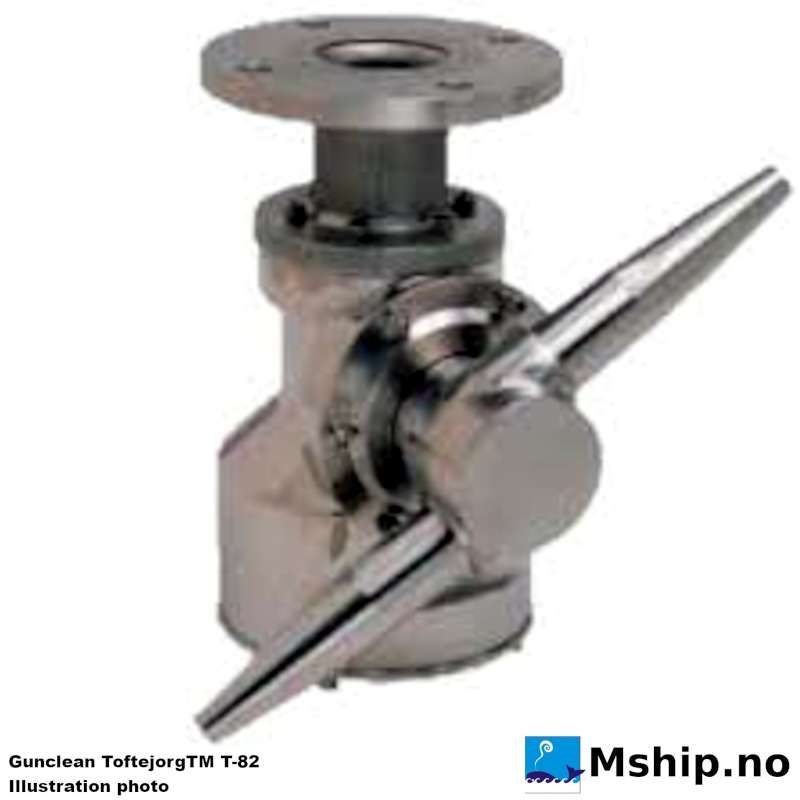

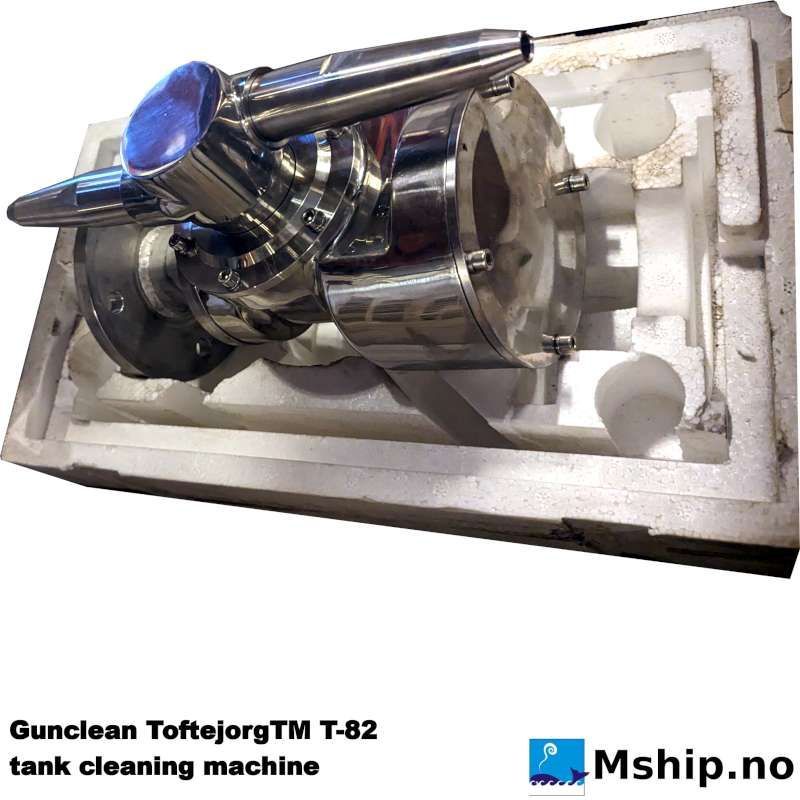

Gunclean ToftejorgTM T-82
tank cleaning machine

The Gunclean Toftejorg T-82 is a media driven tank cleaning machine. The internal mechanical parts
are isolated by seals and lubricated by pre-packed grease.

Functioning
The flow of the cleaning fluid into the machine passes through a turbine, which is set into rotation. The
impeller rotation is through a gearbox transformed into a combined horizontal rotation of the machine
body and a vertical rotation of the nozzles.
The combined motion of the machine body and the nozzles ensures a fully indexed tank cleaning
coverage. After 111⁄4 revolutions of Hub with nozzles (103/4 revolutions of the machine body), one
coarse cleaning pattern is laid out on the tank surface. During the following rounds, this pattern is
repeated 3 times, each of which is displaced 1⁄4 of the mesh in the pattern. After a total of 45 revolutions
of the Hub with nozzles (43 revolutions of the machine body), a complete cleaning pattern has been
laid out, and the first pattern is repeated.
