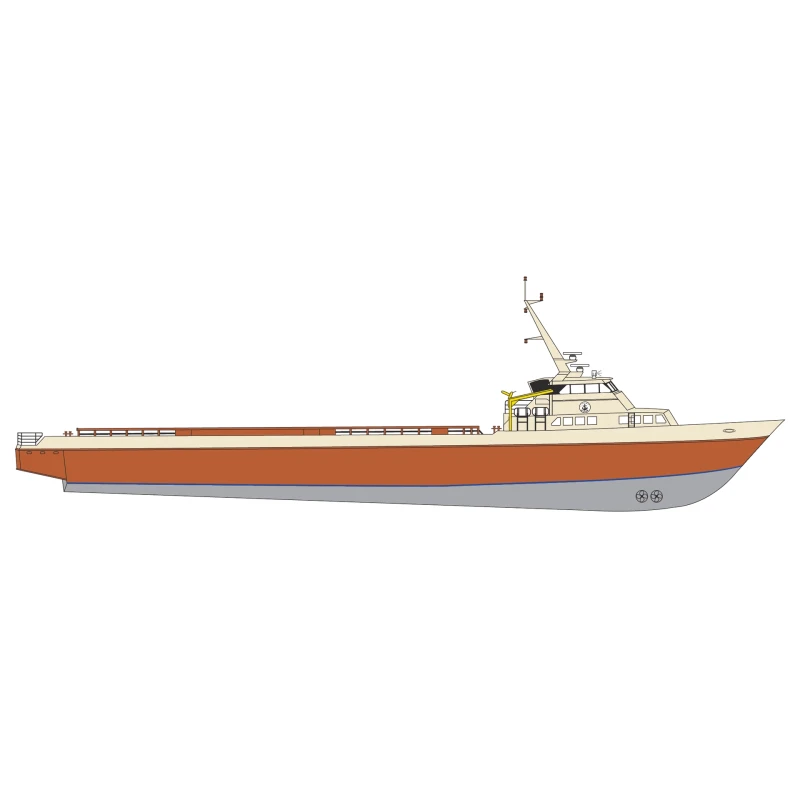

New 170' Fast Supply Vessel, DP2, built 2006, yard no. 47 – profile drawing View larger

170' Fast Supply Vessel, DP2, built 2006, yard no. 47

VSL2026-119347396

Used

170' Fast Supply Vessel, built 2006, 4 x Caterpillar 3512B, 7,240 BHP, DP2, 80 passengers. Offered subject to availability.

More details

Price on request

or call +47 908 92 500

Data sheet

Year 2006
HP 7240
Class ABS High-Speed Regulations, ABS Loadline, ABS HSC Crewboat, ABS A1, USCG Certified
Passengers 80
Length Overall LOA Meter 51.82
Molded Breadth Meter 9.14
Molded Depth Meter 3.84
Cargo Deck Area: 261 m² (2,808 sq ft)
Deck Cargo Capacity: 240 LT (244 t)
Deadweight Tonnage: 311 LT (316 t)
Gross tonnage ITC (registred) 336
Fuel Oil: 19,959 US gal (75.6 m³)
Fresh Water M³ 900 US gal (3.41 m³)
Ballast M³ 39,989 US gal (151.4 m³)
ACCOMMODATIONS: 10 berths
Main Engines: 4 x Caterpillar 3512B, total 7,240 BHP
Bow Thrusters: 2 x 150 HP Thrustmaster tunnel thrusters
Total Propulsion HP: 7240
Ship’s Service Generators: 2 x 80 kW
Positioning: DP2
LIFESAVING EQUIPMENT 4 x 25-man Life Rafts
Firefighting: 1 x FiFi monitor, 2,500 GPM
Maximum speed 26 knots
Shipyard Breaux Brothers Enterprises
Yard number 47

More info

170' Fast Supply Vessel (FSV) / crew boat, built 2006 by Breaux Brothers Enterprises (yard number 47). 4 x Caterpillar 3512B main engines, 7,240 BHP in total, DP2, deck cargo 240 LT (244 t) and seating for 80 passengers.

  • Built 2006 by Breaux Brothers Enterprises, yard number 47
  • Dimensions 170 x 30 x 12.6 ft (51.82 x 9.14 x 3.84 m)
  • Clear deck 106 x 24 ft (32.31 x 7.32 m), cargo deck area 261 m², deck cargo 240 LT (244 t)
  • Main engines: 4 x Caterpillar 3512B, total 7,240 BHP
  • Thrusters: 2 x 150 HP Thrustmaster tunnel thrusters
  • Service speed approx. 26 knots
  • Generators: 2 x 80 kW
  • Fuel 19,959 US gal (75.6 m³), ballast 39,989 US gal (151.4 m³), potable water 900 US gal (3.41 m³)
  • Dynamic positioning: DP2
  • Firefighting: 1 x monitor @ 2,500 GPM
  • Life-saving: 4 x 25-man Life Rafts
  • Accommodation 10 berths, 80 passenger seats
  • Electronics: 2 x JRC JMA 2344 Radars, JRC A3 GMDSS HF/MF, 2 x Furuno FM880S DSC VHFs, Marine Technologies Bridge Mate X-Pack DS IMO, Furuno DS-80 Dual Axis DS AIS, Furuno FE700 IMO Sounder, Furuno FS-1503 SSB Radio, Standard Horizon LH-5 Hailer, 2 x Icom IC-M302 VHFs, 3 x Icom GM1600 Handheld Emergency VHFs, 2 x ACR SARTs, ACR 2774 EPIRB, JRC NCR330 Navtex, 2 x Meridian Gyro Compasses
  • Class: ABS High-Speed Regulations, ABS Loadline, ABS HSC Crewboat, ABS A1, USCG Certified

Offered subject to availability. The owner will consider selling this vessel, depending on her operational commitments – please contact us for current status, location and price.

Specifications are taken from the vessel's specification sheet and are given in good faith, but not guaranteed. Contact us and quote reference VSL2026-119347396.
