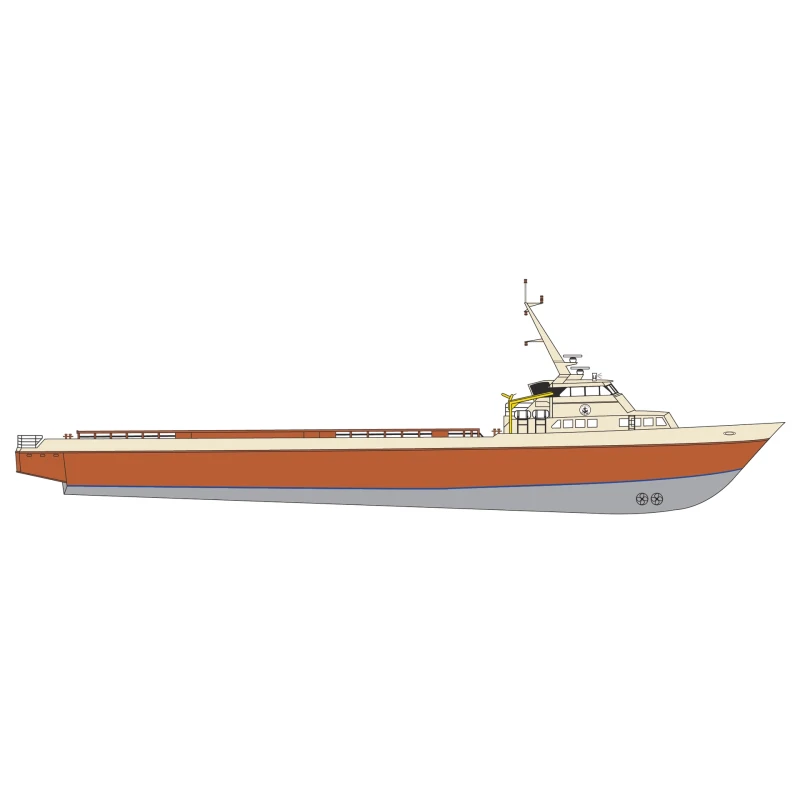

New 194' Fast Supply Vessel, DP2, built 2013, yard no. 60 – profile drawing View larger

194' Fast Supply Vessel, DP2, built 2013, yard no. 60

VSL2026-139624897

Used

194' Fast Supply Vessel, built 2013, 4 x Caterpillar 3512C HD, 7,240 BHP, DP2, 58 passengers. Offered subject to availability.

More details

Price on request

or call +47 908 92 500

Data sheet

Year 2013
HP 7240
Class ABS Loadline, ABS A1 Class, ABS AMS (HSC Crewboat), ABS DP2
Passengers 58
Length Overall LOA Meter 59.13
Molded Breadth Meter 9.14
Molded Depth Meter 4.27
Cargo Deck Area: 300 m² (3,234 sq ft)
Deck Cargo Capacity: 380 LT (386 t)
Deadweight Tonnage: 450 LT (457 t)
Gross tonnage ITC (registred) 449
Fuel Oil: 34,000 US gal (128.7 m³)
Fresh Water M³ 900 US gal (3.41 m³)
Ballast M³ 62,000 US gal (234.7 m³)
ACCOMMODATIONS: 12 berths
Main Engines: 4 x Caterpillar 3512C HD, total 7,240 BHP
Bow Thrusters: 2 x 200 HP Thrustmaster 30TT175H tunnel thrusters
Total Propulsion HP: 7240
Ship’s Service Generators: 2 x 80 kW
Positioning: DP2
LIFESAVING EQUIPMENT 4 x 25-man Life Rafts
Firefighting: 1 x FiFi monitor, 2,500 GPM
Maximum speed 28 knots
Shipyard Breaux Brothers Enterprises
Yard number 60

More info

194' Fast Supply Vessel (FSV) / crew boat, built 2013 by Breaux Brothers Enterprises (yard number 60). 4 x Caterpillar 3512C HD main engines, 7,240 BHP in total, DP2, deck cargo 380 LT (386 t) and seating for 58 passengers.

  • Built 2013 by Breaux Brothers Enterprises, yard number 60
  • Dimensions 194 x 30 x 14 ft (59.13 x 9.14 x 4.27 m)
  • Clear deck 132 ft x 24 ft 6 in (40.23 x 7.47 m), cargo deck area 300 m², deck cargo 380 LT (386 t)
  • Main engines: 4 x Caterpillar 3512C HD, total 7,240 BHP; auxiliary engine Caterpillar C9, 503 BHP
  • Thrusters: 2 x 200 HP Thrustmaster 30TT175H tunnel thrusters
  • Service speed approx. 28 knots
  • Generators: 2 x 80 kW
  • Fuel 34,000 US gal (128.7 m³), ballast 62,000 US gal (234.7 m³), potable water 900 US gal (3.41 m³), lube oil 350 US gal (1.32 m³)
  • Dynamic positioning: DP2
  • Firefighting: 1 x monitor @ 2,500 GPM
  • Life-saving: 4 x 25-man Life Rafts
  • Accommodation 12 berths, 58 passenger seats
  • Electronics: 2 x Furuno FAR-2117 Radars, Furuno GP150D DGPS Navigator, Furuno FA150 AIS Transponder, Furuno FM-8800S VHF Radiotelephone, SEA 235 SSB Radio, Icom IC-M504 VHF Radio, Depth Recorder, Furuno NX700P Navtex Receiver, Color Video Sounder, RLB-32 EPIRB, RC1815 GMDSS, Furuno LH3000 Loud Hailer, 2 x Furuno GC10 Gyro Converters, Marine Technologies DP 2 Integrated Vessel Control System, Navitron NT991 BNWAS, Doppler Speed Log
  • Class: ABS Loadline, ABS A1 Class, ABS AMS (HSC Crewboat), ABS DP2

Offered subject to availability. The owner will consider selling this vessel, depending on her operational commitments – please contact us for current status, location and price.

Specifications are taken from the vessel's specification sheet and are given in good faith, but not guaranteed. Contact us and quote reference VSL2026-139624897.
