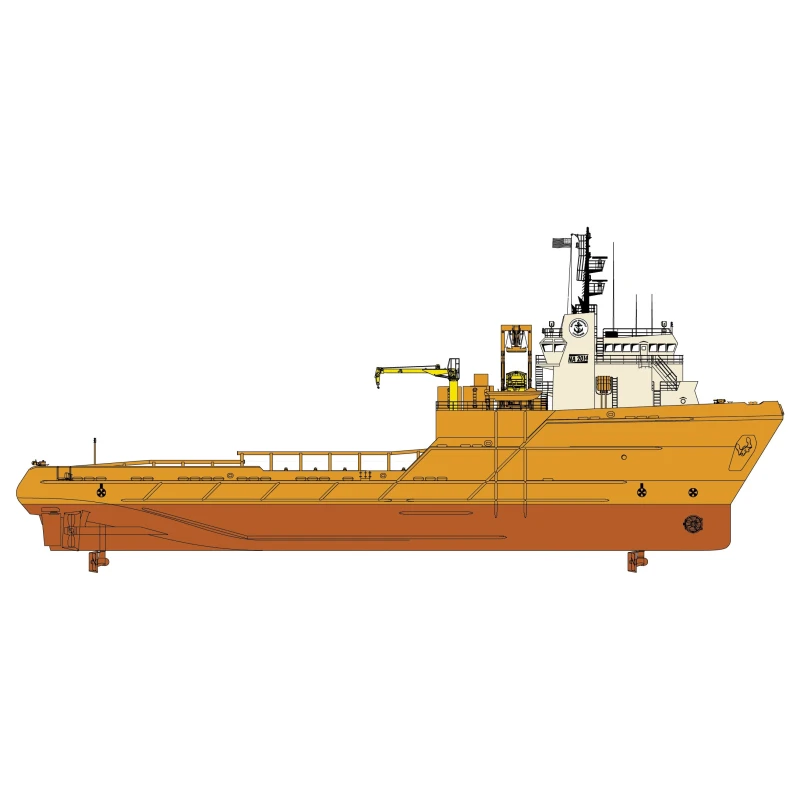

260' AHTS, DP2, built 1998, yard no. 163

260' Anchor Handling Tug Supply vessel (AHTS) for sale, built 1998 by North American Shipbuilding (yard number 163). 2 x Caterpillar 3612 main engines, 11,400 BHP in total, DP2, 260 x 58 x 24 ft (79.25 x 17.68 x 7.32 m).

• Built 1998 by North American Shipbuilding, yard number 163
• Dimensions 260 x 58 x 24 ft (79.25 x 17.68 x 7.32 m); draft 17 ft (5.18 m) normal, 13 ft (3.96 m) minimum, 20 ft 2 in (6.15 m) loadline
• Clear deck 136 ft 3 in x 48 ft (41.53 x 14.63 m), cargo deck area 607.6 m² (6,540 sq ft), deck cargo 1,175 LT (1,194 t) @ 3 ft VCG
• Deadweight 3,056 LT (3,105 t) at loadline draft
• Main engines: 2 x Caterpillar 3612, total 11,400 BHP; 2 x CP propellers in nozzles, 3,400 mm dia.
• Thrusters: 1 x Ulstein 850 HP tunnel and 1 x Ulstein 1,200 HP drop-down azimuthing forward, 1 x Ulstein 1,200 HP drop-down azimuthing aft
• Bollard pull 120 t at max. draft, speed 14 knots, 2 x independent spade rudders
• Generators: 3 x 500 kW + 1 x 300 kW emergency
• Winch: Brattvaag SL500 double drum waterfall, 500 t per drum; storage reels 2 x 6,500 ft (1,981 m) of 3-3/4 in. wire
• Tow pins 2 sets 300 t; shark jaws 2 sets Triplex 350 t + 1 x 175 t; stern roller 9 ft (2.74 m) dia.
• Chain lockers 2 x 5,425 ft (1,654 m) of 3-1/4 in. chain
• Tuggers 2 x 15 t + 2 x 7.5 t; cranes 2 x 5 t
• Capacities: fuel 367,442 US gal (1,390.9 m³), ballast 330,139 US gal (1,249.7 m³), potable water 32,576 US gal (123.3 m³), dry bulk 11,250 cu ft @ 80 psi (318.6 m³), liquid mud 4,320 bbl (686.8 m³) dual tank system
• Dynamic positioning: DP2 (Marine Technologies)
• 2 x passive anti-roll tanks, bilge keels; ROV deck; 2 x oily water separators; VSAT internet and TV
• Life-saving: 6 x 20-man inflatable life rafts, 8 life rings, Fast RSQ-450 rescue craft
• Accommodation 39 persons
• Electronics: 2 x Furuno FAR-2xx7 radars, Furuno GP-150, Glonass and C-Nav 3050, VHF/FM and DSC radios, Sea 330 HF/SSB, Seacall MF/HF DSC, JRC JUE-75C Inmarsat-C, Seatel Wavecall satellite telephone, ACR 406 EPIRB, JRC NCR-300A Navtex, Anschütz Standard 20 gyro compass with repeaters
• Class: ABS ✠A1 Unrestricted Ocean Service, ✠AMS, Circle E, DP2; USCG Subchapter L; OPA 90, SOLAS, MARPOL

Offered subject to availability. The owner will consider selling this vessel, depending on her operational commitments – please contact us for current status, location and price.

Specifications are taken from the vessel's specification sheet and are given in good faith, but not guaranteed. Contact us and quote reference VSL2026-149132246.
