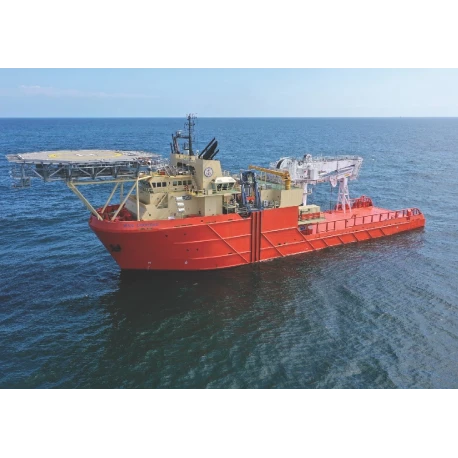

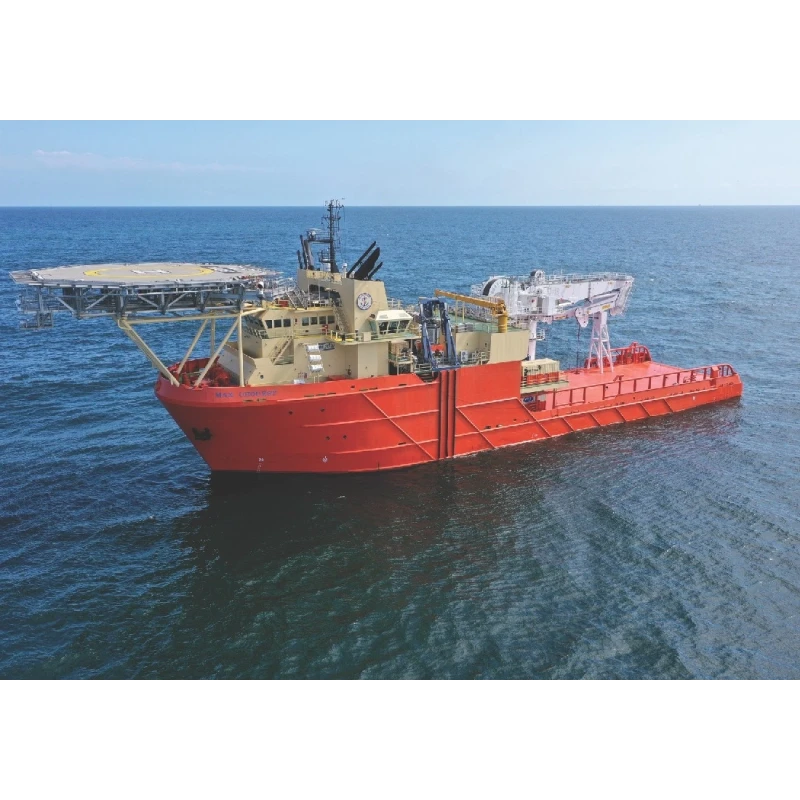

288' AHTS, DP2, built 2007, yard no. 232

288' Anchor Handling Tug Supply vessel (AHTS) for sale, built 2007 by North American Shipbuilding (yard number 232). 2 x Caterpillar 3616 main engines, 15,154 BHP in total, DP2, 288 x 66 x 29.6 ft (87.78 x 20.12 x 8.99 m).

• Built 2007 by North American Shipbuilding, yard number 232
• Dimensions 288 x 66 x 29.6 ft (87.78 x 20.12 x 8.99 m); draft 13.5 ft (4.11 m) lightship, 23 ft (7.01 m) loadline
• Clear deck 115 x 54 ft (35 x 16.46 m), cargo deck area 576.9 m² (6,210 sq ft), deck cargo approx. 700 LT (711 t)
• Deadweight 4,096 LT (4,161.5 t)
• Main engines: 2 x Caterpillar 3616, 7,577 hp each; 2 x Rolls-Royce CP propellers, 4-blade, 4,000 mm dia.
• Thrusters: 1 x Rolls-Royce 375TV 1,500 HP tunnel forward, 1 x Rolls-Royce 375TV 1,500 HP tunnel aft, 1 x Rolls-Royce 900HRV 1,200 HP drop-down
• Speed 14 knots
• Generators: 3 x Caterpillar 3412C, 500 kW each; emergency generator Caterpillar 3406C, 300 kW
• Winch: Rolls-Royce/Brattvaag BSL500W/2SL500W waterfall type, 500 t
• Tow drums: 27,140 ft (8,272 m) of 3 in., 23,125 ft (7,048 m) of 3.25 in. or 19,939 ft (6,077 m) of 3.5 in. wire; 9,000 ft (2,743 m) of 6.75 in. or 7,500 ft (2,286 m) of 7.25 in. rope
• Anchor handling drums: 13,000 ft (3,962 m) of 3 in., 11,189 ft (3,410 m) of 3.25 in. or 9,648 ft (2,940 m) of 3.5 in. wire on 2 drums
• Tow pins 2 x Triplex V-300 retractable, 300 t; shark jaws 2 x Triplex H-700, 700 t; stern rollers 2 x 12 ft dia. @ 750 t
• Chain lockers: 4,675 ft (1,425 m) of 3.75 in. chain in 2 lockers
• Tuggers 2 x Brattvaag LAKMX6325 25 t (fwd) and 2 x Brattvaag LAKMX4185.17 20 t (aft)
• Cranes: North Pacific MCF-2045 5 t provision crane, 45 ft fixed boom; NOV OC4000KSCE subsea crane, 150 t @ 30 m
• Subsea (as listed in the specification): 2 x Schilling UHD ROV units with Ulmatec electric heave-compensated winches, Ulmatec A-frame, work van

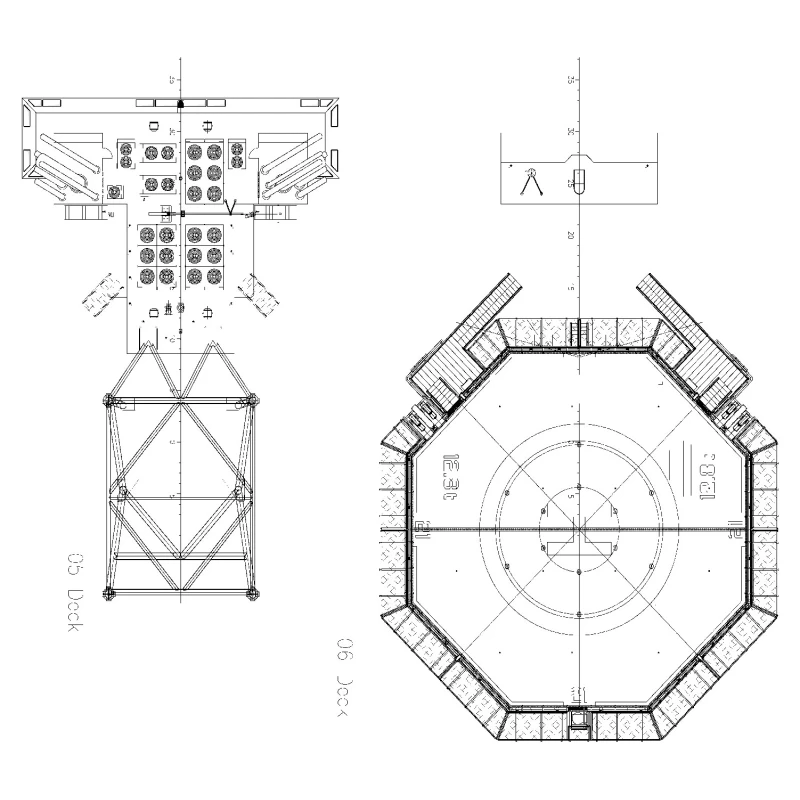

• Helideck: CAP 437, suitable for Sikorsky S-92
• Capacities: fuel 432,289 US gal (1,636.2 m³), ballast 305,293 US gal (1,155.5 m³), potable water 78,104 US gal (295.6 m³), dry bulk 10,841 cu ft @ 80 psi (307 m³), liquid mud 6,421 bbl (1,020.7 m³)
• Dynamic positioning: DPS-2
• 2 x passive anti-roll tanks, bilge keels
• Life-saving: 8 x 25-person inflatable life rafts, Narwhal SV-400 rescue boat with davit
• Accommodation 59 persons (3 x single, 12 x 2-person and 8 x 4-person cabins), 2-berth hospital, lounge, client dayroom, conference room and office
• Class: ABS ✠A1, ✠AMS, ✠DPS-2, ✠Towing Vessel, AH (anchor handling), UWILD, BP (bollard pull), Loadline; USCG Subchapter I / L

Offered subject to availability. The owner will consider selling this vessel, depending on her operational commitments – please contact us for current status, location and price.

Specifications are taken from the vessel's specification sheet and are given in good faith, but not guaranteed. Contact us and quote reference VSL2026-159354296.
