288' AHTS, DP2, built 2007, yard no. 234

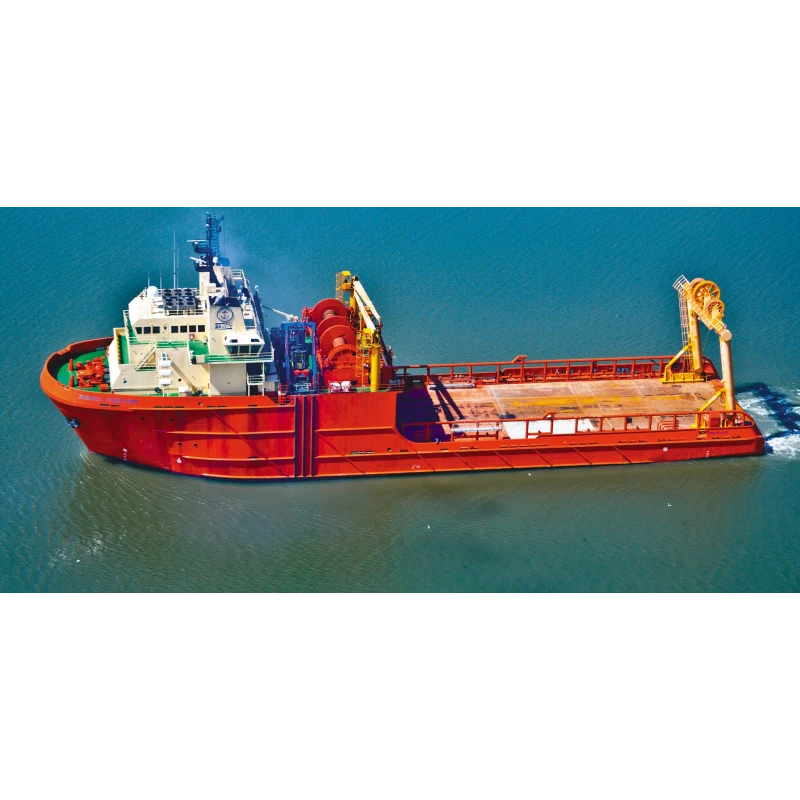

288' Anchor Handling Tug Supply vessel (AHTS) for sale, built 2007 by North American Shipbuilding (yard number 234). 2 x Caterpillar 3616 main engines, 15,200 BHP in total, DP2, 288 x 66 x 29.5 ft (87.78 x 20.12 x 8.99 m).

• Built 2007 by North American Shipbuilding, yard number 234
• Dimensions 288 x 66 x 29 ft 6 in (87.78 x 20.12 x 8.99 m); draft 16 ft (4.88 m) lightship, 23 ft (7.01 m) loadline
• Clear deck 142 x 54 ft (43.28 x 16.46 m), cargo deck area 712.4 m² (7,668 sq ft), deck cargo 1,650 LT (1,676 t)
• Deadweight 4,457 LT (4,528.5 t)
• Main engines: 2 x Caterpillar 3616, total 15,200 BHP; 2 x CP propellers in nozzles, 4,000 mm dia.
• Thrusters: 1 x 1,500 HP tunnel and 1 x 1,200 HP drop-down azimuthing forward, 1 x 1,500 HP tunnel aft
• Speed 14 knots
• Generators: 3 x 500 kW + 1 x 300 kW
• Winch: 3-drum waterfall, 500 t line pull; chain whelps 370 t pull capacity
• Tow drums: 27,140 ft (8,272 m) of 3 in., 23,125 ft (7,048 m) of 3.25 in. or 19,939 ft (6,077 m) of 3.5 in. wire; 9,000 ft (2,743 m) of 6.75 in. or 7,500 ft (2,286 m) of 7.25 in. rope
• Anchor handling drums: 13,000 ft (3,962 m) of 3 in., 11,189 ft (3,410 m) of 3.25 in. or 9,648 ft (2,940 m) of 3.5 in. wire on 2 drums
• Storage reels: 19,879 ft (6,059 m) of 3 in., 16,923 ft (5,158 m) of 3.25 in. or 14,601 ft (4,450 m) of 3.5 in. wire on 2 reels; 10,000 ft (3,048 m) of 6.75 in. or 8,500 ft (2,590 m) of 7.25 in. rope; 100 t line pull
• Tow pins 2 x 300 t; shark jaws 2 x 700 t; stern rollers 2 x 12 ft dia. @ 750 t
• Chain lockers (4): 5,300 ft (1,600 m) of 3 in., 4,526 ft (1,380 m) of 3.25 in. or 3,900 ft (1,188 m) of 3.5 in. chain
• Tuggers 4 x 25 t; cranes 2 x 5 t; A-frame (optional equipment)
• Subsea (as listed in the specification): ultra-heavy-duty work class ROV system (Generation 1)
• Capacities: fuel 457,990 US gal (approx. 1,734 m³), ballast / rig water 410,200 US gal (1,552 m³), potable water 72,080 US gal (272 m³), dry bulk 10,820 cu ft @ 80 psi (306.4 m³), liquid mud 7,900 bbl (1,256 m³)
• Dynamic positioning: DP2 (Marine Technologies)
• 2 x passive anti-roll tanks, bilge keels
• Life-saving: 6 x 25-man inflatable life rafts, Marchandweg 21 A-type RSQ 450-A rescue boat
• Accommodation 44 persons
• Electronics: JRC NDZ-127C1 Inmarsat, JRC JSB-196GM SSB, JRC NCT-196N DSC/NBDP modem, JRC JFE-585 echo sounder, 2 x JRC NWZ-4570 GPS, C-Nav 1000 and 2050 GPS/DP, Furuno NX-700 Navtex, 2 x Furuno FM-8800S VHF, 2 x ICOM IC-M422 VHF, Furuno FA-150 AIS, Navitron NT951G autopilot, 2 x Marine Technologies gyro compasses, ACR 2406 EPIRB, 2 x ACR Pathfinder 3 SART, 2 x JRC JMA-5320 radars
• Class: ABS ✠A1, ✠AMS, ✠DPS-2, Loadline; USCG Subchapter L; SOLAS, MARPOL

Offered subject to availability. The owner will consider selling this vessel, depending on her operational commitments – please contact us for current status, location and price.

Specifications are taken from the vessel's specification sheet and are given in good faith, but not guaranteed. Contact us and quote reference VSL2026-169382839.
