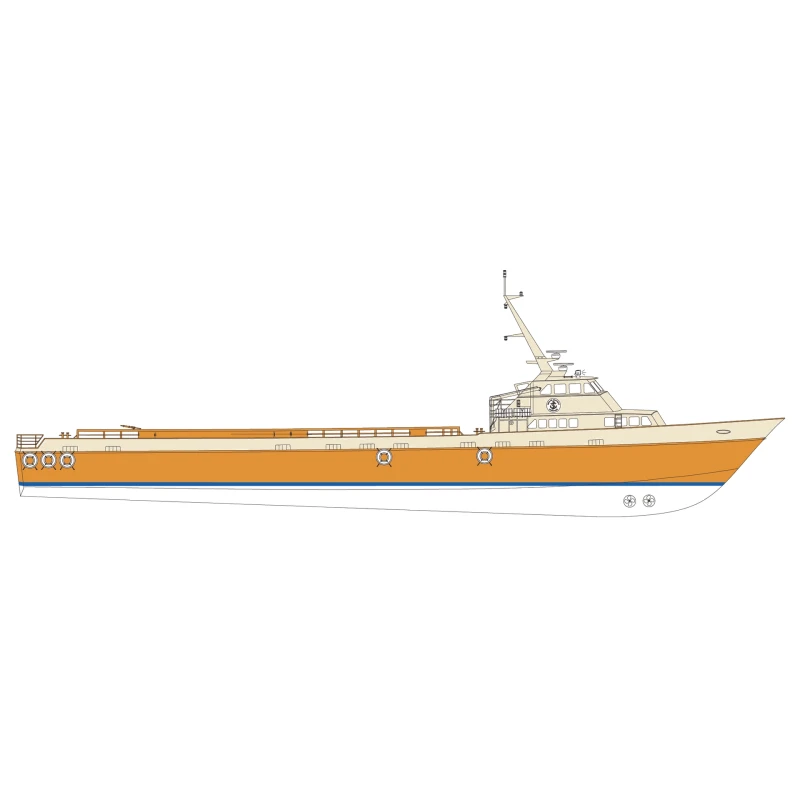

New 160' Fast Supply Vessel, built 2005, yard no. 44 – profile drawing View larger

160' Fast Supply Vessel, built 2005, yard no. 44

VSL2026-109379193

Used

160' Fast Supply Vessel, built 2005, 4 x Caterpillar 3512B HD, 6,700 BHP, 77 passengers. Offered subject to availability.

More details

Price on request

or call +47 908 92 500

Data sheet

Year 2005
HP 6700
Class ABS High Speed Crewboat, ABS Loadline, USCG Certified
Passengers 77
Length Overall LOA Meter 48.77
Molded Breadth Meter 9.14
Molded Depth Meter 3.90
Cargo Deck Area: 237 m² (2,548 sq ft)
Deck Cargo Capacity: 285 LT (290 t)
Deadweight Tonnage: 336 LT (341 t)
Gross tonnage ITC (registred) 336
Fuel Oil: 23,655 US gal (89.5 m³)
Fresh Water M³ 900 US gal (3.41 m³)
Ballast M³ 36,510 US gal (138.2 m³)
ACCOMMODATIONS: 10 berths
Main Engines: 4 x Caterpillar 3512B HD, total 6,700 BHP
Bow Thrusters: 2 x 250 HP Thrustmaster tunnel thrusters
Total Propulsion HP: 6700
Ship’s Service Generators: 2 x 80 kW
LIFESAVING EQUIPMENT 4 x 25-man Inflatable Life Rafts
Firefighting: 1 x FiFi monitor, 1,200 GPM
Maximum speed 26 knots
Shipyard Breaux Brothers Enterprises
Yard number 44

More info

160' Fast Supply Vessel (FSV) / crew boat, built 2005 by Breaux Brothers Enterprises (yard number 44). 4 x Caterpillar 3512B HD main engines, 6,700 BHP in total, deck cargo 285 LT (290 t) and seating for 77 passengers.

  • Built 2005 by Breaux Brothers Enterprises, yard number 44
  • Dimensions 160 x 30 x 12.8 ft (48.77 x 9.14 x 3.90 m)
  • Clear deck 98 x 26 ft (29.87 x 7.92 m), cargo deck area 237 m², deck cargo 285 LT (290 t)
  • Main engines: 4 x Caterpillar 3512B HD, total 6,700 BHP
  • Thrusters: 2 x 250 HP Thrustmaster tunnel thrusters
  • Service speed approx. 26 knots
  • Generators: 2 x 80 kW
  • Fuel 23,655 US gal (89.5 m³), ballast 36,510 US gal (138.2 m³), potable water 900 US gal (3.41 m³)
  • Dynamic positioning: DP upgradeable
  • Firefighting: 1 x monitor @ 1,200 GPM
  • Life-saving: 4 x 25-man Inflatable Life Rafts
  • Accommodation 10 berths, 77 passenger seats
  • Electronics: 2 x JRC JMA 2344 Radars, JRC A3 GMDSS HF/MF, 2 x Furuno FM880S DSC VHFs, Marine Technologies Bridge Mate X-Pack DS IMO, Furuno DS-80 Dual Axis DS AIS, Furuno FE700 IMO Sounder, Furuno FS-1503 SSB Radio, Standard Horizon LH-5 Hailer, 2 x Icom IC-M302 VHFs, 3 x Icom GM1600 Handheld Emergency VHFs, 2 x ACR SARTs, ACR 2774 EPIRB, JRC NCR330 Navtex
  • Class: ABS High Speed Crewboat, ABS Loadline, USCG Certified

Offered subject to availability. The owner will consider selling this vessel, depending on her operational commitments – please contact us for current status, location and price.

Specifications are taken from the vessel's specification sheet and are given in good faith, but not guaranteed. Contact us and quote reference VSL2026-109379193.
