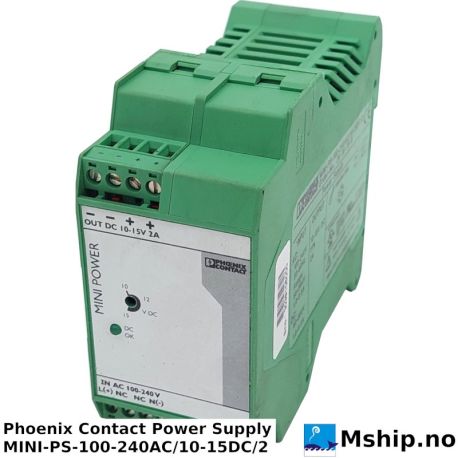

Phoenix Contact MINI-PS-100

Name: Phoenix Contact MINI-PS-100
Brand: Phoenix Contact
SKU: PC_MINI-PS-100

Reference: PC_MINI-PS-100

Condition: Used

Phoenix Contact Power Supply
MINI-PS-100-240AC/10-15DC/2

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer	Phoenix Contact
Model	MINI-PS-100-240AC/10-15DC/2
Manufacturers part number	2938756
Alternative part number	El-nr. 6613066 / Phoenix Contact 2904605 (successor)
Serial number	3039106000
Other	30 W; MINI POWER for DIN rail NS 35; DC OK LED and signal output; -25…+70 °C (derating above 60 °C); IP20; UL 508 / UL 60950-1, Class I Div 2; 45 x 99 x 107 mm; GTIN 4017918925192
Weight	250 g
Amps	Input 1.0-0.5 A / Output 2 A (POWER BOOST 2.3 A up to 40 °C)
Volt	Input 100-240 V AC (range 85-264 V AC / 90-350 V DC) / Output 10-15 V DC adjustable, ±1 %
HZ	50-60 Hz (45-65 Hz)

More info

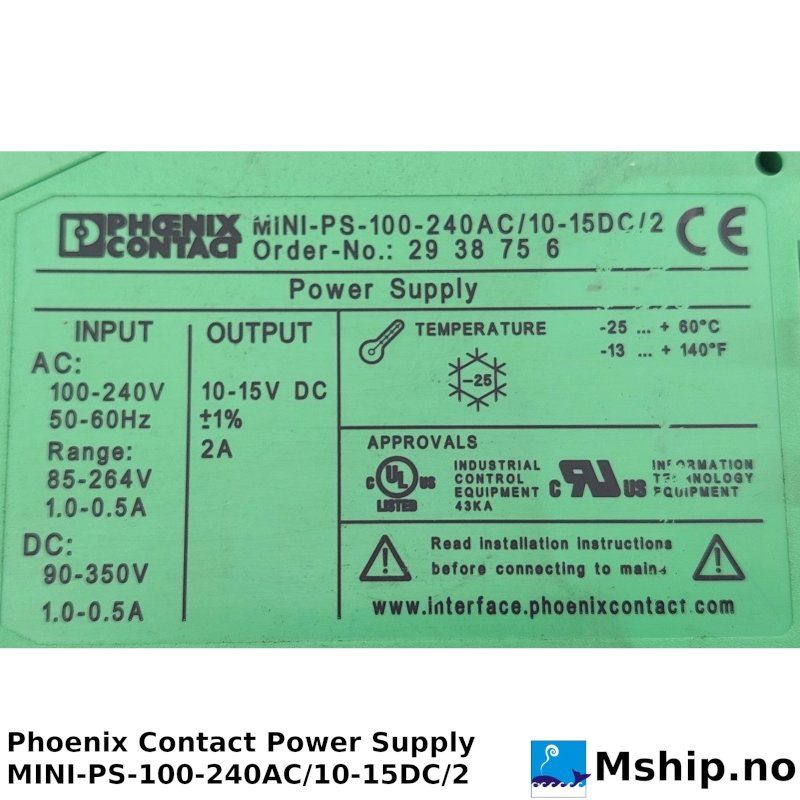

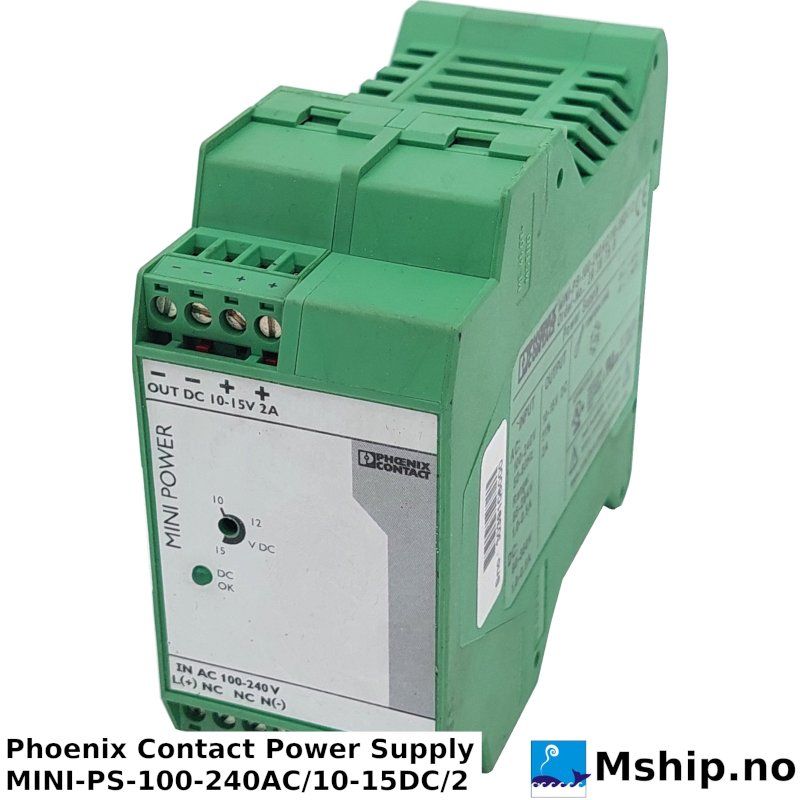

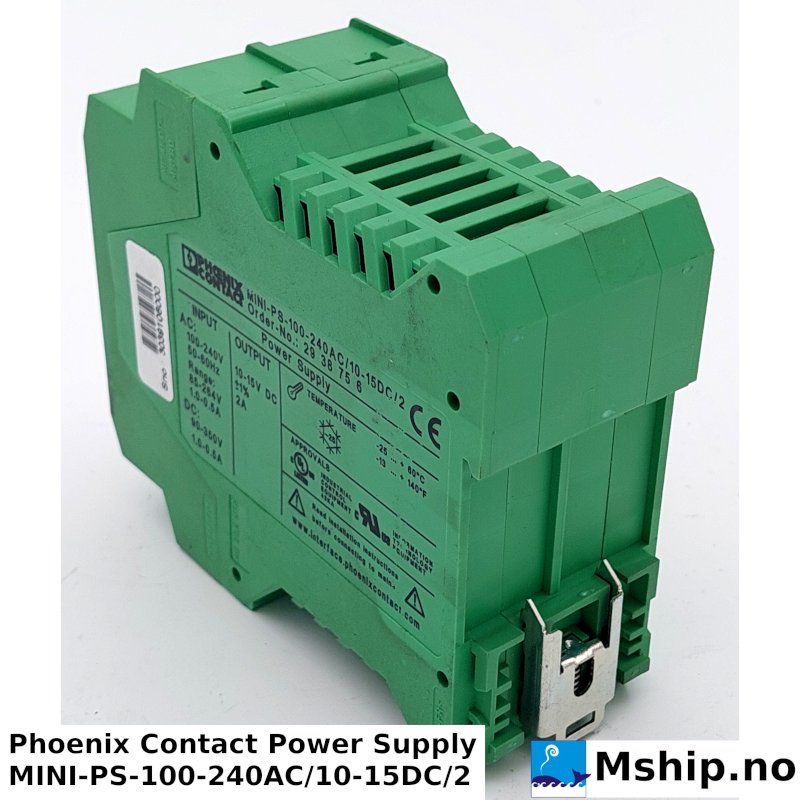

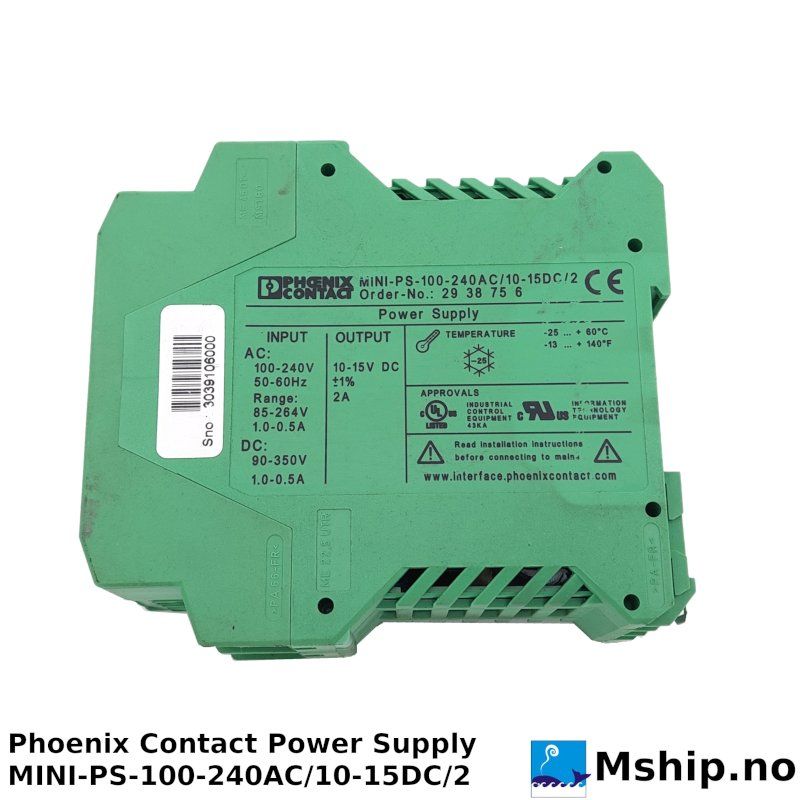

Phoenix Contact MINI-PS-100-240AC/10-15DC/2 power supply
Part No. (Order No.) 2938756 - El-nr. 6613066

Input: 100-240 V AC, 50-60 Hz (range 85-264 V AC / 90-350 V DC), 1.0-0.5 A
Output: 10-15 V DC adjustable (12 V DC nominal), ±1 %, 2 A (POWER BOOST 2.3 A up to 40 °C), 30 W
MINI POWER series for DIN rail NS 35, pluggable screw terminals
DC OK LED and DC OK signal output
Operating temperature -25 °C to +70 °C (derating above 60 °C), IP20
Approvals: UL 508, UL 60950-1, UL ANSI/ISA-12.12.01 Class I, Division 2
Dimensions 45 x 99 x 107 mm, weight 250 g

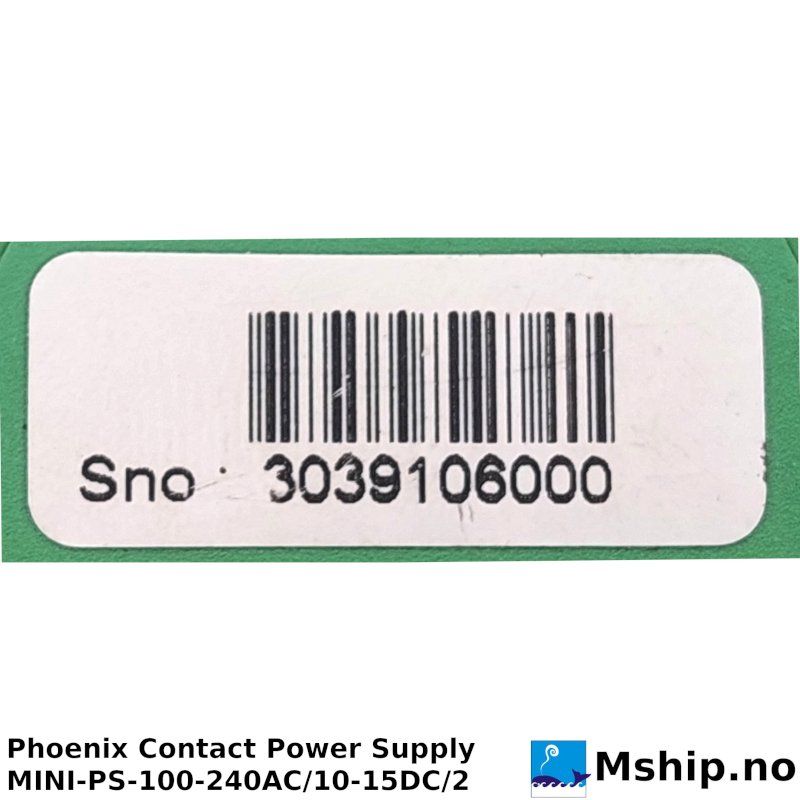

Serial number: 3039106000

Replaced by Phoenix Contact 2904605 in new systems. Datasheet from Phoenix Contact attached below.

Used, in stock.

Download

Datasheet Phoenix Contact 2938756

Phoenix Contact datasheet MINI-PS-100-240AC/10-15DC/2 power supply, item 2938756, El-nr. 6613066

Download (312.09k)
