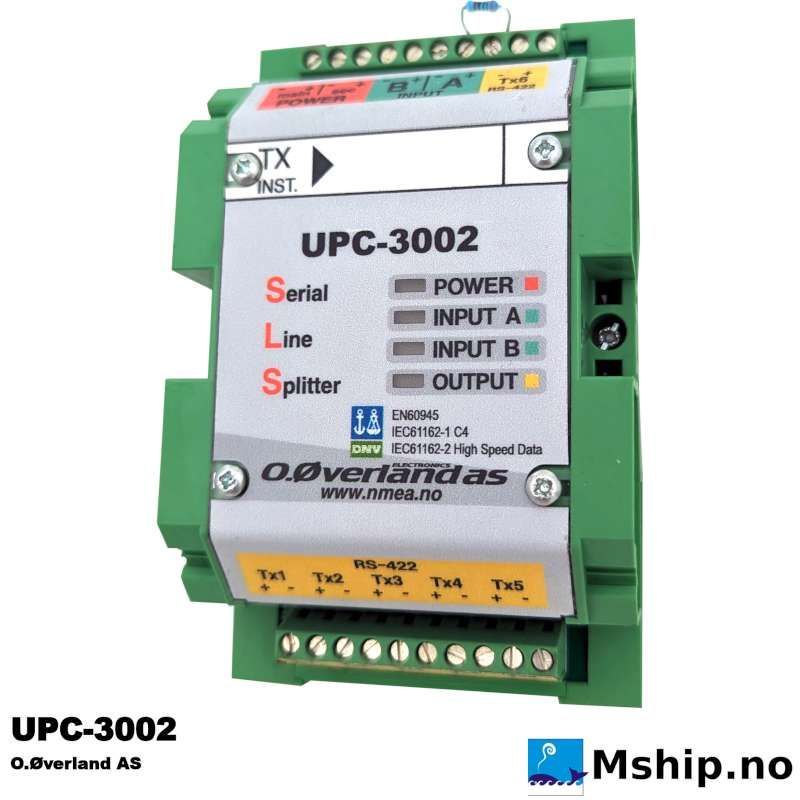

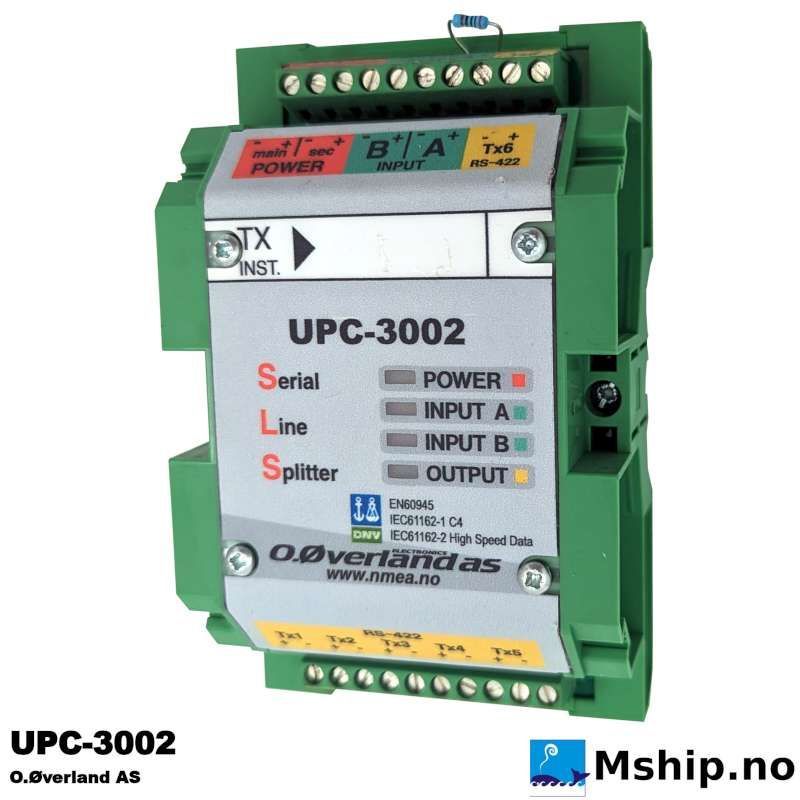

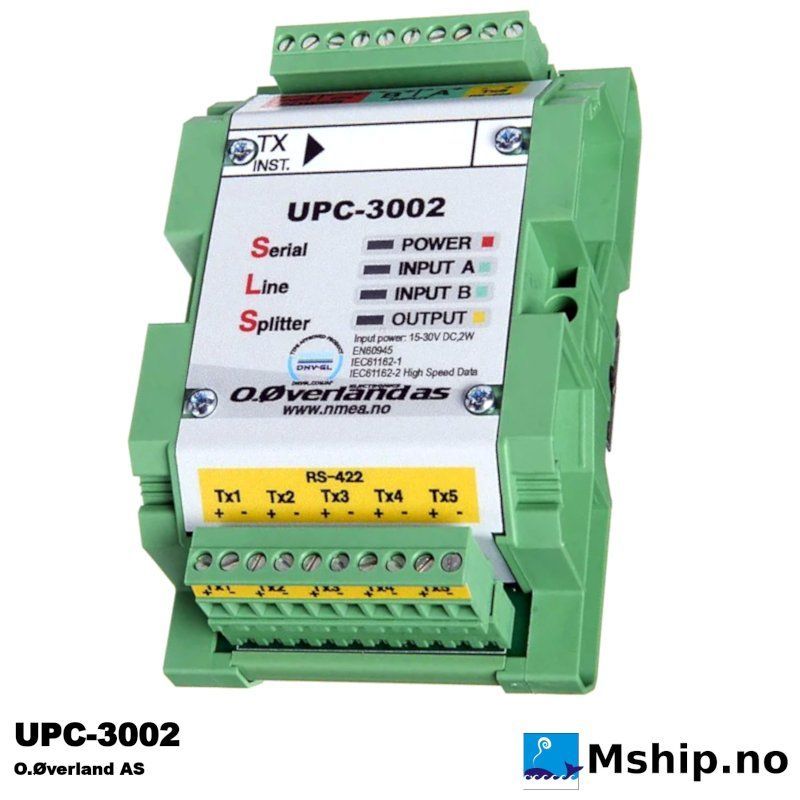

UPC-3002 Serial line splitter

SerialLineSplitter
Input: RS-232, RS-422, RS-485 NMEA0183.

UPC 3002 - DNV approved NMEA Serial line splitter – NMEA buffer

UPC 3002-SLS is a DNV approved serial line splitter with 2 separate inputs and 6 outputs. Dual power input with autoswitch.

The 2 inputs A and B are separated with A as the primary input. If there is data on both A and B inputs, input A is used

Input B is used only if input A is idle.

The power supply and both signal inputs are galvanic isolated from the outputs.

UPC3002 Specifications:

UPC3002 is a serial line splitter
with two separate inputs and six outputs.
Dual power input with autoswitch.

Input A and B are separated.
Input A is prioritized.
If there is data on both input A and B,
input A is used.
Input B is used only if input A is out.
The power supply and both inputs are
galvanic isolated from the outputs.

The powersupply and both inputs are
galvanic isolated from the outputs.

Specifications:
Powersupply main: 15-30Vdc 2W
Powersupply sec: 15-30Vdc 2W
Input A,B:NMEA, RS232
RS422, RS485
max: 115200 baud
Outputs 1-6:RS-422, 50mA max,
Short Circuit Protected
Module-box with DIN-rail mounting
Dimensions in mm: L-130 x H-50 x W-80
