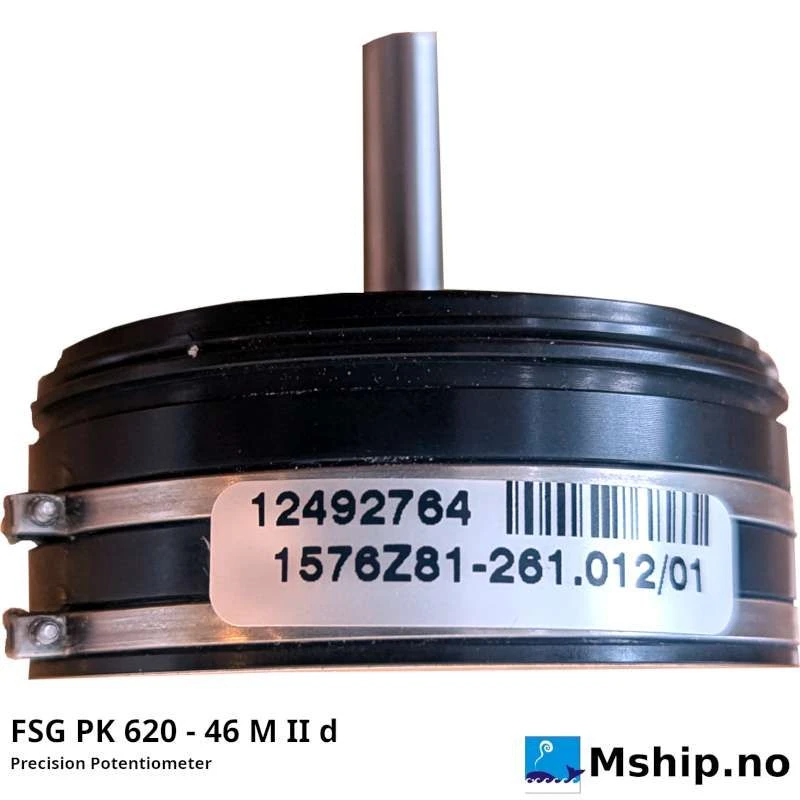

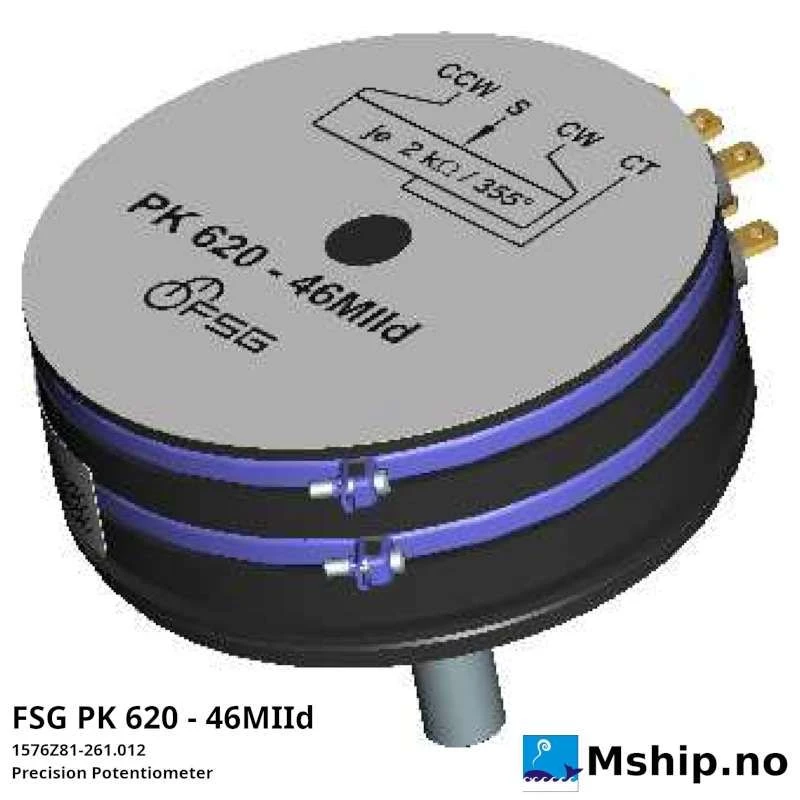

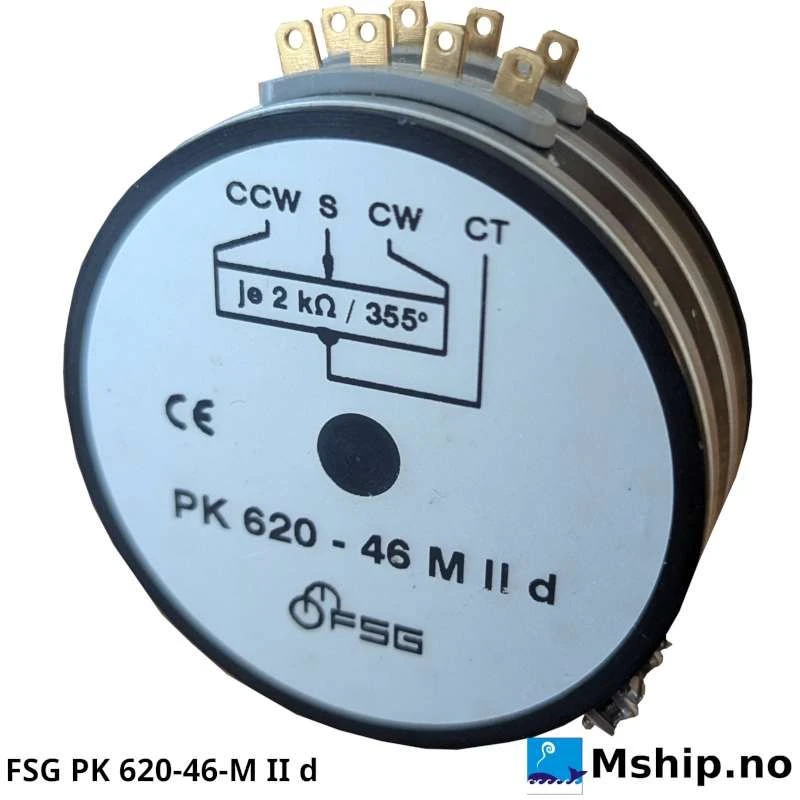

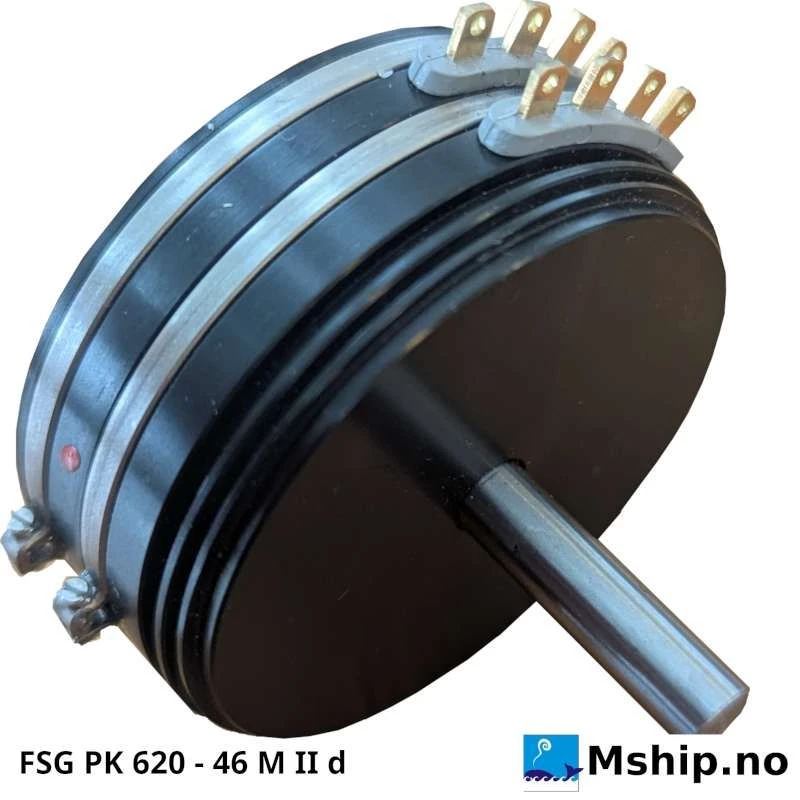

FSG PK 620 - 46 M II d Precision Potentiometer

FSG PK 620-46 M II d Precision Potentiometer

PK620 Precision potentiometer with Conductive plastic resistor element

The precision potentiometer from the PK620 Active angle Resistance element Multiple design Value Value max. 355° Conductive plastic twofold

Mechanical data

• Housing: Synchro size 20
• Case material: Aluminium, anodized
• Housing protection class: IP30
• Connection protection class: IP00
• Shaft material: Stainless steel
• Bearing: Porous (sintered) sleeve bearing
• Shaft diameter: Ø6 h7
• Connection: Faston terminals with center tap, increased contact pressure and red reference pointer
• Direction of rotation: Counter-clockwise (CCW)
• Vibration: 5–200 Hz, Amax = 1.6 mm
• Shock: 50 g, 6 ms
• Life: 50 million wiper movements

Electrical data

• Resistance: 2 × 2 kΩ (dual section)
• Resistance tolerance: ±20 %
• Active angle: 2 × 355°
• Resistance element: Wiper, mechanically rotatable
• Linearity tolerance: ±0.3 %
• Power rating: 2 W
• Max. wiper current: 1 mA
• Isolation test: 250 VDC
• Temperature range: −30 °C to +80 °C
• Temperature coefficient: 200 ppm
• Inductance: < 1 mH
• Suitable for hazardous areas (intrinsically safe)

Main dimensions (mm)

• Flange outer diameter: Ø50.8 (−0.1)
• Housing diameter: Ø47.9 (−0.1)
• Centering spigot: Ø47.6 (−0.02)
• Shaft: Ø6 h7 (−0.012), length 24
• Housing height: approx. 19.2
• Radius to terminals: 30.5

Accessories

• Anchoring clip: 0061W01-00:07 (pitch circle Ø61, 2× M3)
