Celsa VoltMeter 0-400 V — Manufacturer: Celsa, Model: 0-400 Voltmeter, Manufacturers part number: EQ96n 0-400 Volt, Volt: 0-400 Volt, HZ: for alternating current 15 - 100 Hz, DIMENSIONs: Front frame (mm) 96x96 - cut out size 92x92 +0,8 mm View larger

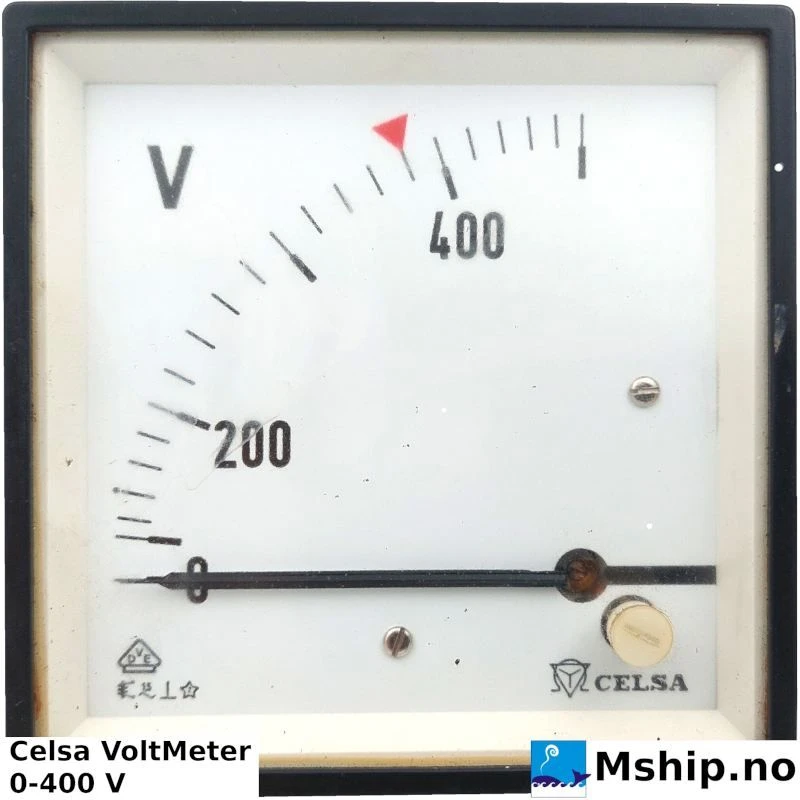

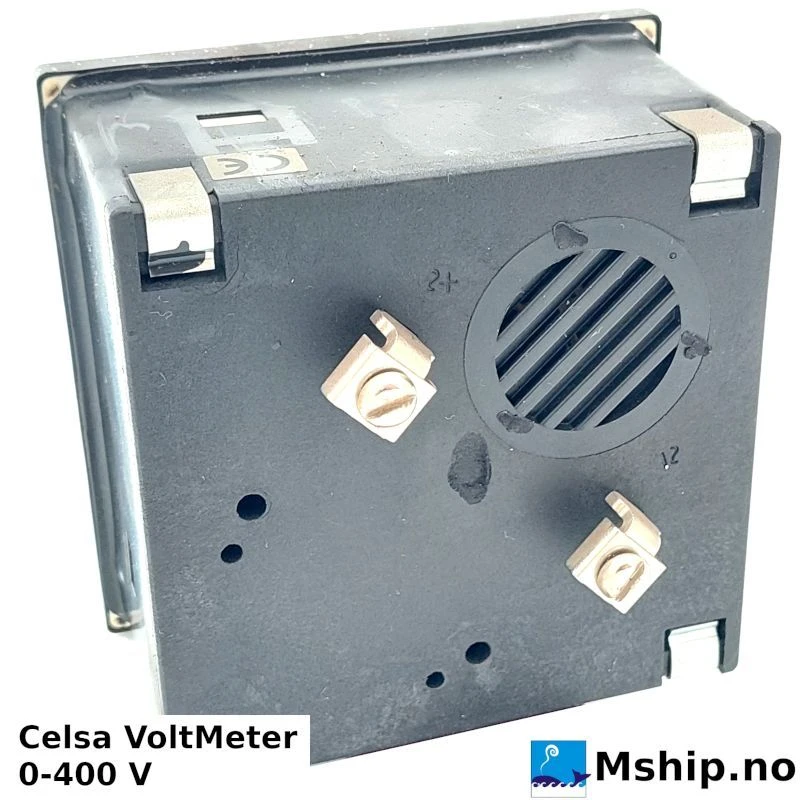

Celsa VoltMeter 0-400 V

celsa-0-400V

Used

Celsa VoltMeter
0-400 V

More details

    • Data sheet

    Manufacturer Celsa
    Model 0-400 Voltmeter
    Manufacturers part number EQ96n 0-400 Volt
    Volt 0-400 Volt
    HZ for alternating current 15 - 100 Hz
    DIMENSIONs Front frame (mm) 96x96 - cut out size 92x92 +0,8 mm

    More info

    EQ96n 0-400 Volt

    Description
    Moving iron panel instruments are predominantly used in the usual technical
    frequency range 15...100 Hz for alternating current and alternating voltage
    measurements in the ordinary technical frequency range 15...100 Hz.


    Moving iron instruments practically show independently of the wave form -
    also at high harmonic content - the effective value of the alternating current.


    In order to avoid overloads when starting the engines aminstruments are ge-
    nerally delivered with overload scales 2xIn /=100 % overload). The final
    scale values correspond in .../5A and in .../ 1A to those of the current trans-
    formers.


    The scale course of moving iron instruments is in the beginning a bit com-
    pact and almost linear between 10 and 100 % of the final scale value. The
    length of the overload scale amounts to about 10 % for a scale of 100 %
    overload referred to the scale length
