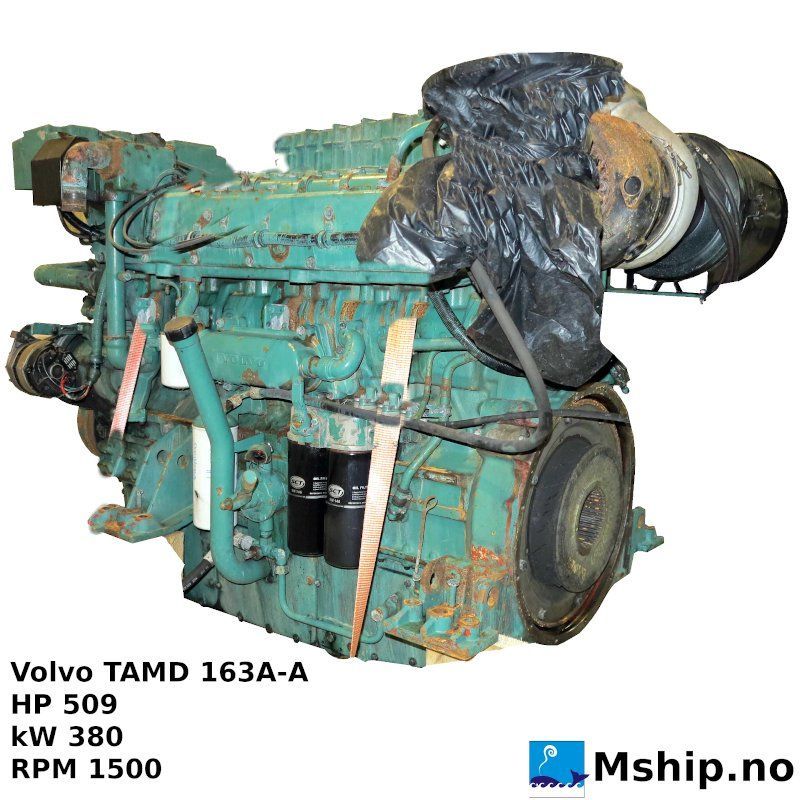

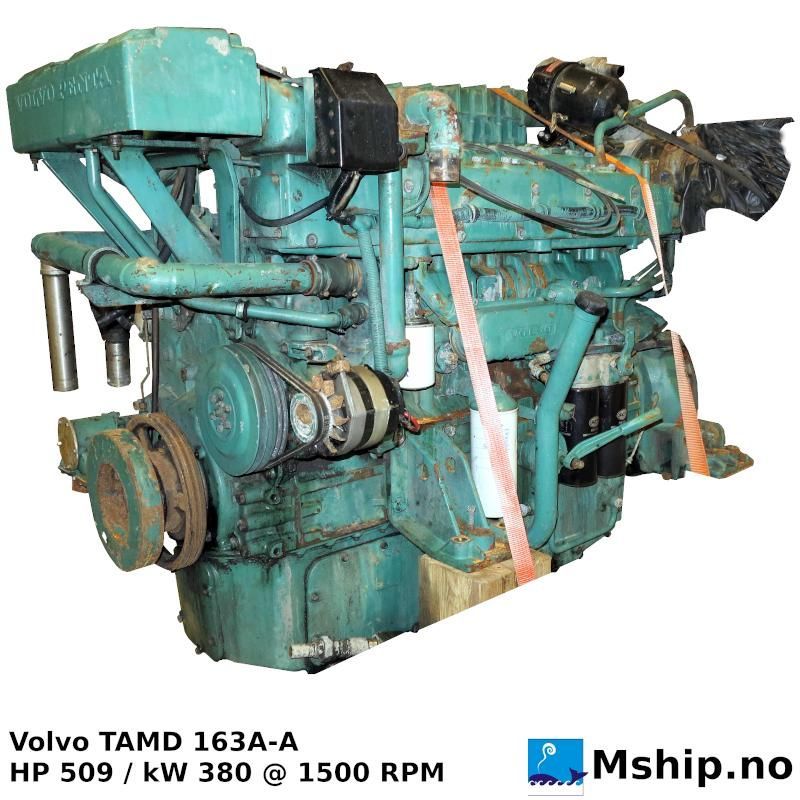

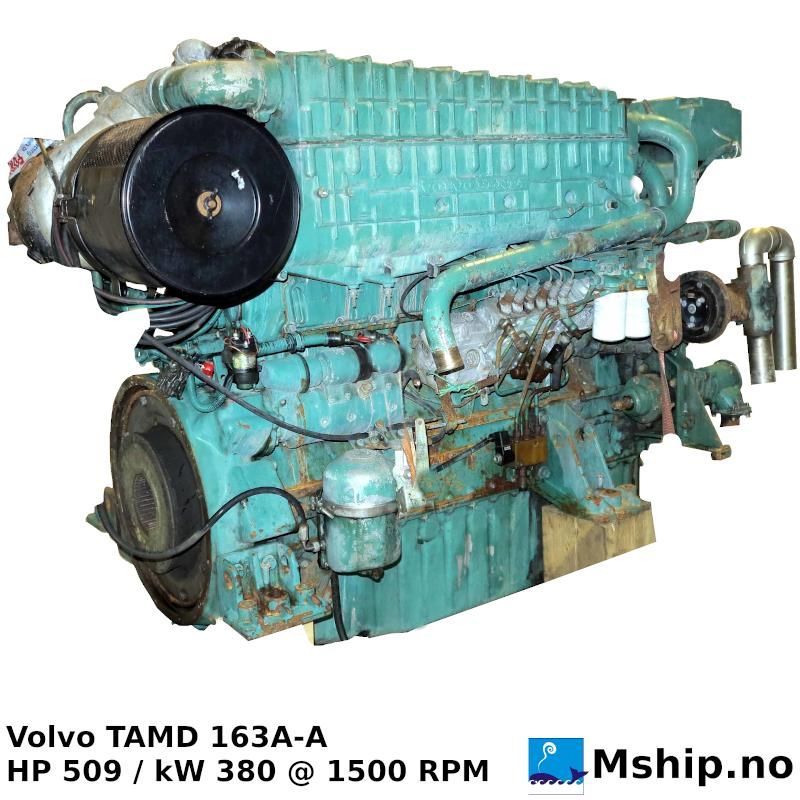

Volvo Penta TAMD163A-A

Volvo Penta TAMD163A-A
380 kW @ 1500 RPM

Technical Data Fuel system
Engine designation ................................ TAMD163A
No. of cylinders and configuration ............ in-line 6
Method of operation ....... 4-stroke, direct-injected,
turbocharged diesel engine with after cooler
Bore, mm (in.) .......................................... 144 (5.67)
Stroke, mm (in.) .......................................... 165 (6.5)
Displacement, l (in 3 ) ......................... 16.12 (983.7)
Compression ratio .............................................. 17:1
Dry weight, kg (lb) .............................. 1765 (3891)
Crankshaft power,
Rating 2, kW (hp) 1800 rpm ................. 441 (600)
Rating 1, kW (hp) 1800 rpm ................. 404 (550)
Torque,
Rating 2, Nm (lbf.ft) 1800 rpm ........ 2340 (1726)
Rating 1, Nm (lbf.ft) 1800 rpm ........ 2145 (1582)
Recommended fuel to
conform to ........................ ASTM-D975 1-D & 2-D,
............................................. EN 590 or JIS KK 2204
Specific fuel consumption,
Rating 2, g/kWh (lb/hph) 1800 rpm . 215 (0.349)
Rating 1, g/kWh (lb/hph) 1800 rpm . 213 (0.345

Lubrication system
– Oil sump with inspection covers
– Twin oil filter of spin-on type, plus by-pass filter
– Freshwater-cooled oil cooler

Fuel system
– Fuel injection pump with centrifugal governor,
  smoke limiter and fuel feed pump
– Seven-hole injectors
– Fuel shut-off valve 24V, electrically operated
– Twin fine fuel filters of spin-on type Turbocharger
– Freshwater-cooled turbocharger and exhaust manifold

Cooling system
– Seawater-cooled after cooler
– Tubular heat exchanger or 2-circuit keel cooling
– Cooling pipes in copper/nickel give greater
   resistance to corrosion and longer service life
– Freshwater filter incl. corrosion protection
– Gear-driven freshwater pump

Electrical system
– 24V electrical system incl. 60A alternator
   with integrated charging sensor
– Rubber-suspended electrical terminal box
