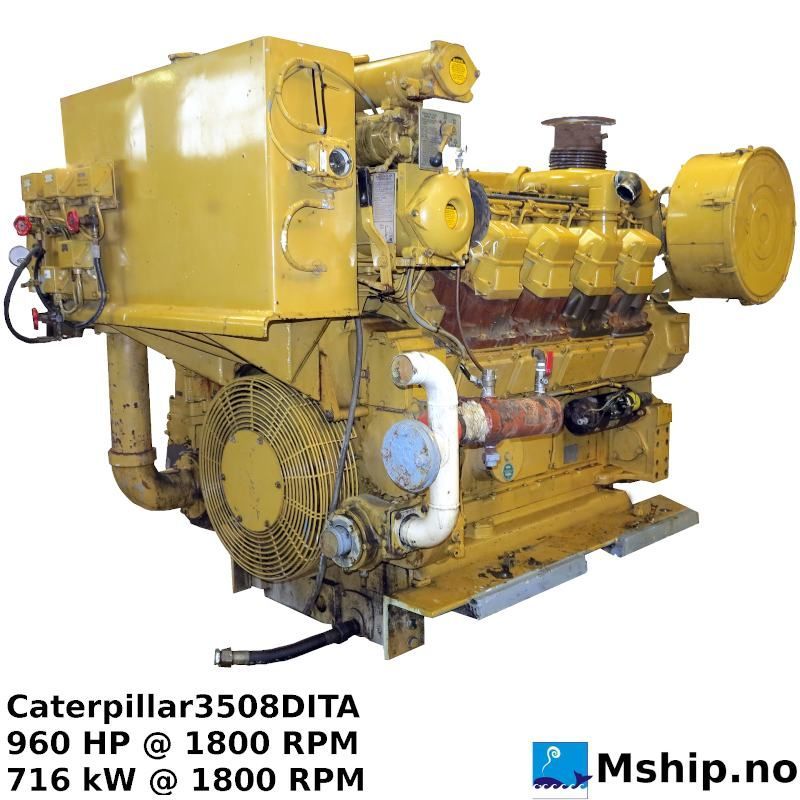

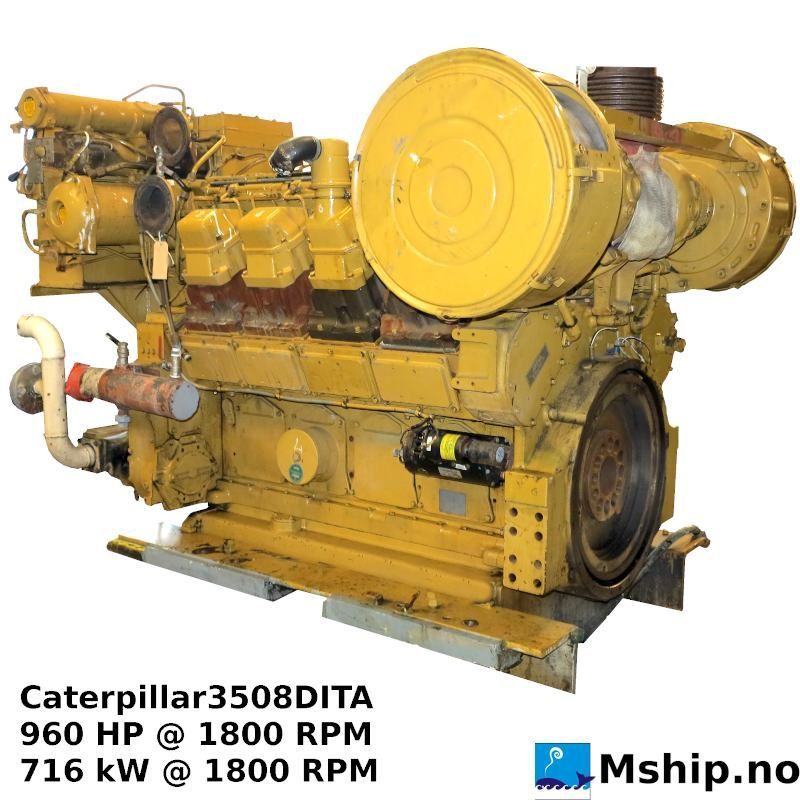

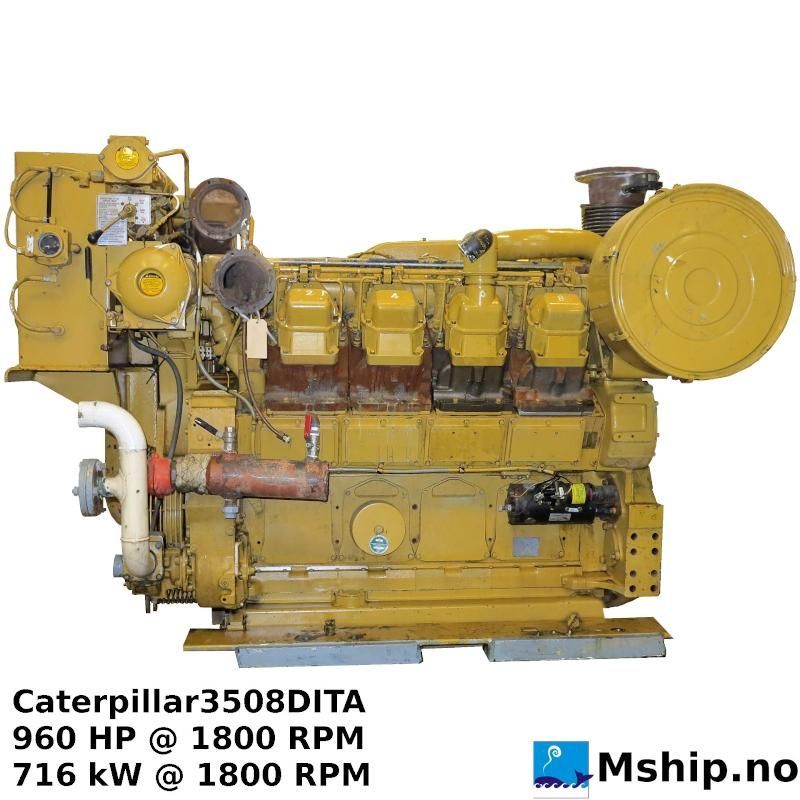

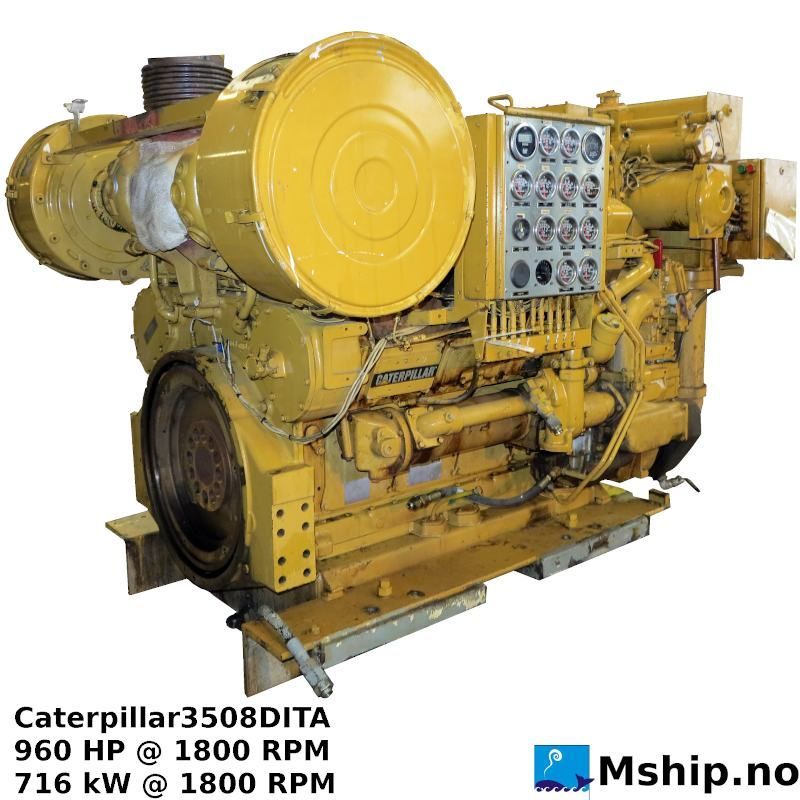

Caterpillar3508DITA — Manufacturer: Caterpillar, Model: 3508DITA, Arrangement number: 2W8860, Serial number: 96Y01535, HP: 960, View larger
Previous Next

Caterpillar3508DITA

5870929

Used

Caterpillar3508DITA

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Caterpillar
Model 3508DITA

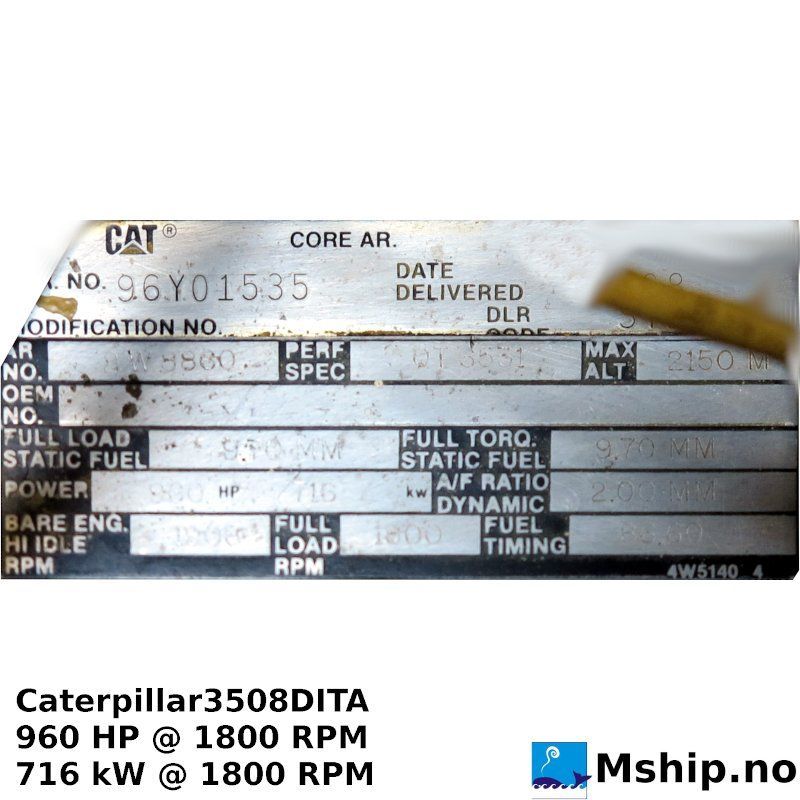

Arrangement number 2W8860
Serial number 96Y01535
HP 960
kW 716
RPM 1800

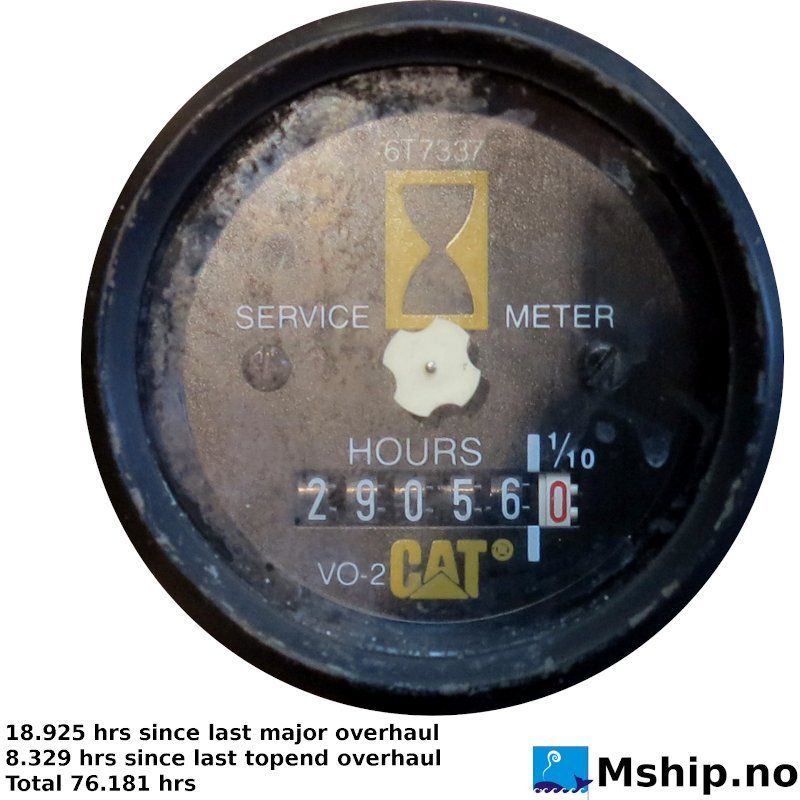

Running Hours 8.329 hrs since last top end overhaul.18.925 hrs since last major overhaul. Total 76.181 hrs
Cylinder bore 170 mm
Piston Stroke 190 mm
Number of cylinders 8
Displacement 69,06 Liter
Cylinder configuration V-engine
Rotation direction CCW - Counter clockwise seen from aft
Fuel Type MDO
Weight Weight, Net Dry (approx.) 5,996 kg

More info

This engine is sold. We have spare parts for most of the engines we have sold, and we can often source a similar engine. Contact us with your request.

Caterpillar3508DITA

SPECIFICATIONS

V-8, 4-Stroke-Cycle-Diesel
Displacement....................................... 69.06 L (4,214.3 in 3 )
Rated Engine Speed....................................................1800
Bore....................................................... 170.0 mm (6.69 in)
Stroke.................................................... 190.0 mm (7.48 in)
Aspiration................................... Turbocharged-Aftercooled
Governor.............................................................. Mechanical
Weight, Net Dry (approx.).................... 5,996 kg (13,219 lb)
Refill Capacity
Lube Oil System............................... 219.6 L (58.0 gal)
Oil Change Interval.................................................. 500 hrs
Caterpillar Diesel Engine Oil 10W30 or 15W40
Standard Sump Oil Pan
Rotation (from flywheel end).................... Counterclockwise
Flywheel and Flywheel Housing.........................SAE NO. 0
Flywheel Teeth...............................................................151
