Volvo Penta D12-715

D12-1012539040

Used

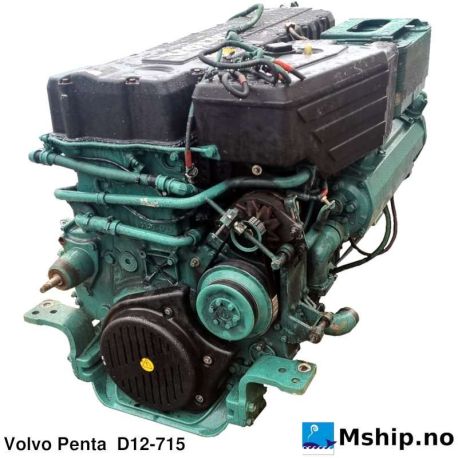

Volvo Penta  D12-715

More details

  • Data sheet

    ManufacturerVolvo Penta
    ModelD12-715
    Serial number1012539040
    Performance specificationD12D MP
    Year2005
    HP715
    kW526
    RPM2300
    Running Hours8500
    Cylinder bore131 mm
    Piston Stroke150 mm
    Number of cylinders6
    Displacement12,1 Liter
    Cylinder configurationIn line
    Rotation directionCCW - Counter clockwise seen from aft
    Injection pump typeElectronic Unit Injectors, one per cylinder, vertically positioned at the center in between the four valves
    Weight1400 kg dry weight
    Amps410
    Volt440
    HZ60
    kVA312
    Gear typeNot included - optional

    More info

    Volvo Penta  D12-715

    Technical description:

    Engine and block

    – Cylinder block and cylinder head made
    of cast-iron
    – One-piece cast-iron cylinder head
    – Ladder frame fitted to engine block
    – Replaceable wet cylinder liners and
    valve seats/guides
    – Drop forged crankshaft with induction
    hardened bearing surfaces and fillets
    with seven main bearings
    – Four valve per cylinder layout with over-
    head camshaft
    – Each cylinder features cross-fl ow inlet
    and exhaust ducts
    – Gallery oil-cooled cast aluminum alloy
    pistons with three piston rings

    Engine mounting
    – Flexible engine mounting (option)

    Lubrication system
    – Integrated oil cooler in cylinder block
    – Twin full fl ow oil filter of spin-on type
    and by-pass filter

    Fuel system
    – Electronic Unit Injectors, one per cylinder,
    vertically positioned at the center in between
    the four valves
    – 6-hole high pressure injector nozzles
    – Gear-driven fuel pump, driven by timing gear
    – Electronically controlled central processing
    system (EMS-2 – Engine Management Sys-
    tem)
    – Electronically controlled injection timing
    – Single fine fuel filter of spin-on type, with wa-
    ter separator and water alarm

    Air inlet and exhaust system
    – Air fi lter with replaceable inserts
    – Wet exhaust elbow (option)
    – Electronically governed wastegate turbo
    – Closed crankcase ventilation

    Cooling system
    – Freshwater-cooled charge air cooler
    – Gear-driven coolant pumps
    – Tubular heat exchanger with priority valve

    Electrical system
    – 24V/80A alternator

    Instruments/controls (included with engine)
    – Complete instrumentation including key
    switch and interlocked alarm
    – EVC monitoring panels for single (or twin
    in stallations as option)
    – Electronic remote control for throttle and
    shift
    – Plug-in connections

    Download

    Volvo-Penta-d12-715.pdf

    Volvo Penta D12-715 product bulletin

    Download (342.6k)
