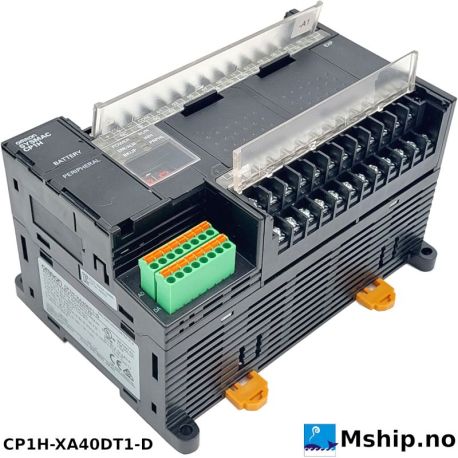

Omron PLCCP1H-XA40DT1-D
Manufacturer | Omron |
Model | CP1H-XA40DT1-D |
Alternative part number | 13516S CP1HXA40DT1D |
PLC, 24 VDC supply, 24 x 24 VDC inputs, 16 x PNP outputs 0.3 A,
4 x analog inputs, 2 x analog outputs, 20K steps program + 32K words data memory
• Pulse output for 4 axes. Advanced power for high-precision positioning control.
• High-speed counters. Differential phases for 4 axes.
Easily handles multi-axis control with a single unit.
• Eight interrupt inputs are built in. Faster processing of approximately 500 instructions speeds up the entire system.
• Serial communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.
• Ethernet Communications. Enabled by using an Option Board. Two ports can be used as an Ethernet port to
perform. Ethernet communications between the CP1H and a host computer.
• Built-in Analog I/O. XA CPU Units provide 4 input words and 2 output words.
• USB Peripheral Port. Another standard feature.
• The structured text (ST) language. Makes math operations even easier.
• Can be used for the CP1W series and CJ series Unit. The extendibility of it is preeminently good.
• LCD displays and settings. Enabled using Option Board.
Number of digital inputs 24
Input type PNP/NPN
Number of digital outputs 16
Number of analog inputs 4
Number of analog outputs 2
Number of encoder input channels 4
