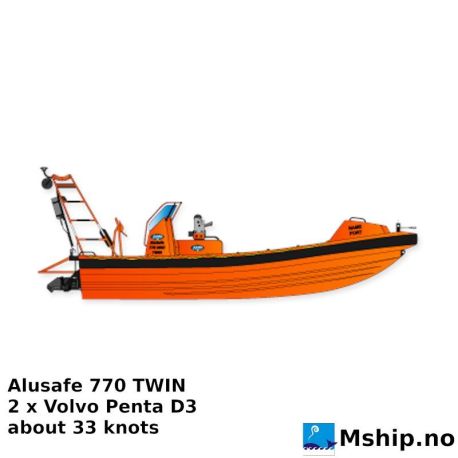

Alusafe 770 Twin with two Volvo Penta D3 https://mship.no View larger

Alusafe 770 Twin

Used

Alusafe 770 Twin

More details

    • Data sheet

    ManufacturerAlusafe
    Model770 Twin
    Running Hours150
    WeightWeight empty: 2 450 kg, Davit load with 10 persons: 3 500 kg
    RemarksMax speed w/3 persons (250 HP): 31-33 knots - with Volvo Penta 2x D3 engines
    Length Overall LOA MeterOverall length: 8,15 meters
    Length between Perpendicular MeterLength hull: 7,0 meters
    Molded Breadth MeterBreadth extreme: 2,7 meters, Breadth hull: 2,1 metres
    Draft (Maximum) Meter0,45 metres
    Total Propulsion HP:250
    Propulsion:2x Hamilton 213 Waterjets

    More info

    Alusafe 770 Twin is a Fast Rescue Craft (FRC) with a hull of marine aluminum
    specially designed for service in the offshore business. The craft is built in
    accordance with SOLAS 83 regulations and NMD’s regulation for rescue craft for
    offshore use.
    Alusafe 770 Twin is a double installation fitted with two engines and two water jets. The
    two propulsion system is completely divided into two separate system, giving this boat fully
    redundant propulsion system.
    The fully planning hull with deep V-bottom design is suitable for high speed ahead and
    has high maneuverability going astern. The V-bottom design also gives easy motion when
    stationary in a critical operation.
    Alusafe 770 Twin is designed to meet the strictest requirements and is certified as a Fast
    Rescue Craft. It is made from marine aluminum. The hull is filled with special closed cell
    foam in all compartments and is therefore unsinkable. The craft is CE certified by DNV in
    accordance with SOLAS.

    The Alusafe 770 Twin is a version of the popular Alusafe 770.

    The twin model is fitted with twin engine/jet installation. The fully planning hull with deep V-bottom design in suitable for high speed ahead and has high maneuverability going astern.

    The V-bottom design also gives easy motion when stationary in a critical operation.

    Alusafe 770 Twin is designed to meet the strictest requirements and is certified as a Fast Rescue Craft.

    It is made from marine aluminum, by the unique patented aluminum extruded profile system, reducing welding to a minimum.

    The hull is fitted with five watertight compartments and is therefore unsinkable.

    The craft is type approved with a CE certificate acc. to Solas 83, nominated body: DNV, in addition it has a type approval from NMD.

    Alusafe 770 Twin MOB boat / rescue boat

    Technical data:

    Overall Length:8.15 meters

    Length Hull: 6.96 meters

    Breadth Extreme: 2.70 meters

    Breadth Hull:2.10 meters

    Draught: 0.45 meters

    WeightEmpty:2300 kg

    Davit Load: 2795 kg (with 6 persons)

    Fuel tank capacity: 2x90

    Max Speed From-To: 33-35 knots with 3 persons

    Engine & Propulsion:

    Engine standard: 2 x Volvo Penta D3 with Hamilton water jet

    Materials:

    Hull made of marine aluminum and fitted with five watertight compartments. The fender system is made of special foam, and protected with tailor-made PVC cover. Lifting arrangement is made of high quality steel, fitted with approve off-load release hook
