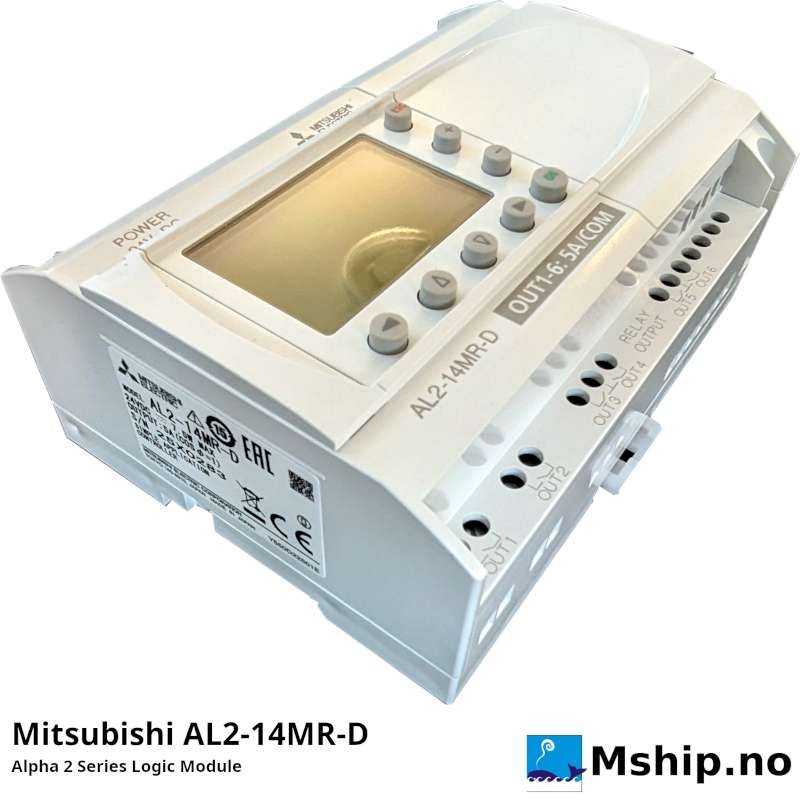

Mitsubishi AL2-14MR-D

MitsubishiAL214MRD

New product

Mitsubishi AL2-14MR-D

More details

    • Data sheet

    ManufacturerMitsubishi
    ModelAlpha 2 Series Logic Module
    Manufacturers part numberAL2-14MR-D
    Alternative part numberAL214MRD
    ClassDNV Approval
    Weight50 gram
    Volt24 Volt input

    More info

    Mitsubishi AL2-14MR-D
    Alpha 2 Series Logic Module

    • Manufacturer Series Alpha 2
    • Number of Inputs 8
    • Output Type :Relay
    • Supply Voltage 24 V dc
    • Input Type    Analogue
    • Number of Outputs    6
    • Program Capacity    200 Blocks
    • Depth    52mm
    •  Width    90mm
    • Length    124.6mm
    • Mounting Type    DIN Rail
    • Maximum Operating Temperature    +55°C
    • Minimum Operating Temperature    -25°C
    • Dimensions    124.6 x 90 x 52 mm
    • Output Current    8 A
    • Programming Interface    AS-I
    • Display Included    Yes

    Specifications

    Primary brand Mitsubishi Electric
    Main function CPU unit
    Product series / family name
    Industrial automation > PLCs (Programmable Logic Controllers) > MELSEC-F (FX) series > Controllers (CPUs)
    Sub-range name MELSEC-F - a2 Alpha2 series
    Functions
    Compact Programmable Logic Controller (PLC) CPU unit with integrated I/Os
    Program execution type -- cyclical / Refresh mode processing
    Supply voltage (DC) 24Vdc
    Programming languages
    Function Block Diagram (FBD)
    Memory capacity 200 function blocks (5KBytes) (EEPROM; Program)
    Connection type screw-clamp connections (I.O's)
    Digital inputs 8 x digital inputs (24Vdc; Sink / source; 10-20ms)
    Digital outputs 6 x digital outputs (Rly. NO contacts; 250Vac / 30Vdc; 10ms)
    Analog inputs 8 x analog inputs (0-10Vdc; 9-bit conversion)
    Ambient air temperature for operation
    +14°F...+136°F / -10°C...+55 °C
    Processing time 1ms + 20μs/logic instruction (simple instruction) / 1 ms
    Order code / Manufacturer SKU AL2-14MR-D
    Manufacturer product status
    Commercialized
    Equivalent to AL214MRD
    Compliant with standard(s)
    CE (EMC directive)
    CE (LVD - Low Voltage Directive)
    UL / cUL
    DNV approval
