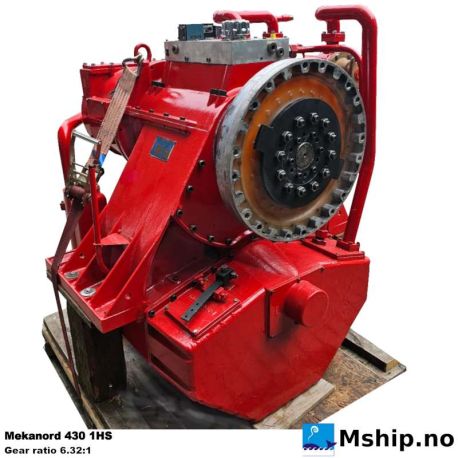

Mekanord 430 1HS

g178929

New product

Mekanord 430 1HS

More details

Data sheet

ManufacturerMekanord
Model430 1HS
Serial number8-022
Year1987
HP0,626 hp / rpm
kW0,460 kW /rpm
OtherWeight: 1380 kg
Gear ratio6.32:1
Gear typeNon Reversing Gearbox CPP - to be used with controllable pitch propeller

More info

Mekanord 430 1HS

• Built-in servosystem for C.P.-propeller.
• Compact design.
• Large economical reduction ratio.
• Optional 1, 2 or 3 P.T.O.’s each with own
hydraulic clutch.
• Rigid cast iron house, freestanding.
• Helical gearwheels in casehardened and grinded highly alloyed steel.
• Hydraulic multiplate clutch.
• Oilsystem with direct driven oilpump, cooler, filter, valves etc.
• Pressure lubricated spherical rollerbearings.
• The gearbox is designed according to the rules of the
classification societies.

Weight: 430-1HS: Excl. PTO = 1340 kg. Incl. PTO = 1380 kg.

Servo for C.P.-propeller:Max force = 20.000 kp -Max stroke = 124 mm

P.T.O. with S.A.E. C-flange and 14 tooth 11/4” involute inside spline.
Max torque from P.T.O.: 900 N.m.  PTO Step-up: 1:1,51.
