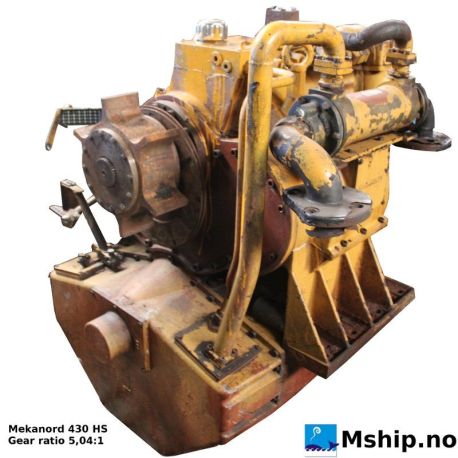

Mekanord 430 HS https://mship.no View larger
Previous Next

Mekanord 430 HS

g173889

Used

Mekanord 430 HS

More details

  • Click HERE for more information

    • Product Request:

    Mekanord 430 HS

    Mekanord 430 HS

    Mekanord 430 HS

    do not include special characters

    * Required fields

    Cancel

    Data sheet

    Manufacturer Mekanord
    Model 430 HS
    Serial number 8-037
    Year 1988
    Gear ratio 5,04:1
    Gear type Non Reversing Gearbox CPP - to be used with controllable pitch propeller

    More info

    Mekanord 430 HS

    • Built-in servosystem for C.P.-propeller.
    • Compact design.
    • Large economical reduction ratio.
    • Optional 1, 2 or 3 P.T.O.’s each with own
    hydraulic clutch.
    • Rigid cast iron house, freestanding.
    • Helical gearwheels in casehardened and grinded highly alloyed steel.
    • Hydraulic multiplate clutch.
    • Oilsystem with direct driven oilpump, cooler, filter, valves etc.
    • Pressure lubricated spherical rollerbearings.
    • The gearbox is designed according to the rules of the
    classification societies.

    Download

    Mekanord-430HS.pdf

    Mekanord-430HS.pdf

    Download (3.26M)
