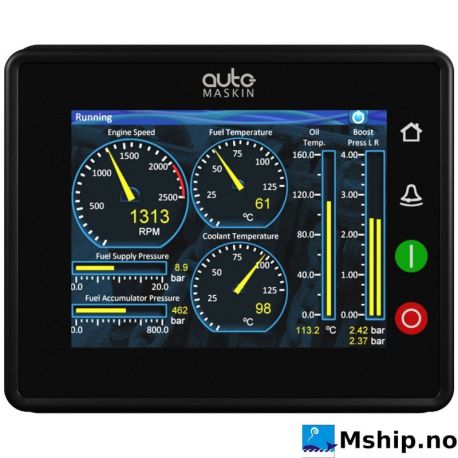

RP 210E Remote Panel

RP_210E_Remote_Panel

New product

The RP 210E is a high resolution, sunlight capable remote touchscreen panel for the 200 and 400 series of Marine Pro engine controllers (DCU’s). This responsive touch screen panel is fully weather protected both front and rear, with an IP56 environmental qualification and weather tight connectors.

More details

  • Ask About This Product
  • More info

    The RP 210E is a high resolution, sunlight capable remote touchscreen panel for the 200 and 400 series of Marine Pro engine controllers (DCU’s). This responsive touch screen panel is fully weather protected both front and rear, with an IP56 environmental qualification and weather tight connectors.

    Compared to the existing RP 210 remote panel, the new RP 210E has the following advantages:

    • Higher resolution screen and better colour depth
    • Much faster processor
    • Capacitive touch screen technology instead of resistive gives better response to operator inputs
    • IP56 sealed front and rear
    • Deutsch DT-connector connectivity

    The panel connects to a DCU using only a standard Ethernet cable, and will automatically “find” any DCU’s that are connected to the network. No configuring, no setup, no hassle. Additionally, when connected, the RP 210E will update itself with any DCU configuration changes automatically, providing seamless consistency across all panels. Today, there is a “one to one” relationship with the network in that the RP displays a replica from one DCU.

    Using the brightness adjustable touch screen, the operator gets full overview and control of the equipment, exactly as operating the DCU engine controller locally at the engine. The operator can select the language at the RP 210E independently of the DCU.

    There is no practical limit to how many RP 210E remote panels that can be connected to one engine controller.

    Note! A Basic Harness Kit (P/N: 1006946)  including one prewired Deutsch DT-connector with a 2 m power cable and three sealing blind plugs for easy installation is available and if needed, this must be ordered separately.

    Size

    w 167 x h 135 x d 68 mm

    Cut out

    W 156 x H 124 mm, Access depth 90 mm

    Screen

    262144 colors, 5.7", Resolution 640 x 480 pixels

    IP

    IP56

    Power Supply , Vcc

    24/12 VDC, Min 8 VDC, Max 32 VDC

    Compatible products

    The RP 210E can be attached to the following products:

    Engine controllers:

    DCU 210E Engine Controller

    DCU 410E Engine Controller

    DCU 208E Engine Controller

    DCU 408E Engine Controller

    Legacy Engine Controllers:

    DCU 210 Engine Controller

    DCU 208 Engine Controller

    DCU 410 Engine Controller

    DCU 408 Engine Controller
