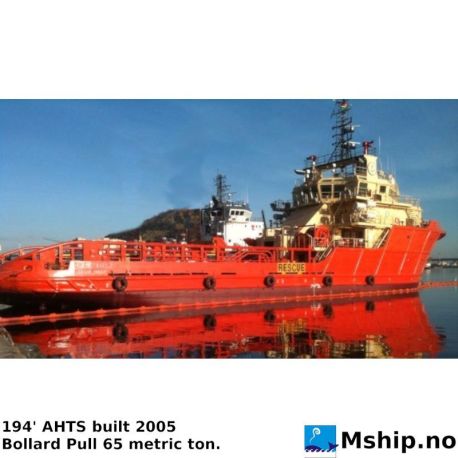

194' AHTS Built 2005.

VSL2019-39368364

Used

194' AHTS Built 2005

More details

  • Click HERE for more information
  • Product Request:


    194' AHTS Built 2005.

    194' AHTS Built 2005.

    194' AHTS Built 2005

    do not include special characters

    * Required fields

    Cancel

    Data sheet

    Year 2005
    HP 5150
    Length Overall LOA Meter 59,23
    Length between Perpendicular Meter 52,50
    Molded Breadth Meter 14,95
    Design Draft Meter 4,95
    Molded Depth Meter 6,10
    Cargo Deck Area: 350 m2
    Deck Cargo Capacity: 500 metric Ton.
    Deadweight Tonnage: 1364 Metric Ton
    Gross tonnage ITC (registred) 1677 Metric Ton
    Net Tonnage ITC (registred) 503 Metric ton
    Fuel Oil: 540 M3
    Tow Pins: 2 x Electro-Hydraulic with turntable top flaps
    Fresh Water M³ 360 M3
    Stern Roller: 4,5 m L x 1,60 m (dia), SWL 180 metric ton
    Ballast M³ Ballast/Drill water 400 M3
    Dry Bulk: Cement tank 187 m3 (4 x 46,72 m3)
    Liquid Mud: 370 m3
    Main Engines: 2 x Caterpillar 3516B - 2 x 1920 kW (2575 hp) @ 1600 rpm
    Bow Thrusters: 1 x 325 kW electric Kawasaki KT55B3 tunnel type witt CPP propeller - 5,6 ton thrust.
    Total Propulsion HP: 5150
    Propulsion: 2 x CPP Berg/Caterpillar with kort Nozzle
    Ship’s Service Generators: 3 x 340 kW @ 1500 rpm Caterpillar 3408 coupled with Leroy Somer LSAM. 1L9 alternators rated 320 kW/415V 50 HZ
    Tugger: 2 x 10 mt @ 15 m/min electro/hydraulic Mentrade MM1022-HUW. Drum capacity: 220 MLenghth x 22 mm Dia SWR
    Shark Jaws: 1 set electro-hydraulic Karmfork - SWL 300 m/t
    AHTS Winch: 2 x electro-hydraulic double drum. Mentrade MM1022-AHTW. 150 m/t @ 6.o m/s 1 st. layer. Static pull: 165 m/t @ 1 st. layer. Brake capacity: 200 m/t static @ 1 st. layer.
    ACCOMMODATIONS: 4 x1 men +3x2 men + 8x4 men. total 42 men. All cabins fully air-conditioned & c/w attached washroom.
    LIFESAVING EQUIPMENT SOLAS
    Deck strenght m ² 7,5 ton
    Firefighting: FiFi 1 with all around water curtain.
    Fire pump 2 x 1550 m3 @ 13 Bar. Unitor SFP 250x350
    Monitors 1 x 300-1200 m3, water/foam Unitor FFS1200LB + 1 x 1 x 1200 m3, water Unitor FFS1200LB .
    Maximum speed 13 knots
    Economical speed 10 knots
    Fuel consumption 19 m3/24 hours @ max speed - 12 m3/24 hours @ econ speed.
    Bollard pull 65 Metric ton

    More info

    194' AHTS Built 2005

    Two identical sister vessels available, the oher vessel is built 2006. Click HERE to see the sister vessel.
