240' AHTS. DP2. Year Built: 1986, converted 2002

VSL2019-18701973

Used

240' AHTS. DP2.  Year Built: 1986, converted 2002

More details

    • Data sheet

    Manufacturer NORTH AMERICAN SHIPBUILDING INC.
    Model 240' AHTS
    Year 1986, converted 2002
    Fuel Type MDO
    Class ABS ✠A1, Towing Vessel, Offshore Support Vessel AH, AMS, DPS-2
    DIMENSIONs 73.15 m X 15.85 m X 5.64 m
    Design Draft Meter 4.57 m
    Draft (Maximum) Meter 4.88 m
    Loadline Displacement: 3,830.68 MT
    Clear Deck M² 41.15 m x 13.41 m
    Cargo Deck Area: 551.82 m 2
    Storage Reels: Two (2) x 11,480’ (3,499.10 m) of 3” (7.62 cm) wire
    Deck Cargo Capacity: 843.32 MT
    Deadweight Tonnage: 1,551.50 MT
    Fuel Oil: 675.98 m 3
    Tow Pins: One (1) x 350 MT
    Fresh Water M³ 87.32 m 3
    Chain Lockers: Two (2) x 6,000’ (1,828.8 m) of 3.5” (8.89 cm) chain each

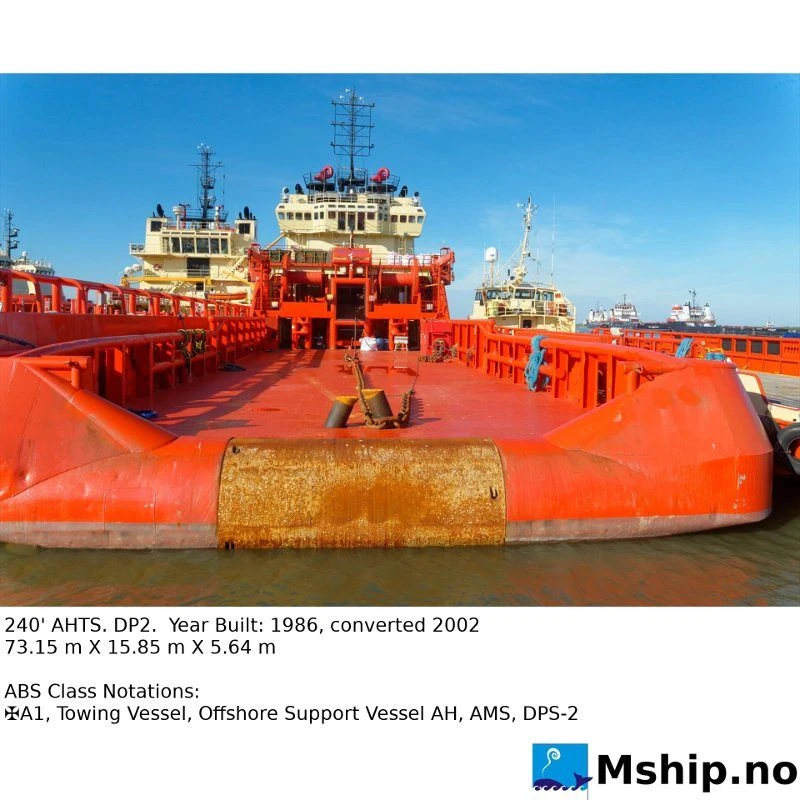

    Stern Roller: One (1) x 8’ x 6’
    Ballast M³ 1,232.59 m 3
    Dry Bulk: 144.98 m 3 @ 5.5 bars
    Liquid Mud: 354.54 m 3
    ACCOMMODATIONS: 41
    Main Engines: Three (3) EMD 20-645 E7, 10,800 BHP
    Bow Thrusters: Two (2) 150TV-D Tunne
    Stern Thruster: One (1) 1,200 HP NASB/Ulstein 360° Jet Azimuthing
    Total Propulsion HP: 13,200 HP
    Propulsion: Three (3) CPP
    Shaft Generators: Three (3) x 2,400 HP/1,800 kW
    Ship’s Service Generators: Two (2) x 500 kW
    Positioning: DP 2
    Tugger: One (1) x 12-Ton Forward Two (2) x 10-Ton Aft
    Cranes: Two (2) x 10 tons @ 30° radius
    Shark Jaws: One (1) x 350 MT
    AHTS Winch: Brattvaag BSL 350 W Double Drum with chain mouse, 350 MT or 926,100 lb line pull or 926 KIPS line pull per drum Two (2) x 9,800’ (2,987.04 m) of 3” (7.62 cm) wire per drum @ 350 MT
    LIFESAVING EQUIPMENT Four (4) x 25-Man Life Rafts One (1) x Narwhal SV-400 SOLAS FRC
    Firefighting: Two (2) Monitors @ 12,500 GPM

    More info

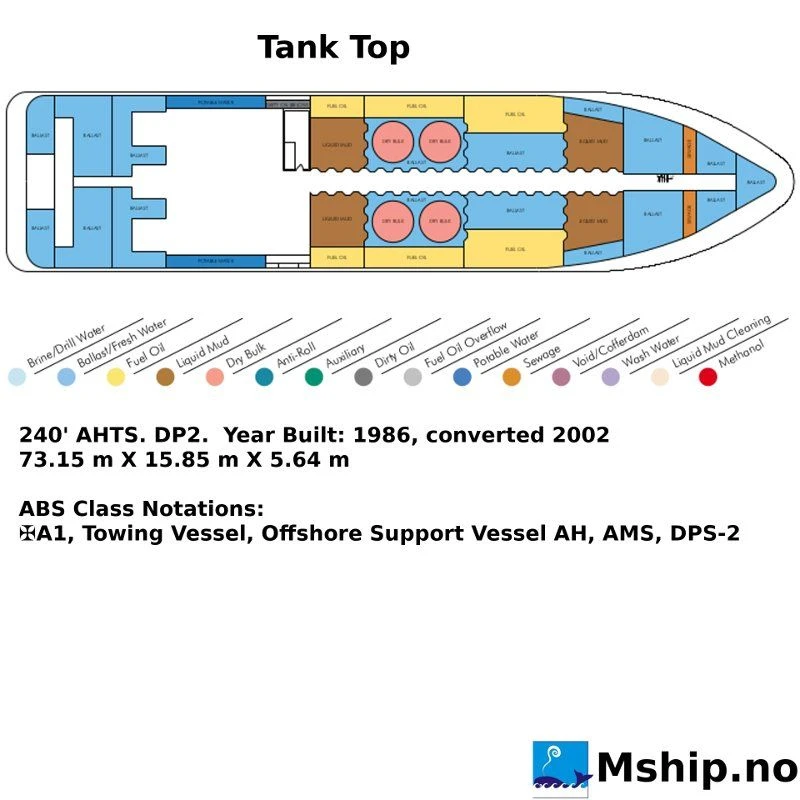

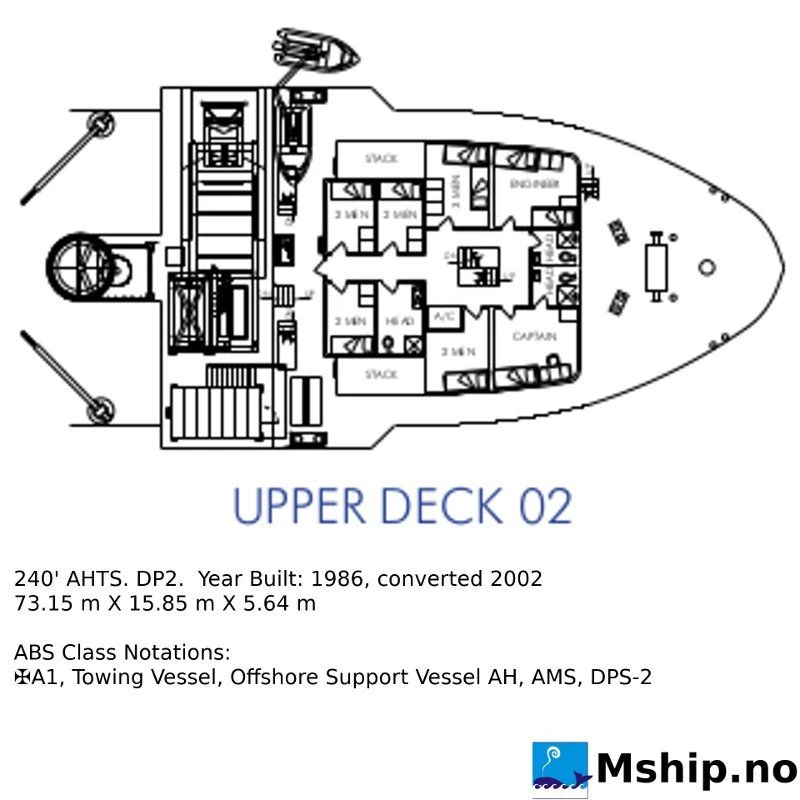

    240' AHTS. DP2.  Year Built: 1986, converted 2002
    73.15 m X 15.85 m X 5.64 m

    ABS Class Notations: ✠A1, Towing Vessel, Offshore Support Vessel AH, AMS, DPS-2

    ELECTRONICS

    • Two (2) Furuno FR-2115 Radars
    • GMDSS
    • Iridium Satellite Phone
    • Marine Technologies Bridge Mate DP 2
    • Marine Technologies Bridge Mate Autopilot
    • Furuno Color-View Depth Sounder
    • Furuno VHF FM-8500 @ Winch Operator Panel
    • Seven (7) Color Monitors
    • JRC NO2-127C Inmarsat-C Telex (GMDSS)
    • SEA 222 Single Sideband Radio with Ringer
    • JRC NCH-802 Controller MF/HF Radio
    • JRC NCR-300A Navtex
    • Raytheon NAV 398 GPS
    • Furuno FAI50 AIS
