Viewed products
-
Deutz MWM TBD604 BV12
Deutz MWM TBD604 BV12
New products
-
Mean Well S-100F-7.5
Mean Well S-100F-7.5AC-DC Enclosed power supply
-
E-Puls controller type EC-102
E-Puls-EC-102
-
Bergen KVGS12G Lean Burn Gas generatorset 2325 kVA
Bergen KVGS12G Lean Burn Gas generatorset 2325 kVA
-
Volvo Penta TAMD122A
Volvo Penta TAMD 122A
-
B&W Alpha 39KV.11 gear
B&W Alpha 39KV.11 gear
-
B&W Alpha 8L 23/30
B&W Alpha 8L 23/30
-
MAN B&W Alpha 8L 23/30-DKV
MAN B&W Alpha 8L 23/30-DKV
-
Bosch Control Amplifier card
Bosch Control Amplifier card0811405011
Data sheet
| Manufacturer | Deutz MWM |
| Model | TBD604 BV12 |
| Serial number | 7285036 |
| Year | 1986 |
| HP | 1475 hp @ 1500 rpm 1632 hp @ 1690 rpm / 1795 hp @ 1745 rpm |
| kW | 1100 kW@ 1500 rpm / 1200 kW @ 1690 rpm / 1320 kW @ 1745 rpm |
| RPM | 1500 /1690 / 1745 |
| Running Hours | less than 150 since new |
| Cylinder bore | 170 mm |
| Piston Stroke | 195 mm |
| Number of cylinders | 12 |
| Displacement | 53,1 Liter |
| Cylinder configuration | V-engine |
| Rotation direction | CCW - Counter clockwise seen from aft |
| Fuel Type | Diesel |
| Injection pump type | Block pump with internal camshaft. The camshaft gear wheel of the engine drives the gear wheel, which is mounted on the internal camshaft of the block pump. |
| Other | IMO type double wall high pressure injection tubes |
| Weight | 3,89 ton with flywheel |
| Fuel consumption | 192 - 202 g/kWh using a fuel with a lower calorific value of 42,700 kJ/kg (10,200 kcal/kg) as per DIN 6271 |
More info

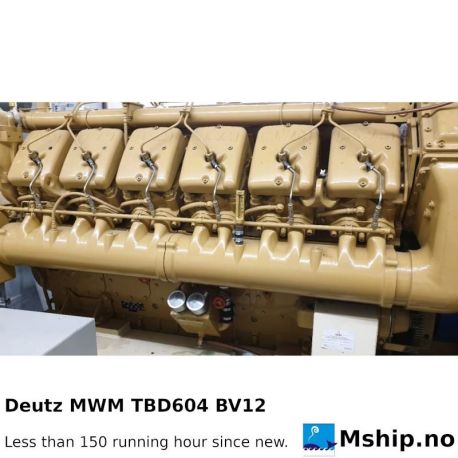

Deutz MWM TBD604 BV12
This engine have less than 150 running hours since new.
