Manufacturer | Mekanord |
Model | 350HS |
Serial number | 9-028 |
Year | 1994 |
HP | Power Factor 0,333 HP / RPM |
kW | Power Factor 0,245kW / RPM |
Weight | About 600 kg |
Gear type | Non Reversing Gearbox CPP - to be used with controllable pitch propeller |
Gear ratio | 5,94:1 |

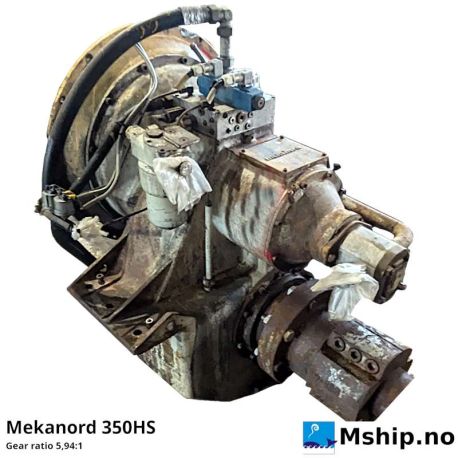

Mekanord 350HS
Servo for propeller:
Max force = 120 kN
Max stroke = 90 mm
• Large economical reduction ratio.
• Built-in servosystem for C.P.-propeller.
• Compact design with short building length.
• Optional 1 or 2 P.T.O.’s each with own hydraulic clutch.
• Rigid cast iron house with S.A.E.1 flange towards the engine.
• Helical gearwheels in casehardened and grinded highly
alloyed steel.
• Hydraulic multiplate clutch.
• Oilsystem with direct driven oilpump, cooler, filter, valves etc.
• Pressure lubricated spherical rollerbearings.
• The 350 gearbox is designed according to the rules of the
classification societies.
