|HP||1341 @ 2100 rpm|
|kW||1000 @ 2100 rpm|
|RPM||max 2100 rpm in|
|Class||DNV Type approved|
|Gear type||Non Reversing Gearbox CPP - to be used with controllable pitch propeller|
The gearbox are manufactured with the following main components:
- Fitted with 3 Power take-off ( PTO)
- Cast iron gearbox housing
- Input shaft arranged for flexible coupling
- Hydraulic operated multi-plate clutch with soft-valve for secure and soft engagement
- Gearwheels with hardened and ground helical teeth for silent operation
- Common oil system for lubrication, clutch and pitch servo
- Bearings of roller type with a low friction losses and long lifetime
- Spherical roller thrust bearing with low friction losses and long lifetime
- Output shaft with flange arrangement for connection to propeller shaft
- Servo system for pitch adjustment built into the gearbox

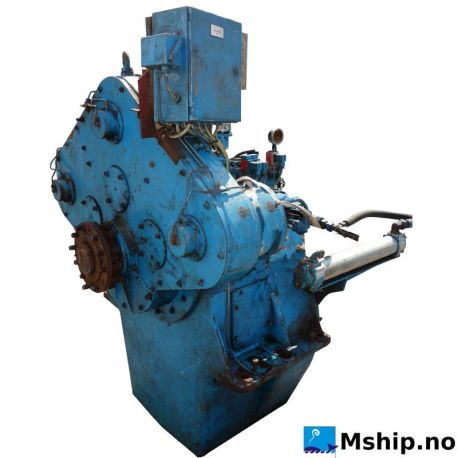

This used Finnoy gear have when new been fitted to Caterpillar 3508B engine with output rating 783 kw @ 1600 rpm.
- - Identification/number plate is missing. All information/Technical data is based on information recived from manufacturer.
