Eltek SMPS 1000
Eltek SMPS 1000 SI 24VPart Nr 241113.520
New products
-
Zenitel SPA-4WAY entertainment board 990-363
Zenitel / Vingtor SPA-4WAY entertainment 6 zones board (990-363).
-
Zenitel SPA-CHIME4-V2 board 990-558
Zenitel / Vingtor SPA-CHIME4-V2 chime board (990-558) for SPA V2 PA...
-
Zenitel SPA terminal board V2 990-552
Zenitel / Vingtor SPA terminal board V2 (990-552) from the SPA-120-V2 PA...
-
Moeller LE4-116-XD1 digital output expansion
Moeller LE4-116-XD1 digital expansion module, 16 outputs 24 V DC 0.5 A.
-
Moeller LE4-206-AA2 analog expansion module
Moeller LE4-206-AA2 analog expansion, 4 analog inputs and 2 analog...
-
ABB TB805 ModuleBus cable adaptor-out
ABB TB805 (3BSE008534R1) S800 I/O ModuleBus cable adaptor-out.
-
Norselight searchlight control panel 4021902
Norselight searchlight control panel 4021902 (SH R10, 230 V) with speed,...
-
Phoenix PLC-OSP-24DC/24DC/2 solid-state relay
Phoenix Contact PLC-OSP-24DC/24DC/2: base PLC-BSP-24DC/21 with...
-
Phoenix Contact UT 4 fuse terminal block
Phoenix Contact UT 4 fuse terminal block, 4 mm², lever fuse holder with...
-
ABB KZ300 main contacts SK826200-A
ABB KZ300 main contact set SK826200-A for EH 250 / EH 300 contactors,...
-
Wärtsilä pushbutton clear, EAO 61-8420
Wärtsilä spare part «Pushbar clear»: EAO series 61 illuminated...
-
PULS ML70.100 power supply 24 V
PULS ML70.100 DIN rail power supply 24 V DC 3 A, 72 W.
-
Omron G2R-2-SNDI relay 24 V DC
Omron G2R-2-SNDI(S) 24 V DC relay with LED and diode, 2 changeover 5 A,...
-
Telemecanique XD2PA12 joystick
Telemecanique XD2 PA12 joystick controller Ø 22 mm, 2 directions, 1 NO...
-
Weidmüller WAS5 CCC DC signal isolator
Weidmüller WAS5 CCC DC isolating signal converter, 0–20 mA in and out,...
-
Omron G2RV-SL500 relay 24 V DC
Omron G2RV-SL500 slim relay 24 V DC with plug-in G2RV-1-S relay, 1...
Price on request
or call +47 908 92 500
Data sheet
| Manufacturer | Eltek |
| Other | Alarm relay 125 V DC / 1 A floating; current sharing ±5 %; remote sense; ext. shutdown 5–30 V DC; LEDs Power / Limit / Alarm; input fuse F 8 A (H) 5×20 mm; power factor above 0.99; efficiency above 91 %; MTBF 433 944 h (Bellcore, +25 °C) |
| Weight | Below 2.8 kg |
| Amps | Input 4.8 A at 230 V (5.4 A max. per label); output approx. 37 A (constant power 920 W) |
| Volt | Input 230 V AC: 205–275 V full 1000 W class (150–205 V reduced to 730 W), 45–66 Hz; output 26.8 V DC nominal (adjustable 20–30 V, OVP 30 V) |
| Connection / terminals | Rear DIN 41612 connectors: F24+H7 (AC input, alarm relay, sense, shutdown, share bus) and H15 (DC output) |
| Standards / approvals | Safety EN 60950 / IEC 950; EMC EN 61000-6-3, EN 61000-6-2, EN 300 386-2 (earlier EN 50081/50082, E10 marine); environment ETSI EN 300 019-2-1; cURus, CE |
| Working temperature max, celsius degrees | Operating −10 °C to +70 °C; storage −25 °C to +85 °C |
| DIMENSIONs | 6U plug-in module: 66.8 × 264 × 220 mm (W × H × D), 240 mm incl. handle |
More info

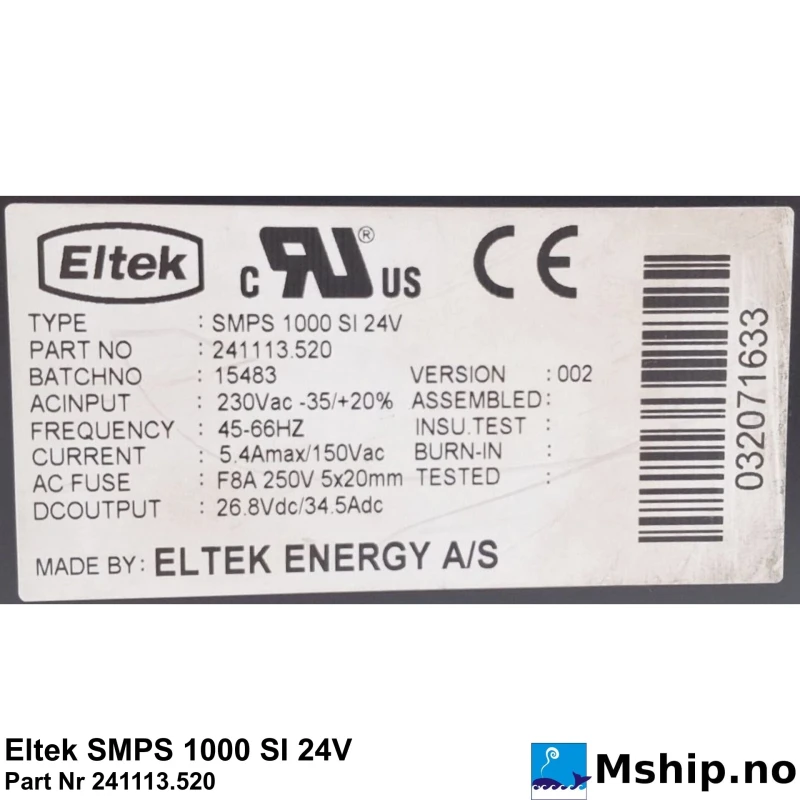

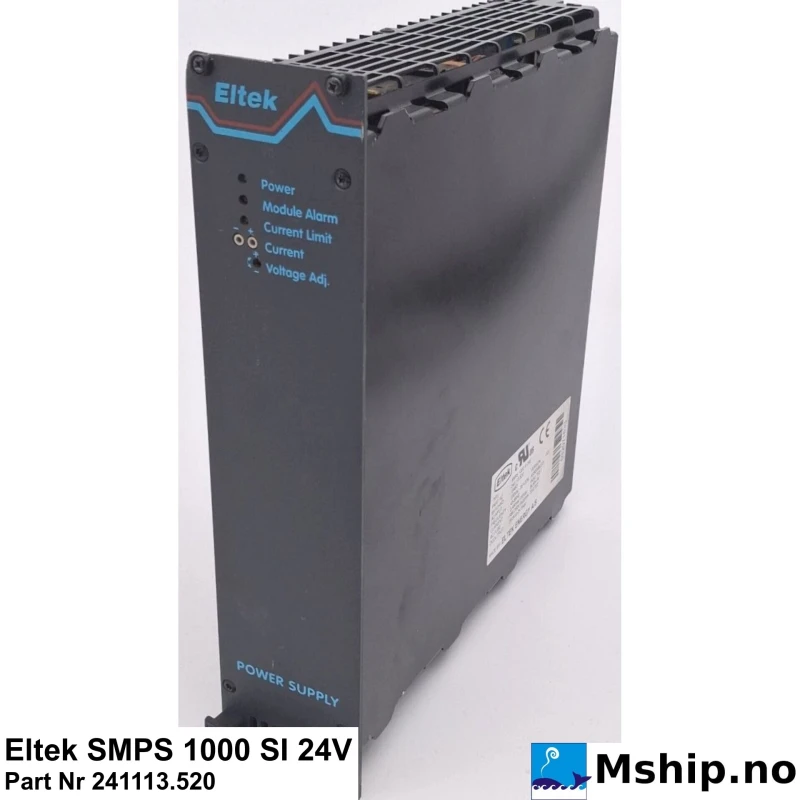

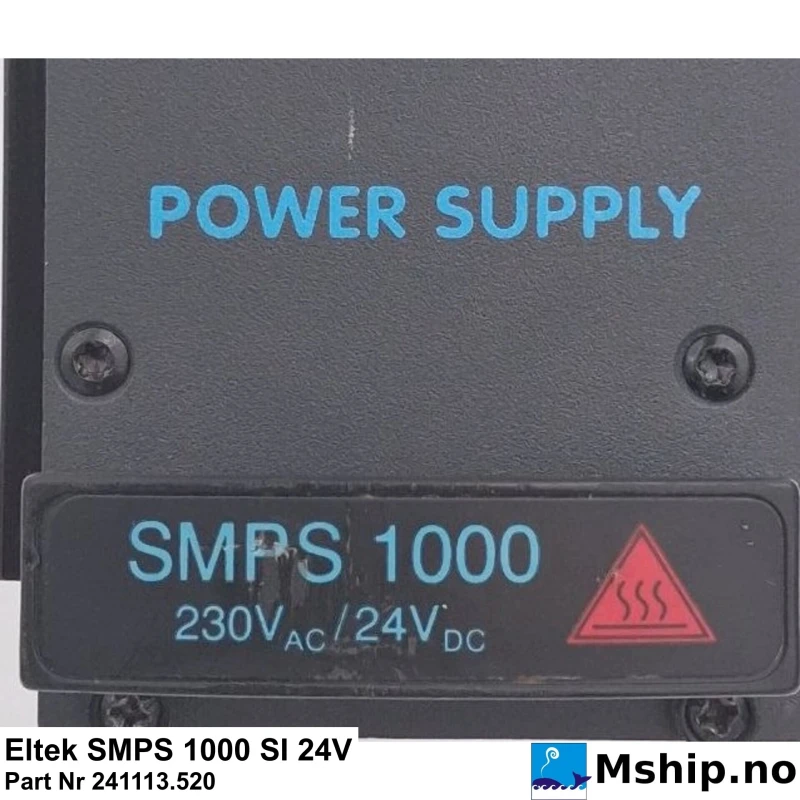

Eltek SMPS 1000 SI 24V
Part Nr 241113.520
Batch: 15483
Version: 002
Data sheet values (Eltek installation guide SMPS 1000, 1999)
- Input 230 V AC nominal (207–275 V; reduced power 150–207 V), 45–65 Hz, 4.8 A at 230 V; power factor approx. 0.995; input fuse F 8 A (H) 5 × 20 mm
- Output 26.8 V DC nominal, adjustable 20–30 V, 920 W; constant power 36–38 A (37 A at 24 V); overvoltage protection 30 V; ripple below 100 mV p-p
- Active current sharing for parallel/redundant modules (±5 %), remote sense, external shutdown (5–30 V), floating alarm relay 125 V DC / 1 A

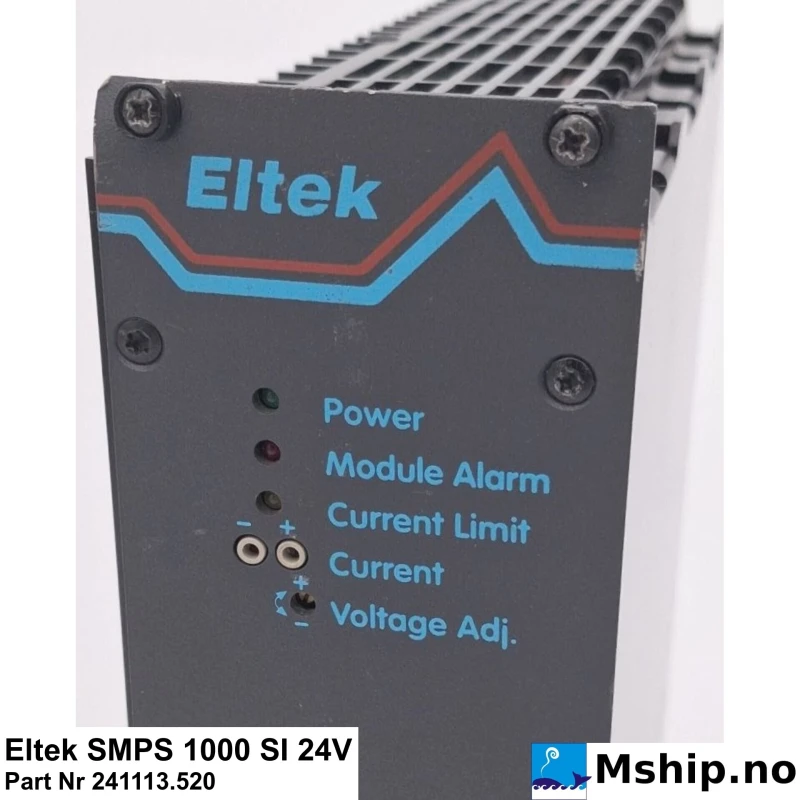

- Front LEDs Power (green), Limit (yellow), Alarm (red); current test points (5 mV/A) and voltage adjustment
- Plug-in module 6U: 66.8 mm wide, 264 mm high, 220 mm deep (240 mm with connectors and handle), below 2.8 kg; normally fitted in an Eltek PR 700 sub-rack
- Operating −10 °C to +70 °C, storage −25 °C to +85 °C; EMC EN 50081/50082 and E10 marine; safety IEC 950
The SMPS 1000 is also the rectifier module of the Eltek MPSU 4000 / 5000 / 6000 and PRS 700 power systems (Eltek product catalogue 2004); in the PRS 700 (up to 7–21 modules, 7–21 kW), which is monitored by the AL 1000 or AL 175 NT alarm module.
Connection diagram

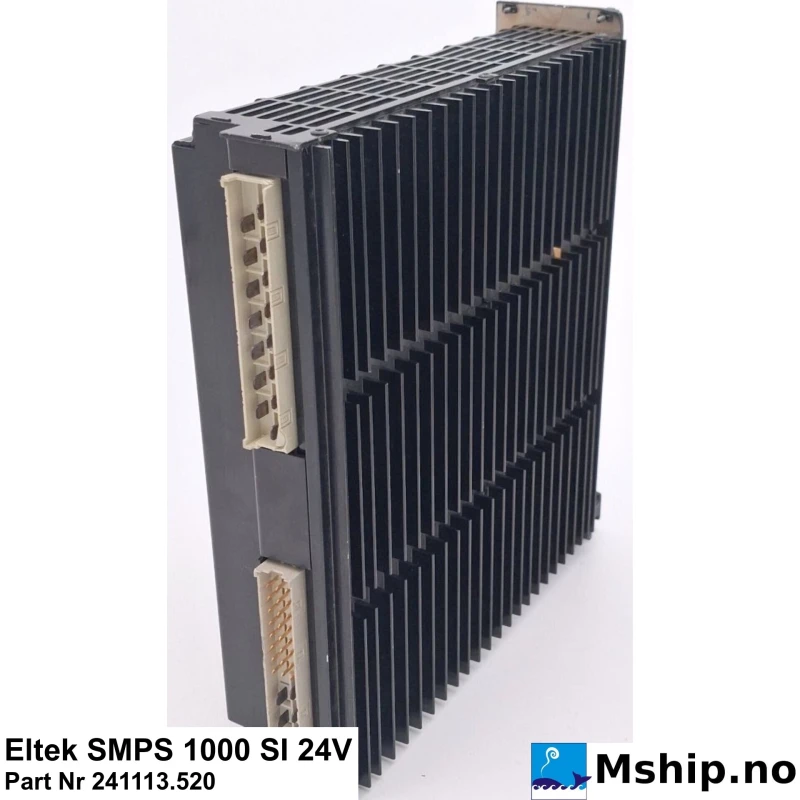

Lower connector DIN F24+H7: 28 live, 30 neutral, 32 earth; alarm relay AL1 16d NO / 16b C / 16z NC (energised in normal operation); remote sense 8d + / 6b −; shutdown 12d; current share bus 6d. Upper connector DIN H15: output + on pins 4, 12, 14, 16, 24, 26, 28; output − on 6, 8, 10, 18, 20, 22, 30; 32 earth.
