Eltek SMPS 250

eltek241110155

Used

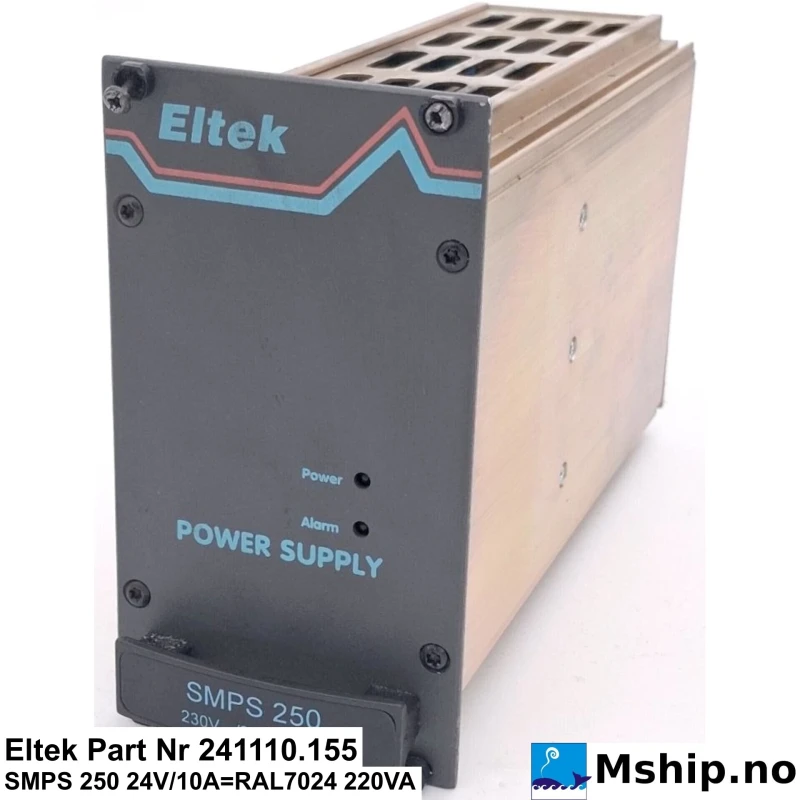

Eltek SMPS 250
Part Nr 241110.155

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer Eltek
Model SMPS 250
Manufacturers part number 241110.155
Alternative part number 241110155
Serial number 040800064
Other 220 VA, version 002, batch 11102, made by Eltek Energy A/S, Norway; efficiency above 90 %, power factor above 0.6; ripple below 100 mV p-p; hold-up above 10 ms; active current sharing; LEDs Power (green) / Alarm (red)
Amps Output 10 A DC; input below 2.17 A at 230 V AC, full load
Volt Input 230 V AC ±20 %, 40–400 Hz; output 27.3 V DC (adjustable 23–29 V DC)

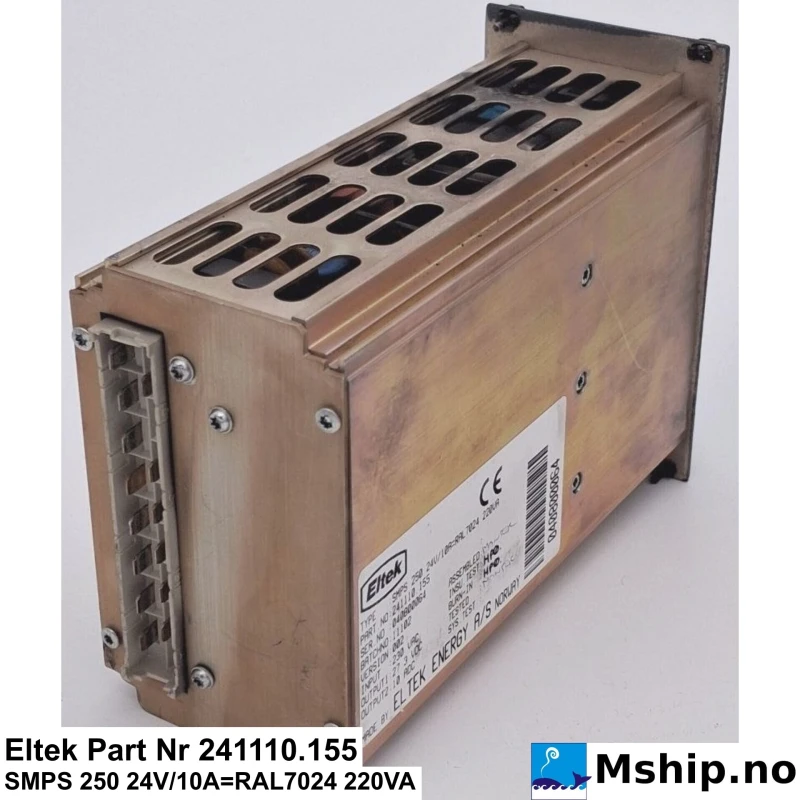

Connection / terminals Rear DIN 41612 type H15 connector (rows d/z); pin assignment not documented
Standards / approvals EMC EN 50081-1 / EN 50082-2; safety IEC 950, EN 60950; CE
Working temperature max, celsius degrees Operating −10 °C to +40 °C; storage −25 °C to +85 °C

More info

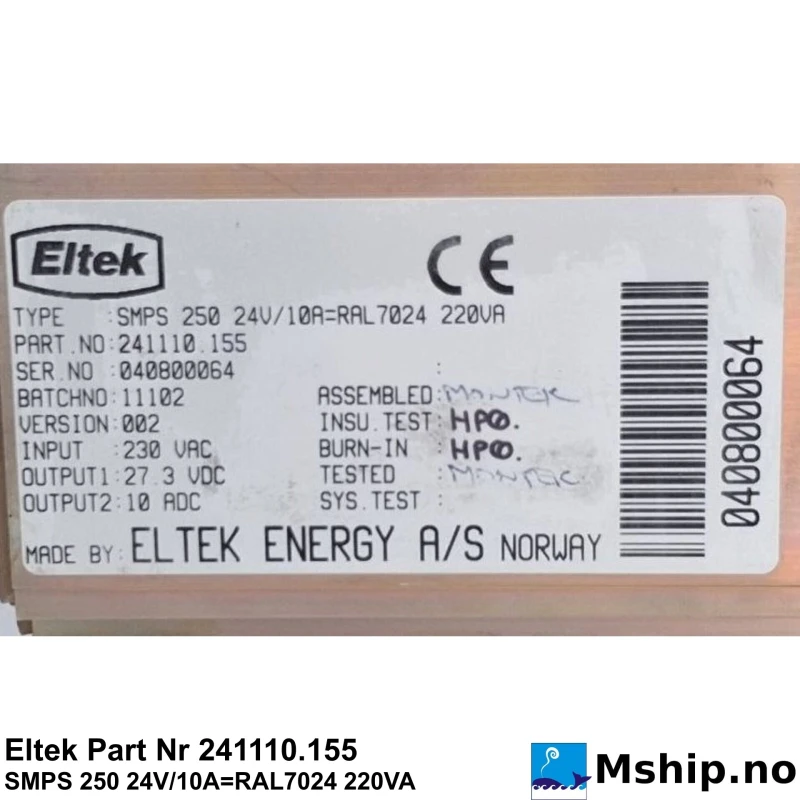

Eltek SMPS 250 24V/10A=RAL7024 220VA
Part Nr 241110.155

Batch: 11102
Version: 002

Data sheet values (Eltek PRS 250 system brochure, 2000)

SMPS 250 is the 24 V / 10 A (or 48 V / 5 A) rectifier module of the Eltek PRS 250 power rack system, which holds up to 6 or 12 modules in parallel with battery back-up.

  • Input 230 V AC ±20 % single phase, 40–400 Hz, below 2.17 A RMS at full load; efficiency above 90 %, power factor above 0.6
  • Output 24 V version adjustable 23–29 V DC, 10 A; regulation ±0.5 % (0–100 % load); dynamic response ±1 %, below 10 ms; hold-up above 10 ms
  • Ripple below 100 mV p-p, psophometric noise below 2 mV; active current sharing by common voltage reference
  • Automatic module disconnect at high output voltage; isolation input/earth 1.5 kV AC, input/output 3.0 kV AC, output/earth 500 V DC
  • EMC EN 50081-1 / EN 50082-2, safety IEC 950 / EN 60950, CE; operating −10 °C to +40 °C, storage −25 °C to +85 °C

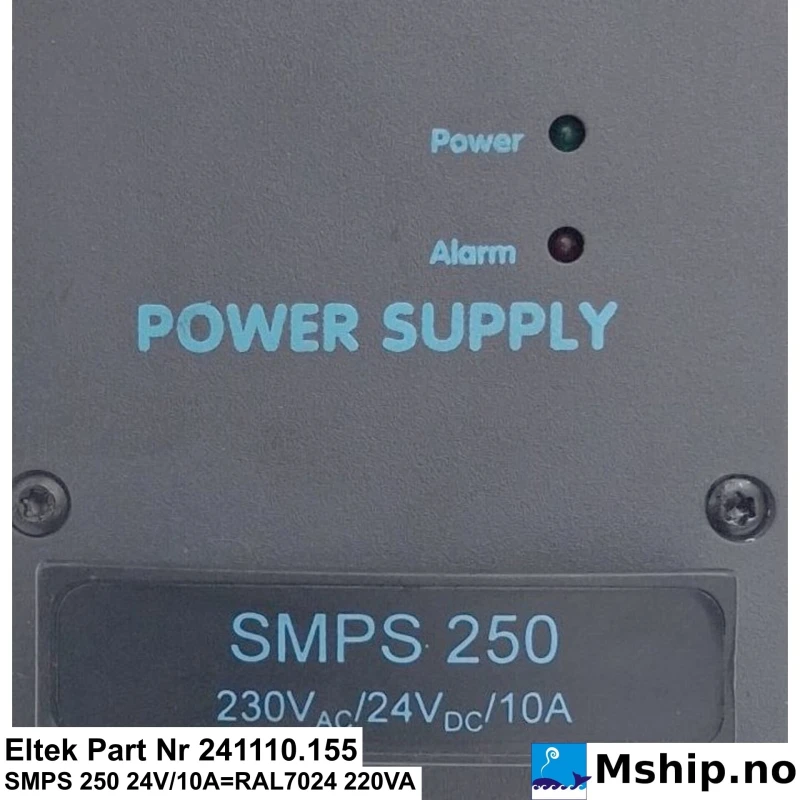

  • Front LEDs Power On (green) and Module Error (red); rear DIN 41612 H15 plug-in connector
