Finnøy G42FK — Manufacturer: FINNØY, Model: G42FK, Year: 1998, HP: 1341 @ 2100 rpm, kW: 1000 @ 2100 rpm, RPM: max 2100 rpm in, Class: DNV Type approved, Gear type: Non Reversing Gearbox CPP - to be used with controllable pitch propeller, Gear ratio: 5,48:1 View larger
Previous Next

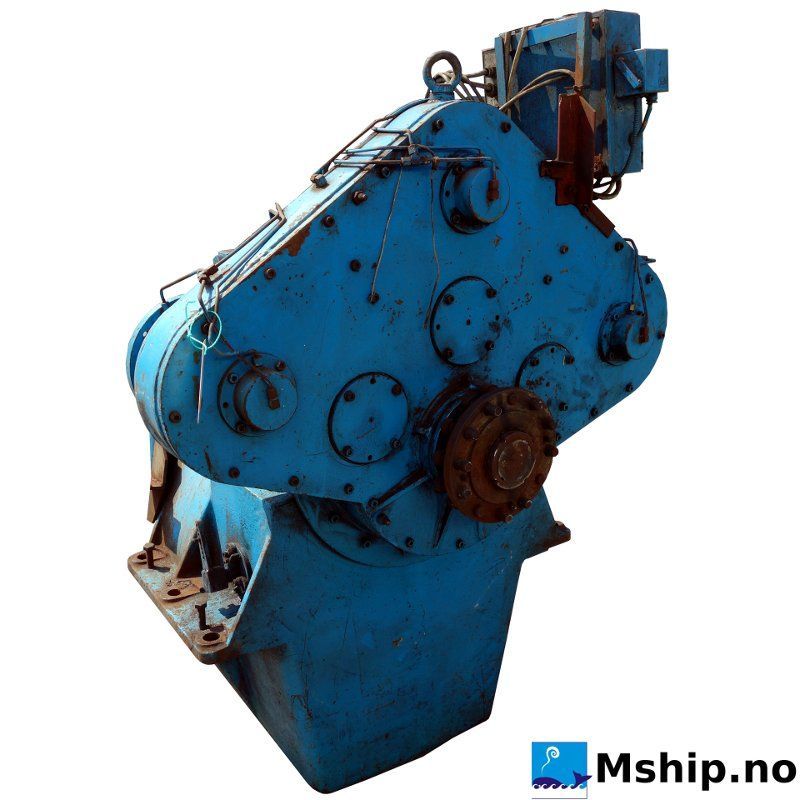

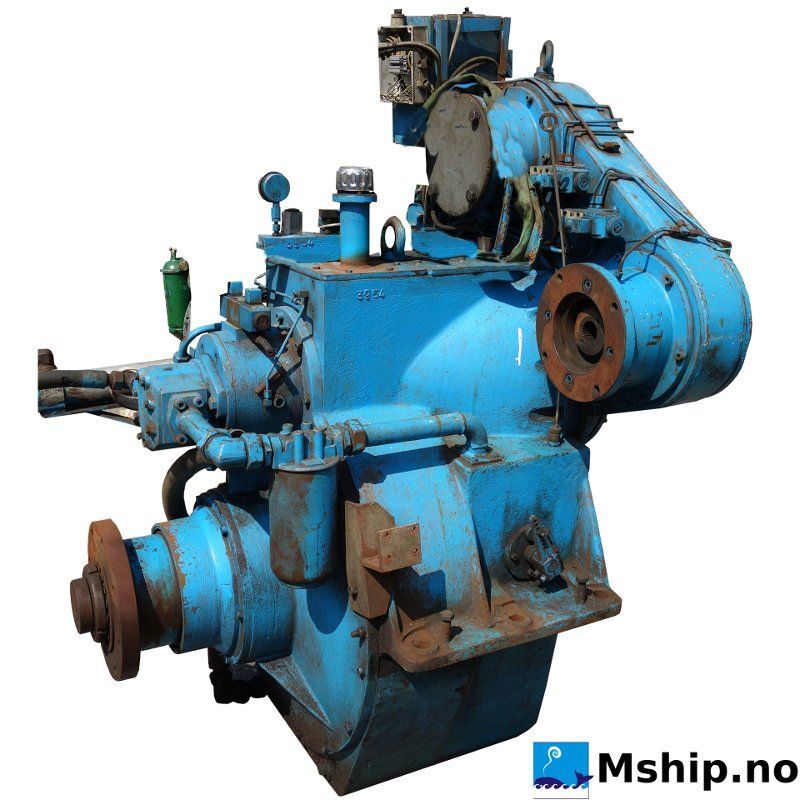

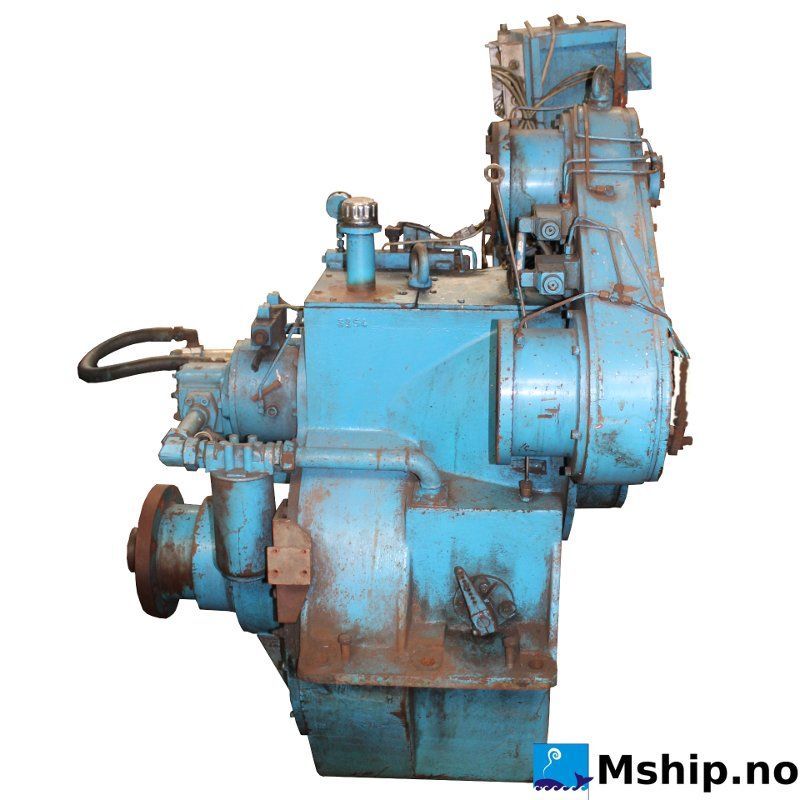

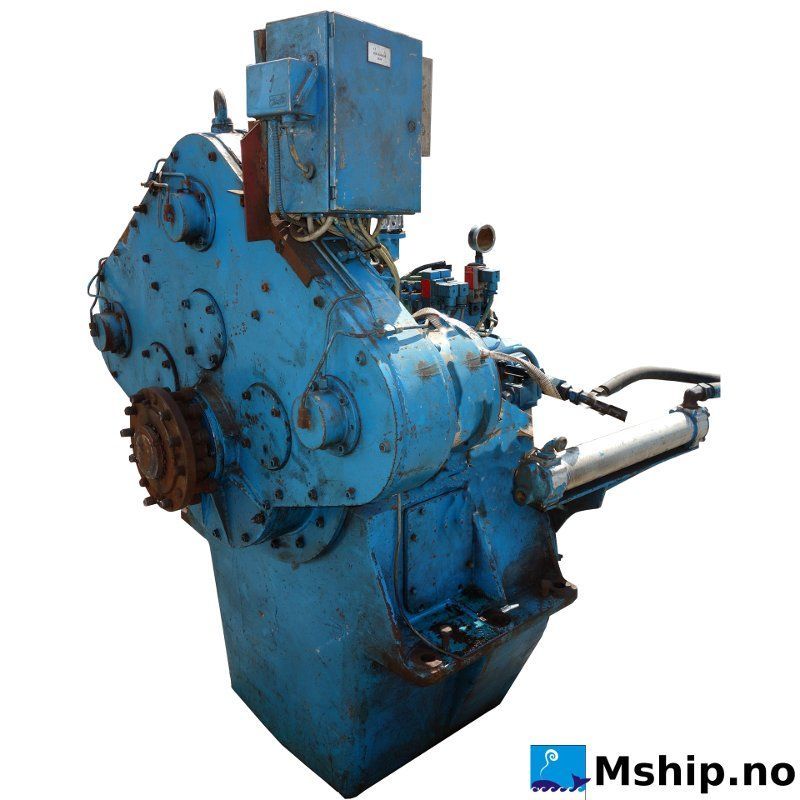

Finnøy G42FK

g396900

Used

Finnøy G42FK

More details

Price on request

or call +47 908 92 500

Data sheet

Manufacturer FINNØY
Model G42FK
Year 1998
HP 1341 @ 2100 rpm
kW 1000 @ 2100 rpm
RPM max 2100 rpm in
Class DNV Type approved
Gear type Non Reversing Gearbox CPP - to be used with controllable pitch propeller
Gear ratio 5,48:1

More info

Finnøy G42FK

The gearbox are manufactured with the following main components:

- Fitted with 3 Power take-off ( PTO)
- Cast iron gearbox housing
- Input shaft arranged for flexible coupling
- Hydraulic operated multi-plate clutch with soft-valve for secure and soft engagement
- Gearwheels with hardened and ground helical teeth for silent operation
- Common oil system for lubrication, clutch and pitch servo
- Bearings of roller type with a low friction losses and long lifetime
- Spherical roller thrust bearing with low friction losses and long lifetime
- Output shaft with flange arrangement for connection to propeller shaft
- Servo system for pitch adjustment built into the gearbox

This used  Finnoy gear have when new been fitted to Caterpillar 3508B engine with output rating  783 kw @ 1600 rpm.

- - Identification/number plate is missing. All information/Technical data is based on  information received from manufacturer.
