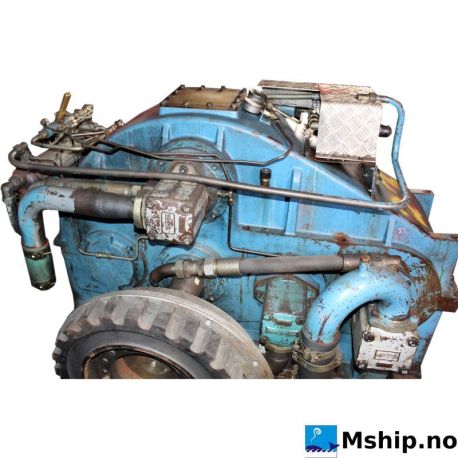

Hytek FCG 340 gear https://mship.no View larger
Previous Next

Hytek FCG 340 PTO gearbox

8288-g529

Used

Hytek FCG 340 PTO gearbox

More details

  • Click HERE for more information

    • Product Request:

    Hytek FCG 340 PTO gearbox

    Hytek FCG 340 PTO gearbox

    Hytek FCG 340 PTO gearbox

    do not include special characters

    * Required fields

    Cancel

    Data sheet

    Manufacturer HYTEK
    Model FCG-340-750HC
    Serial number 1995.44
    Year 1995
    HP 720
    kW 530
    RPM 660 / 1500 / 322
    Other See drawing for download at bottom of this page
    Class DNV
    Drawing number 2.017.1.021
    Rotation direction CW - Clockwise seen towards input shaft gearbox
    Gear ratio 1:2.27 / 1:2.05 (Step up)

    More info

    Hytek FCG 340 PTO gearbox.

    Gearbox suitable for operation of up to 8 pumps, with built in clutch.
    The gearbox can also operate generator, fan or compressor.
    Max. torque input shaft 16 kNm.

    Pumps fitted:

    • 1 x Vickers 45V60A 1C 10  - 120 hp / 89 kW
    • 2 x Vickers 35V                 -   75 hp / 56 kW

    Download

    HytekFCG340 PTOgearbox-DWG1.pdf

    Hytek FCG 340 PTO gearbox drawing

    Download (2.23M)
