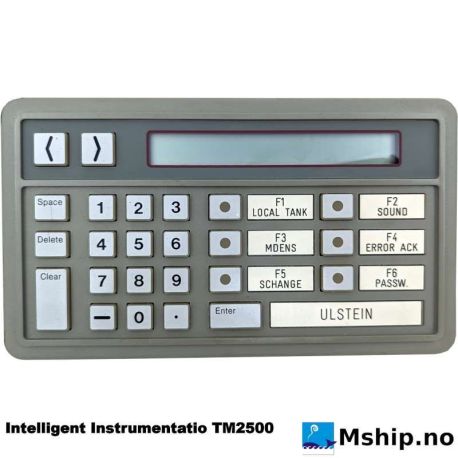

    Intelligent Instrumentation TM2500

    The TM2500 are a compact, rugged, industrial data entry and display terminal.
    It intended for use as operator panel and as service/setup panel in microprocessor based equipment.
    TM2500 has an RS-232-C communications interface

        • Liquid Crystal 5×7 Dot Matrix with Cursor
        • 16 character display
        • Character-height: 9.66mm (0.380")
        • 80 character display buffer
        • Display can flash or blank
        • 3 cursor font options


        Silicon rubber elastomer
        24 keys
        Can withstand a million operations and 135g of actuation force
        Travel: 0.03"

    Communications Interface

        TM2500: RS-232-C
        Transmission: serial asynchronous
        Code: ASCII
        Baud rate: 300, 1200, or 9600 (user selectable)
        Protocol: character mode (XON/XOFF), block mode, and multiple block mode
        Max block length: 80 characters input, 16 characters output
        Max multidrop: 32 units/lines
        DE-9S (communications), DE-9P mating Molex 5219 series (power)

    Power Requirement
        Type: external
        Voltage: +5Vdc+-5% or +7.5Vdc to +12Vdc
        Current – TM2500: 250mA max
        Connector: Molex 5219 Series
